PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells

PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells
PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells

Large Image :  PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001 : 2015
Model Number: 1 / 4 '' OD x 0.049 '' WT
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters

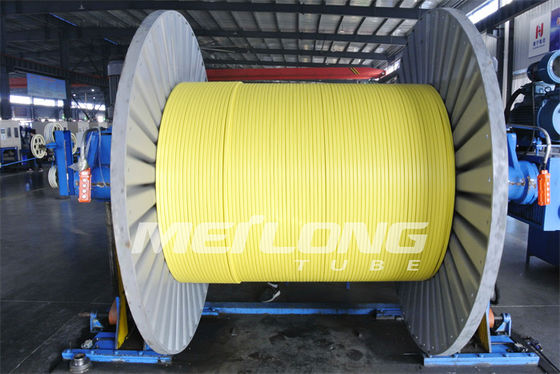

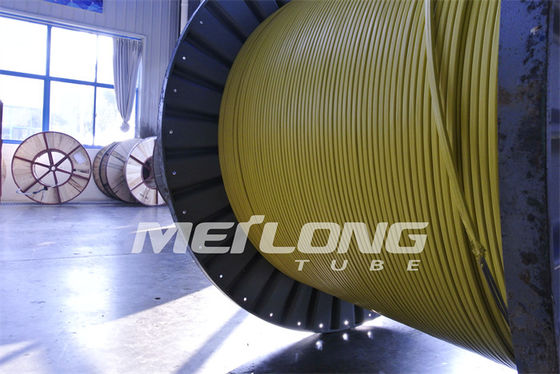

Packaging Details: Level wound coiled on spools/drums, and packed in wooden cases
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100 metric tons per month (including duplex steel tubing, nickel alloy tubing)

PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells

Description
Alloy: TP316L, UNS S31603 Surface: Clean And Bright
Condition: Annealed Properties: Enhanced Tensile And Yield
Feature: High Pressure Tubing Application: Down Hole Hydraulic Control In Oil And Gas Wells
Standard: ASTM A269 Size: Tight Dimensional Tolerances
Application Standard: NACE MR0175 / ISO15156 Test: 100% Length Is Hydraulic Tested
High Light:

PVDF Encapsulated ss capillary tube

,

ss capillary tube UNS S31603

,

stainless steel tubing coil 3 4 oem

PVDF Encapsulated Control Line Flatpack for Subsurface Application in Oil and Gas Wells



Meilong Tube manufactures either welded or seamless hydraulic control lines for subsurface applications. Hydraulic control line is available in mainly five materials, varying wall thicknesses, and a wide range of working pressure ratings. The line is supplied on spools to exact length requirements. Upon request, it is pressure tested hydraulically, purged with nitrogen gas, or clean oil liquid, and sealed on both ends prior to shipping.



Welded hydraulic control line is floating plug drawn to ASTM specifications and is available in any length. Material types for hydraulic control lines include stainless steel TP316L which is suitable for sweet to moderately corrosive environments, Duplex stainless steel 2205, Super Duplex stainless steel 2507, nickel alloy Incoloy 825 and Inconel 625 are suitable for severely corrosive environments and high working pressures and temperatures. Control system fluids must be compatible with the environments and operating temperatures of the control line.



Control line encapsulation also is available, where requested, to provide additional crush and abrasion resistance during installation. The encapsulation material should be matched for compatibility with well fluids and temperature requirements.

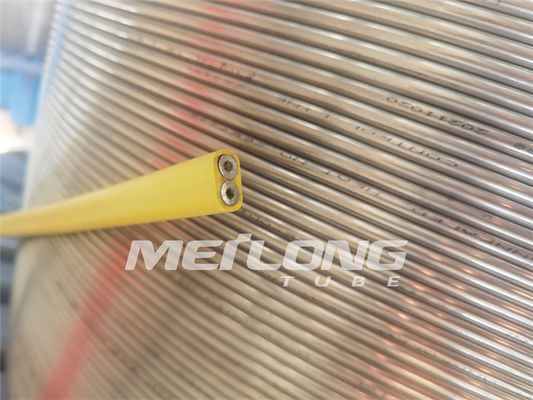

Encapsulated Control Line Flatpack



Encapsulation is a plastic that is extruded over metal tube. Encapsulation prevents damage to the metal tubes during the manufacturing process. The encapsulation also provides additional abrasion resistance and is required if cable protectors are installed to enhance the holding force over each production tubing connection.



Encapsulations are available in a wide range of configurations with options of single pass encapsulation and dual pass encapsulation for added protection.



Application of Flatpack



Flatpacks are commonly used when several different lines are terminated at approximately the same depth in the well.

Common applications include intelligent well systems, deep-set chemical injection lines with downhole gauge cable and safety valve lines with shallow set chemical injection lines. For some applications bumper bars are also encapsulated into the flatpack to provide additional crush resistance.



Standard & Approvals



Control Lines are manufactured according to applicable ASTM standards for each specific material.

Tubes can be supplied flushed, filled, and filtered per client requirements and to the appropriate NAS/SAE standards.



Quality & Testing



- Manufactured in accordance with Standard Inspection and Quality Plans



Design & Construction



- Encapsulation for single line

- Encapsulation profiles to suit customer application

- Custom Line Marking

- Full range of application materials



Encapsulation Materials



- PP (Polypropylene) /TPR (Santoprene) / PA

(Nylon) / PVDF / ETFE (Tefzel) / ECTFE (Halar)

FEP / PFA / ECA 3000



Features of Encapsulated Control Line Flatpack



Maximize protection of downhole line

Increase crush resistance during installation

Protect control line against abrasion and pinching

Eliminate long term stress corrosion failure of control line

Improve clamping profile

Single or multiple encapsulation for ease of running and added protection



Available Alloy Grades for Control Line Tubing Inside Encapsulation



Austenitic: 316L
Duplex:

S31803/S32205

S32750

Nickel alloy:

N08825

N06625



Chemical Composition of TP316L



Carbon Manganese Phosphorus Sulfur Silicon Nickel Chromium Molybdenum
% % % % % % % %
max. max. max. max. max.
0.035 2.00 0.045 0.030 1.00 10.0-15.0 16.0-18.0 2.00-3.00



Norm Equivalence



Grade UNS No Euro norm Japanese
No Name JIS
Alloy ASTM/ASME EN10216-5 EN10216-5 JIS G3463
316L S31603 1.4404, 1.4435 X2CrNiMo17-12-2 SUS316LTB



TP316L is an austenitic chromium-nickel stainless steel with molybdenum and a low carbon content.



Corrosion Resistance



Organic acids at high concentrations and moderate temperatures



Inorganic acids, e.g. phosphoric and sulphuric acids, at moderate concentrations and temperatures. The steel can also be used in sulphuric acid of concentrations above 90% at low temperature.



Salt solutions, e.g. sulphates, sulphides and sulphites



Caustic environments

Austenitic steels are susceptible to stress corrosion cracking. This may occur at temperatures above about 60°C (140°F) if the steel is subjected to tensile stresses and at the same time comes into contact with certain solutions, particularly those containing chlorides. Such service conditions should therefore be avoided. Conditions when plants are shut down must also be considered, as the condensates which are then formed can develop conditions that lead to both stress corrosion cracking and pitting.

TP316L has a low carbon content and therefore better resistance to intergranular corrosion than steels of type TP316.



Standard Flatpack Encapsulation Profiles



Round, Single Line Item Standard Dimensions
PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells 0 1/8’’ OD Line 0.250’’ (6.35 mm) Dia.
1/4’’ OD Line 0.433’’ (11.0 mm) Dia.
3/8’’ OD Line 0.535’’ (13.6 mm) Dia.
1/2’’ OD Line 0.660’’ (16.8 mm) Dia.





Square, Single Line Item Standard Dimensions
PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells 1 1/8’’ OD Line 0.250’’ x 0.250’’ (6.35 mm x 6.35 mm)
1/4’’ OD Line 0.433’’ x 0.433’’ (11.0 mm x 11.0 mm)
3/8’’ OD Line 0.535’’ x 0.535’’ (13.6 mm x 13.6 mm)
1/2’’ OD Line 0.660’’ x 0.660’’ (16.8 mm x 16.8 mm)





Rectangular, 2 Lines Item Standard Dimensions
PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells 2 1/4’’ OD Line

Width: 0.710’’ (18.0 mm)

Height: 0.410’’ (10.4 mm)





Rectangular, 3 Lines Item Standard Dimensions
PVDF Encapsulated Ss Capillary Tube Control Line Flatpack For Oil And Gas Wells 3 1/4’’ OD Line

Width: 0.990’’ (25.1 mm)

Height: 0.410’’ (10.4 mm)
