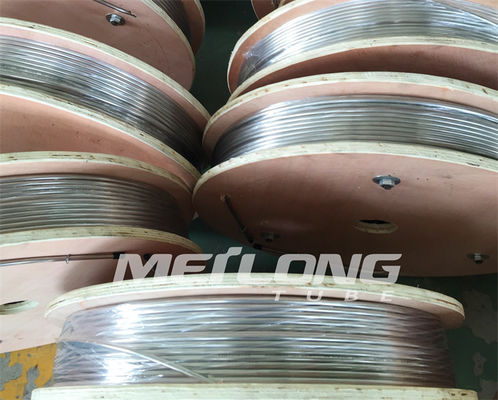

Gas Industry Steel Tube Coil Control Line UNS S31603 High Pressure Capillary Tubing

Stainless Steel Control Line Tubing For Down Hole Application In Oil And Gas Industry Annealing

Product Description:

downhole control lines offer a reliable solution for communication in oil, gas, and water-injection wells. They are characterized by their incredible durability and the ability to perform even in the harshest conditions. These lines can be customized for use in different applications, making them versatile and accommodating for different downhole components. The selection of materials is based on a number of factors, including bottomhole temperature, tensile and tear strength, water absorption, and chemical resistance. Meilong Tube has been thoroughly testing the control lines for years in order to ensure they are safe to use. Tests have included crush tests and high-pressure autoclave well simulation. In fact, laboratory tests have shown that the lines are capable of withstanding an increased load, even if wire-strand "bumper wires" are used.

Features:

Control lines are delivered in lengths up to 40,000 ft (12,192 m) which are free from orbital welding, in order to increase resilience.
Various single, double and triple flat-pack options are available. These flat-pack components can be supplemented by downhole electrical cables and/or bumper wires for convenient operations and deployment.
Using the welded-and-plug-drawn production method, a nice smooth round tube is achieved, enabling long lasting metal seals of the terminations.
To guarantee endurance and reliability, encapsulation materials are tailored to fit different well conditions.



Technical Parameters:

Our stainless steel 316L tubing is seamless and floating internal plug redrawn. It is supplied in an annealed condition and comes in continuous lengths without orbital joint welds. This table shows theoretical burst, collapse and test pressure ratings based on the wall thickness and minimum tensile and yield strengths at 100°F (38°C) under neutral and static conditions.

Alloy	UNS	O.D.	W.T.	Working Pressure	Burst Pressure	Collapse Pressure	Test Pressure
Stainless 316L	S31603	1/8	0.125	0.028	9,931	40,922	9,525	11,600
Stainless 316L	S31603	1/8	0.125	0.035	12,640	52,042	11,056	15,225
Stainless 316L	S31603	1/4	0.250	0.035	5,939	24,474	6,621	7,250
Stainless 316L	S31603	1/4	0.250	0.049	8,572	35,322	8,632	10,150
Stainless 316L	S31603	1/4	0.250	0.065	11,694	48,166	10,562	13,775
Stainless 316L	S31603	3/8	0.375	0.035	3,818	15,731	4,659	4,350
Stainless 316L	S31603	3/8	0.375	0.049	5,483	22,575	6,222	6,525
Stainless 316L	S31603	3/8	0.375	0.065	7,517	30,951	7,865	8,700
Stainless 316L	S31603	3/8	0.375	0.083	9,808	40,372	9,551	11,600
Stainless 316L	S31603	1/2	0.500	0.049	4,003	16,480	4,835	5,075
Stainless 316L	S31603	1/2	0.500	0.065	5,461	22,512	6,206	6,525
Stainless 316L	S31603	1/2	0.500	0.083	7,133	29,364	7,648	8,700
Stainless 316L	S31603	5/8	0.625	0.049	3,144	12,955	3,957	3,625
Stainless 316L	S31603	5/8	0.625	0.065	4,285	17,630	5,105	5,075
Stainless 316L	S31603	5/8	0.625	0.083	5,472	22,513	6,519	6,525
Stainless 316L	S31603	3/4	0.750	0.049	2,619	10,791	3,296	2,900
Stainless 316L	S31603	3/4	0.750	0.065	3,570	14,686	4,283	4,350
Stainless 316L	S31603	3/4	0.750	0.083	4,558	18,753	5,431	5,800



Applications:

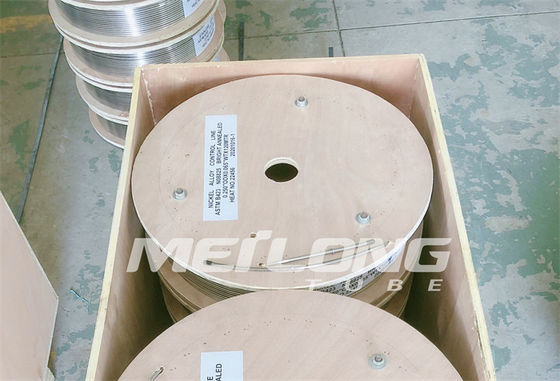

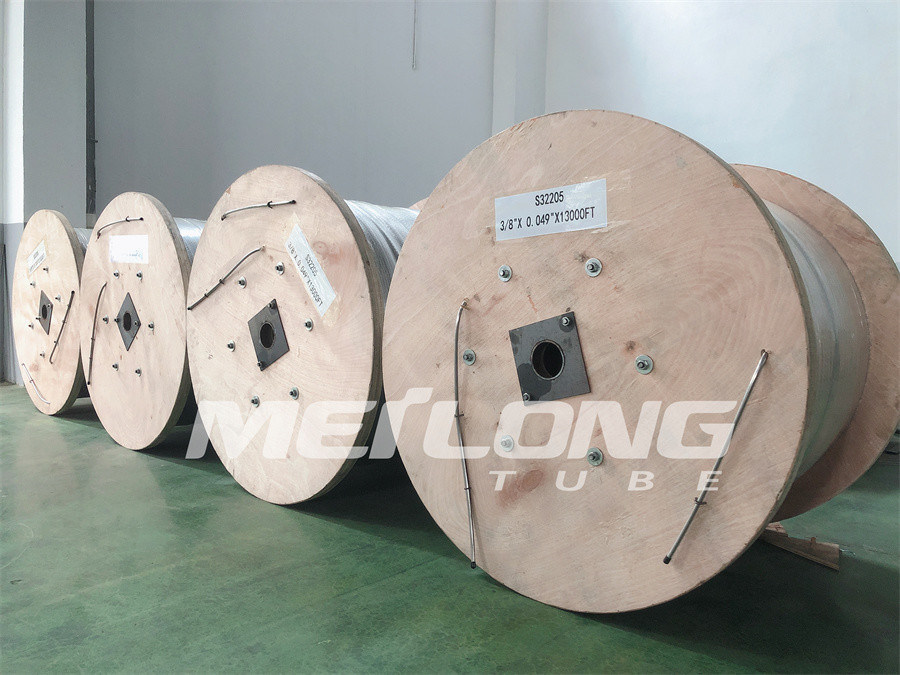

Control Line Tubing, produced by Meilong Tube, is a high quality stainless steel product used in the down hole application in the oil and gas industry. With its Model Number of 1/4''OD x 0.065''WT, Control Line Tubing is certified according to ISO9001 and comes with a minimum order quantity of 1 coil. The Control Line Tubing is packed in a wooden case and is ready for shipping within seven days. Payment can be done through T/T or L/C, and the supply ability is 150 metric tons per month. The standard for Control Line Tubing is ASTM A269. After annealing, the surface of the Control Line Tubing will be high clean and bright.



Customization:



Support and Services:

Our Control Line Tubing provides technical support and service for customers using this product. Our team of experts have extensive knowledge and experience in this area. We are available to answer any questions you may have about installation, use, troubleshooting, or any other related topics.
We also provide training and consulting services to help you optimize the use of your Control Line Tubing. Our professionals are available to provide personalized advice and guidance on how to best utilize your product.
If you experience any issues with your Control Line Tubing, our team is available to troubleshoot and provide guidance to address the issue. We are committed to providing the best customer service and support possible to ensure your satisfaction.
