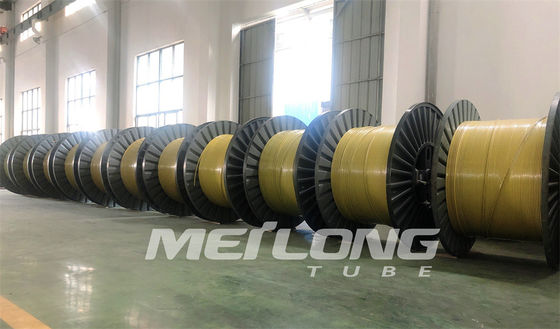

Rectangular Round Encapsulated Chemical Injection Line 3 8 Stainless Steel Coil

Round and Rectangular Encapsulated Control Line with Highly Clean and Bright Tubing Surface for Enhanced Mechanical Prop

Product Description:

MEILONG offers the encapsulation of control lines to provide increased durability, as well as chemical and corrosion resistance to meet each project’s specialized requirements. Our encapsulation types range from HDPE (High Density Polyethylene), Santoprene, PVC (Polyvinyl Chloride), Haylar and PVDF (Polyvinylidene Fluoride).

Encapsulation is a process where a plastic material is extruded over metal tube. It prevents any damage that can occur to the metal tubes during the manufacturing process, while also providing extra abrasion resistance. If cable protectors are needed, encapsulation is required in order to maximize the holding of each tubing connection.

Flatpacks are used when multiple lines are terminated at the same depth in the well. This solution is especially useful for intelligent well systems, deep-set chemical injection lines with downhole gauge cable, and safety valve lines with shallow set chemical injection lines. Our flatpacks also support the use of bumper bars to ensure extra crush resistance.

All our control lines and tubes are manufactured to ASTM standards for the specific material. We also provide flushed, filled, and filtered tubes according to client demands and NAS/SAE standards.

Features:

Downhole line protection is an essential part of any well-maintained installation. Enhancing protection of the downhole line can achieve many benefits. First, increased crush resistance during installation can help protect the downhole line from damage. Second, the use of protective devices, such as control line sleeves, can guard against abrasive forces and prevent pinching. Third, elimination of stress corrosion in the control line is an important part of long-term maintenance. Finally, improved clamping profiles can also help protect the downhole line’s integrity.

In addition to these methods of protection, there is another way to maximize downhole line protection: encapsulation. This type of protection can come in single or multiple forms, providing ease of running and added protection. Such encapsulation can also give flexibility in control line routing and improve damage resistance.

Technical Parameters:

Applications:

We provide a full range of services including design, construction and servicing for down hole tubes, subsea umbilicals, process constructions, general control systems, steam supply lines, gas transport lines, and instrumentation.

For down hole tubes, our experienced engineers use advanced machining and welding technology to design and construct tubes of strong build and impeccable precision. Our subsea umbilical’s are based on established marine and umbilical technology and are manufactured to withstand harsh conditions offshore.

Our process constructions are designed with the highest safety standards in mind and using top of the line materials to guarantee high-level performance even in the harshest operating environments. We also offer general control systems, steam supply lines, and gas transport lines that are tailored to the needs of customers, presenting a range of designs, and materials from which to pick.

Lastly, our range of instrumentation products passes through stringent quality control processes before being released for operations to ensure the highest level of precision and accuracy.

Customization:

Welcome to Meilong Tube, your reliable partner for TPV Encapsulated Control Line.

We are offering 3/8''OD x 0.049''WT Encapsulated Control Line with the following attributes: Brand Name - Meilong Tube, Model Number - 3/8''OD x 0.049''WT, Place of Origin - China, Certification - ISO9001, Minimum Order Quantity - 2 coils, Packaging Details - Wooden case, Delivery Time - In 7 days, Payment Terms - T/T, L/C, Supply Ability - 150 metric tons per month, Tubing Surface - Higly Clean And Bright, Use Purpose - Hydraulic Control And Chemical Injection, Tubing Size - Close Dimensional Tolerance, Tubing Feature - Enhanced Mechanical Properties, Encapsulation Color - Yellow, Black, Red.

Our PP Encapsulated Injection Line features excellent UV protection, flex fatigue resistance, and abrasion resistance. It is an ideal solution for high pressure control and chemical injection applications.

Contact us for more information about our Encapsulated Control Line and how to place your order.

Support and Services:

Encapsulated Control Line provides technical support and service for its products and services. Our technical support and service team is available 24/7 to answer questions, troubleshoot issues, and provide assistance to customers. We offer services to help customers optimize their use of our products, and to ensure that they are running smoothly and efficiently.

Our technical support and service team can assist customers with a variety of topics, including installation, product updates, maintenance, and more. We also provide training and tutorials to help customers get the most out of their Encapsulated Control Line products.

If you have any questions or need assistance with our products and services, please don't hesitate to contact our technical support and service team. We are here to help you get the most out of Encapsulated Control Line.
