1/8'' To 1'' Encapsulated Control Line High Pressure Capillary Tubing For Hydraulic Control

Enhanced Mechanical Properties Tubing for Hydraulic Control and Chemical Injection

Product Description:

The encapsulation of downhole components such as Hydraulic Control Lines, Single Line Encapsulation, Dual-Line Encapsulation (FLATPACK), and Triple-Line Encapsulation (FLATPACK) has become prevalent in downhole applications. The overlaying of plastic provides several benefits that help to ensure a successful completion.

Encapsulation provides a protective layer to keep the lines from being scratched, dented, and possibly crushed while running in hole. Encapsulation of several components (Flat Pack) provides a consolidation that will help reduce equipment and personnel that is needed to deploy multiple single components. In many cases, a flat pack is mandatory as rig space can be limited.

Encapsulation also keeps from metal to metal contact and can provide protection to underlying components while in hole such as lines that can be across a sand face or possibly in contact with a high rate of gas.

Free of orbital welds, Hydraulic Control Lines depending on the length of the application are subjected to raw materials. Orbital welds have become unnecessary in our industry as well completions are often greater than the standard yield of a mill produced coil. Our seam-welded tubing production uses Tungsten Inert Gas (TIG) welding machines and laser beam welding machines. This process gives the operator the tools to perform a repeatable, high-quality weld. Our current equipment, together with cold-drawing machines allow us to produce OD Size ranges of 1/8” – 1” and Wall Thicknesses of 0.028” -0.095”. Common alloys for tubing products are 316L, Duplex 2205, Super Duplex 2507, Incoloy 825, and Inconel 625.

Features:

Downhole lines can be maximized for protection by improving the long-term stress corrosion failure that the control lines are especially prone to. By increasing crush resistance during installation, protection against abrasion and pinching can be assured. Further protection can be gained by applying a clamping profile during installation. Finally, multiple encapsulation can be used for ease of running as well as added protection.

Technical Parameters:

Applications:

The oil and gas industry often require a variety of elements used in the construction and operation of their plants and facilities in order to process and transport the raw materials necessary for their operations. This includes down hole tubes for drilling and collecting oil and gas down in the ground, subsea umbilical's for safely connecting oil and gas platforms and pipelines to the main distant locations, various process constructions in order to store the oil and gas and to prepare them for further use, making sure it is as efficient as possible. Not only that, but general control systems are put in place in order to have a centralized monitoring system for all processes, as well as steam supply lines and gas transport lines for moving the oil and gas to the necessary locations, and finally instrumentation to provide data about the processes as needed.

Customization:

Brand Name: Meilong Tube
Model Number: 3/8''OD x 0.049''WT
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 2 coils
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

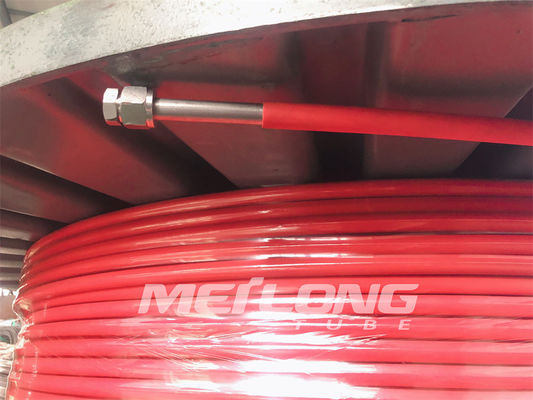

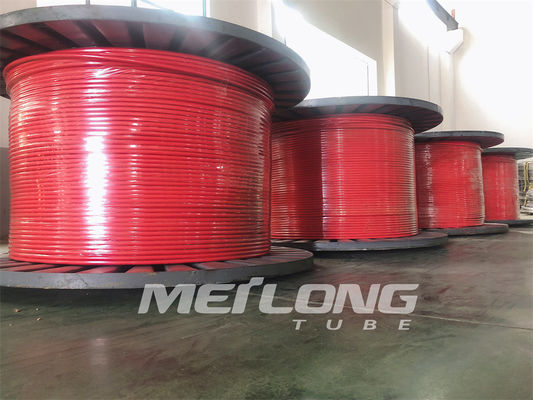

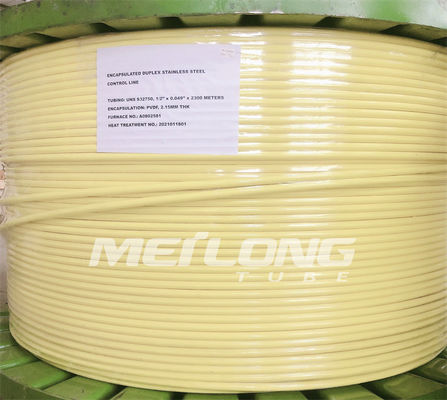

We offer custom-made PP and TPV encapsulated control lines. Our tubing is highly clean and bright, and has enhanced mechanical properties. The tubing size has close dimensional tolerance. The encapsulated sections are available in both round and rectangular shapes, in a variety of colors including yellow, black, and red.

Support and Services:

At Encapsulated Control Line, we offer comprehensive technical support and service to ensure that our customers get the best out of their product. Our team of experienced technicians are on hand to provide assistance and advice on the use and maintenance of your product.

Our team of experienced technicians are available to answer any technical questions you may have. Whether you need help troubleshooting an issue or advice on how to optimally use your product, our technicians can provide the answers you need.

Our team of technicians can provide regular maintenance and servicing of your product. We offer a range of services, from simple cleaning and lubrication to more complex repairs. We can also provide advice on the best ways to maintain and store your product to ensure it continues to perform optimally.

Our customer service team is available to answer any product-related questions you may have. From advice on the best way to use your product to guidance on ordering and returns, our team of experienced customer service agents is always on hand to help.
