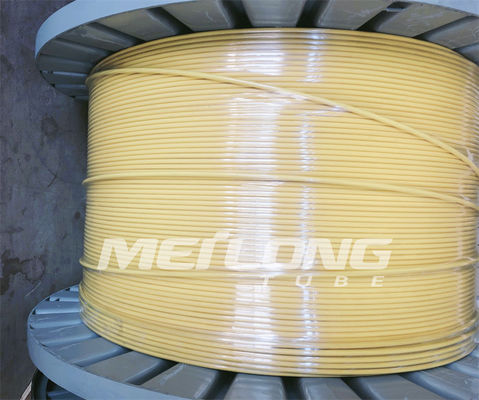

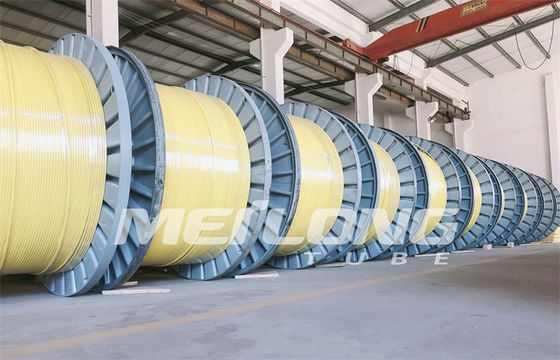

PVDF 12000M Encapsulated Control Line Round Rectangular Capillary Coiled Tubing

PVDF Encapsulated Injection Line with Round and Rectangular Encapsulation Section and 100% Length Eddy Current Tested

Product Description:

Encapsulation is a plastic that is extruded over metal tube. It prevents damage to the metal tubes during the manufacturing process. Additionally, it provides additional abrasion resistance and is required if cable protectors are installed to enhance the holding force over each production tubing connection. MEILONG offers a wide range of configurations for encapsulation. Options include single pass encapsulation and dual pass encapsulation for added protection.

The flatpacks are commonly used when several different lines are terminated at approximately the same depth in the well. The applications of flatpacks include intelligent well systems, deep-set chemical injection lines with downhole gauge cable and safety valve lines with shallow set chemical injection lines. For some applications bumper bars are also encapsulated into the flatpack to provide additional crush resistance.

Control Lines manufactured according to applicable ASTM standards for each specific material. Tubes can be supplied flushed, filled, and filtered per client requirements and to the appropriate NAS/SAE standards.

Features:

In order to maximize the protection of downhole line, it is vital to increase its crush resistance during the installation process. Additionally, it is important to protect the control line from abrasion or pinching. Furthermore, it is necessary to eliminate long term stress corrosion failure of control line. To achieve this, the clamping profile must be improved. This can be done by introducing single or multiple encapsulations, which in turn offer ease of running and added protection.

Technical Parameters:

Applications:

We provide down hole tubes for our clients used in oil and gas exploration. High quality tubing manufactured to provide reliable and secure operation for the customer.

Detail engineering for our umbilical’s products, meeting accredited standards for a range of existing platforms. Variety of sizes and styles of umbilical’s, depending on the specific application.

Our processing constructions have been designed to assist clients to convert natural resources into a range of products. We tailor our constructions for each specific application to ensure a reliable and efficient operation.

We can design and manufacture a range of control systems for clients including general control systems, steam supply lines, and gas transport lines.

High quality instrumentation used as part of our control systems. Monitoring of a variety of process variables in real-time, displaying a range of readings for operational personnel.

Customization:

Meilong Tube 3/8''OD x 0.049''WT Encapsulated Control Line

• Brand Name: Meilong Tube
• Model Number: 3/8''OD x 0.049''WT
• Place of Origin: China
• Certification: ISO9001
• Minimum Order Quantity: 2 coils
• Packaging Details: Wooden case
• Delivery Time: In 7 days
• Payment Terms: T/T, L/C
• Supply Ability: 150 metric tons per month
• Length: Up To 12000 Meters
• Encapsulation Section: Round And Rectangular
• Connection type: Ferrule Fittings
• Encapsulation Material: TPV, PVC, PVDF, PP, FEP
• Tubing Size: Close Dimensional Tolerance

Meilong Tube provides a wide variety of TPV, PVC, PVDF, PP and FEP encapsulated control lines with 3/8''OD x 0.049''WT for chemical injection and control applications. Our encapsulated control lines meet ISO9001 certification and have a minimum order quantity of 2 coils. The length of the control lines can reach up to 12000 meters. The encapsulated section can be round or rectangular, and the connection type can be ferrule fittings. Our close dimensional tolerance tubing size ensures reliable performance.

We provide our customers with timely delivery within 7 days and accept payment terms of T/T and L/C. Our monthly supply ability is 150 metric tons. All our control lines are packaged in wooden cases for secure shipping.

Support and Services:

Encapsulated Control Line provides technical support and services to its customers. Our technical support team is available 24x7 to help customers solve any technical issues they may have with our products. We provide assistance with installation, configuration, usage, and troubleshooting. Our services also include product updates, customization, and integration with other systems.

We strive to provide our customers with the highest levels of customer service. Our team of experienced professionals are committed to providing timely and accurate responses to customer inquiries. We offer both online and phone support to ensure that our customers have the best possible experience with our products.

At Encapsulated Control Line, we believe that customer satisfaction is the key to success. We are committed to providing quality products and services that meet our customers’ needs. If you have any questions or need assistance, please don’t hesitate to contact us.
