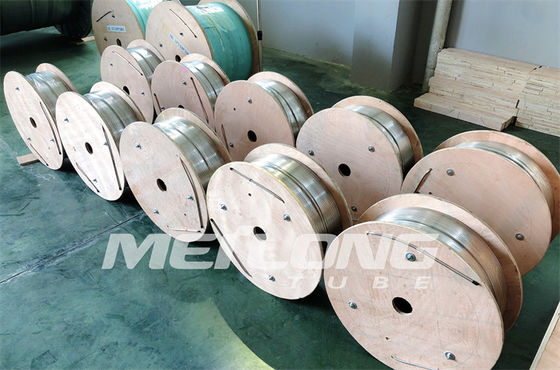

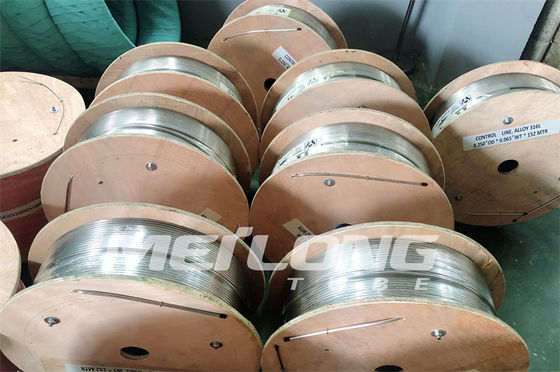

Annealed Capillary Line Without Orbital Welds for Continuous Length
Product Description:
Meilong Tube has taken immense strides in the tube manufacturing world. It has brought in new exciting technological advances, including increasing the overall length of tubing produced without orbital welds. Additionally, Meilong Tube was the first to introduce the Tube Encapsulated Conductors (TEC) to the oil and gas industry.
The company has comprised a formidable team of seasoned professionals from the industry. All the team members, professionals from different specialties, are united by their commitment to exemplary quality and customer satisfaction. Collectively, these professionals boast experience worth tens of years in the tubing manufacturing world. Through their aptitude, it's ensured that customers receive nothing but custom, high-quality solutions.
Meilong Tube takes it customers' satisfaction as its topmost priority. Everything - from high-quality standards of its products, to the ease with which customers can do business with it - is designed to meet, and even exceed, customers' expectations.
Gauging it's products for quality assurance, Meilong Tube has implemented various tests - Chemical, Corrosion, Dimensional, Eddy-current, Hydrostatic, Elongation, Hardness, Flare, Flatten, Grain size, Metallurgical, Positive material identification (PMI), Surface roughness, Tensile, and Yield.
Features:
We offer various kinds of alloy tubing for many types of applications such as hydraulic control, chemical injection, chloride pitting/crevice corrosion resistance, H2S/CO2 resistance as well as providing resistance to chloride stress corrosion cracking. The specifications for the various types of alloy tubing include:
Stainless 316L – 170 MPa min. yield strength with seamless-welded pressure tubing up to standards UNS S31603 or ASTM A269.
Duplex 2205 – 485 MPa min. yield strength with seamless-welded pressure tubing up to standards UNS S32205 or ASTM A789.
Duplex 2507 – 550 MPa min. yield strength with seamless-welded pressure tubing up to standards UNS S32750 or ASTM A789.
Incoloy 825 – 240 MPa min. yield strength with seamless-welded pressure tubing up to standards UNS N08825 or ASTM B704.
Inconel 625 – 414 MPa min. yield strength with seamless-welded pressure tubing up to standards UNS N06625 or ASTM B704.
Technical Parameters:
The following data details the weight per meter of capillary line tubing for duplex 2507 (UNS S32750). Weight is given in kilograms.
Capillary Line Tubing Weight per Meter (kg)
Duplex 2507 (UNS S32750)
| O.D. |
W.T. |
Fraction |
Decimal |
0.028 |
0.035 |
0.049 |
0.065 |
0.083 |
| 1/8 |
0.125 |
0.0438 |
0.0507 |
- |
- |
- |
| 1/4 |
0.250 |
0.1002 |
0.1213 |
0.1587 |
0.197 |
0.2232 |
| 3/8 |
0.375 |
0.1565 |
0.1917 |
0.2572 |
0.3246 |
0.3904 |
| 1/2 |
0.500 |
0.2129 |
0.2621 |
0.3559 |
0.4554 |
0.5575 |
| 5/8 |
0.625 |
0.2693 |
0.3327 |
0.4547 |
0.5864 |
0.7246 |
| 3/4 |
0.750 |
0.3256 |
0.4031 |
0.5532 |
0.7172 |
0.8916 |
The following table provides the imperial and metric sizes of the capillary line tubing.
Capillary Line Tubing Size
| Imperial size |
Metric size |
OD |
inch |
WT |
inch |
OD |
mm |
WT |
mm |
| 1/8 (0.125) |
0.028 |
3.18 |
0.71 |
0.035 |
3.18 |
0.89 |
| 3/16 (0.188) |
0.028 |
4.76 |
0.71 |
0.035 |
4.76 |
0.89 |
0.049 |
4.76 |
1.24 |
| 1/4 (0.250) |
0.035 |
6.35 |
0.89 |
0.049 |
6.35 |
1.24 |
0.065 |
6.35 |
1.65 |
0.083 |
6.35 |
2.11 |
| 3/8 (0.375) |
0.035 |
9.53 |
0.89 |
0.049 |
9.53 |
1.24 |
0.065 |
9.53 |
1.65 |
0.083 |
9.53 |
2.11 |
| 1/2 (0.500) |
0.035 |
12.7 |
0.89 |
0.049 |
12.7 |
1.24 |
0.065 |
12.7 |
1.65 |
0.083 |
12.7 |
2.11 |
| 5/8 (0.625) |
0.035 |
15.8 |
0.89 |
0.049 |
15.8 |
1.24 |
0.065 |
15.8 |
1.65 |
0.083 |
15.8 |
2.11 |
| 3/4 (0.750) |
0.035 |
19.1 |
0.89 |
0.049 |
19.05 |
1.24 |
0.065 |
19.05 |
1.65 |
0.083 |
19.05 |
2.11 |
Applications:
A safety valve is an indispensable valve to protect your equipment. It is installed in the pressure vessels and can be triggered to actuate when the pressure of the inlet side reaches a pre-set level, releasing the fluid and avoiding damages to your facility. More importantly, it serves as a fail-safe system in case of any system failure on the surface.
Subsurface safety valve (SSSV) is a device that provides emergency closure capability. It is connected to the wellbore by the stainless steel control line which is attached to the outside of the tubing string. Depending on the wellhead pressure, the control line may need to keep as high as 10,000 psi to keep the valve open.
Apart from SSSV, more such valves make sure that your facilities are executing optimal safety and can be used in the applications like chemical injection, subsea safety valves, velocity strings, work strings, steel tube umbilicals and geothermal coiled alloy tubing.
Customization:
Customized Capillary Line Injection Line Services
We offer customized Capillary Line Injection Line services. Our Brand Name is Meilong Tube, with Model Number 1/4''OD x 0.049''WT. We are ISO9001 certified and our Minimum Order Quantity is 1 coil. Our Packaging Details is Wooden case. We guarantee Delivery Time in 7 days and Payment Terms can be T/T or L/C. Our Supply Ability is 150 metric tons per month and Condition is Annealed. Our NDT is Eddy Current Tested and Surface is Highly Clean And Bright. Our Length can reach Up To 12000 Meters and Standard is ASTM A269, ASTM A789, ASTM B423. Our Capillary Line Injection Line, Hydraulic Capillary Line, and Capillary Line Chemical Injection Line services are reliable and trustworthy.
Support and Services:
Capillary Line Technical Support and Service
At Capillary Line, we are committed to providing our customers with excellent technical support and service. Our team of highly-trained professionals is available 24/7 to answer inquiries and help address any issues you may be experiencing. We offer a wide range of services, including:
- Technical troubleshooting and assistance
- Software updates and upgrades
- Hardware installation and maintenance
- Accessibility and compatibility testing
- Customer service and support
If you have any questions or concerns, please don't hesitate to contact us. We look forward to helping you get the most out of your Capillary Line product.
Packing and Shipping:
Packaging and shipping for Capillary Line is done using specialized packaging materials, including:
- Bubble wrap
- Anti-static foam
- Static shielding bags
- Shipping boxes
These materials are designed to protect the product from damage during transport and ensure that it arrives in perfect condition.
