10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection

10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection
10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection 10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection 10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection

Large Image :  10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001
Model Number: 1/4''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil

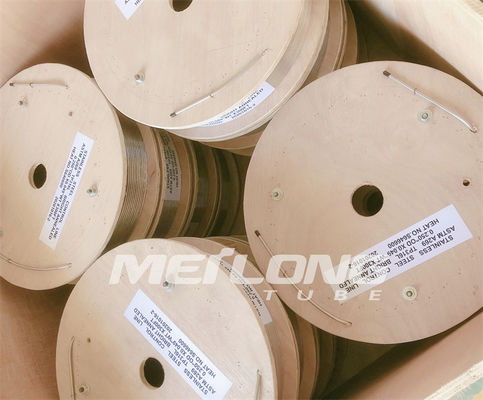

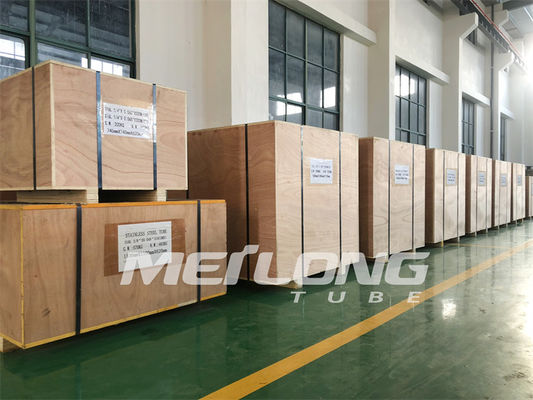

Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

10000Psi Stainless Steel Capillary Line Tube For Hydraulic Control And Chemical Injection

Description
Size: Tight Dimensional Tolerance Feature: Controlled Ovality And Eccentricity
Pressure Test: Hydrostatic Tested Surface: Highly Clean And Bright
Working Pressure: Above 10000 Psi Use Purpose: Hydraulic Control And Chemical Injection
Standard: ASTM A269, ASTM A789, ASTM B423 Application: Down Hole Application In Oil And Gas Industry
High Light:

10000Psi Capillary Line

,

Capillary Line ASTM A269

,

10000Psi stainless steel capillary tube

High Precision Stainless Steel Capillary Line for Hydraulic Control and Chemical Injection Up to 12000 Meters with Tight

Product Description:

Meilong Tube: A Commitment to Quality and Customer Satisfaction

Meilong Tube has been advancing the industry by increasing the length of tubing it manufactures without orbital welds, as well as introducing Tube Encapsulated Conductors (TEC) to the oil and gas industry. Our team of experienced professionals have accumulated decades of know-how and put the satisfaction of our customers first.
At Meilong Tube, our goal is to exceed every customer's expectations. We work hard to ensure our products are of the highest quality, make it easy to do business with us, and be responsive to all ways of communication. Our customers are our top priority and we strive to ensure their satisfaction.
We provide exhaustive quality assurance and inspections including:

  • Chemical
  • Corrosion
  • Dimensional
  • Eddy-current
  • Hydrostatic
  • Elongation
  • Hardness
  • Flare
  • Flatten
  • Grain size
  • Metallurgical
  • Positive material identification (PMI)
  • Surface roughness
  • Tensile
  • Yield





Features:

Our company provides a wide variety of alloy tubing for industrial purposes. We offer: stainless 316L, duplex 2205, duplex 2507, incoloy 825, and inconel 625. All of our tubing is seam-welded pressure tubing.
The stainless 316L grade features a minimal yield strength of 170 MPa and is presented in accordance with UNS/ASTM Specification S31603/A269. The duplex 2205 has a minimal yield strength of 485 MPa and is presented in accordance with S32205/A789. The duplex 2507 grade features a minimal yield strength of 550 MPa and is presented in accordance with S32750/A789. Incoloy 825 has a minimal yield strength of 240 MPa and is presented in accordance with N08825/B704. Lastly, inconel 625 has a minimal yield strength of 414 MPa and is presented in accordance with N06625/B704.
Our alloy tubing is designed to resist chloride pitting and crevice corrosion resistance, H2S and CO2, and chloride stress corrosion cracking (SCC). This ensures that our tubing is extremely durable in a variety of harsh industrial conditions.



Technical Parameters:

Weight of Duplex 2507 (UNS S32750) Capillary Line Tubing per Meter

The weight of the capillary line tubing of Duplex 2507 (UNS S32750) per meter varies depending on the imperial and metric size of the tubing.

Imperial Size and Weight per Meter (kg)

OD (inch) WT (inch) Weight (kg)
1/8 (0.125) 0.028 0.0438
  0.035 0.0507
3/16 (0.188) 0.028 0.1002
  0.035 0.1213
  0.049 0.1587
1/4 (0.250) 0.035 0.197
  0.049 0.2232
3/8 (0.375) 0.035 0.3246
  0.049 0.3904
1/2 (0.500) 0.035 0.4554
  0.049 0.5575
5/8 (0.625) 0.035 0.5864
  0.049 0.7246
3/4 (0.750) 0.035 0.7172
  0.049 0.8916

Metric Size and Weight per Meter (kg)

OD (mm) WT (mm) Weight (kg)
3.18 0.71 0.0438
  0.89 0.0507
4.76 0.71 0.1002
  0.89 0.1213
  1.24 0.1587
6.35 0.89 0.197
  1.24 0.2232
9.53 0.89 0.3246
  1.24 0.3904
12.7 0.89 0.4554
  1.24 0.5575
15.9 0.89 0.5864
  1.24 0.7246
19.1 0.89 0.7172
  1.24 0.8916


Applications:

A safety valve is a type of valve that is installed in pressure vessels to prevent damage and prevent potential explosions. These valves actuate automatically when the pressure of the incoming fluid rises above a predetermined limit and then open the disc to release the fluid. Subsurface safety valves (SSSV) provide a means of closure in wells that are capable of natural flow to the surface. It is essential that the flow of the fluids can be isolated in the event of any system malfunction, and the SSSV will help to ensure that this happens. These valves are usually fitted with a ¼” stainless steel control line that runs on the outside of the well tubing string, and must maintain a pressure of up to 10,000 psi, depending on the wellhead pressure, to keep the valve open. As well as safety valves, the SCSSV is also used in other applications such as chemical injection, hydraulic control lines, velocity strings, work strings, steel tube umbilicals, and even geothermal coiled alloy tubing.



Customization:

Meilong Tube provides custom services for 316L Stainless Steel Capillary Line. Our Capillary Line Control Line is certified with ISO9001 and is available with minimum order quantity of 1 coil. It is delivered within 7 days with wooden case packaging. Payment terms are available in T/T, L/C. We have a supply ability of 150 metric tons per month. It is suitable for hydraulic control and chemical injection with working pressure above 10000 PSI. It is annealed and eddy current tested. Our Capillary Line Control Line is made in China.



Support and Services:

Capillary Line Technical Support and Service

Capillary Line provides technical support and service to its customers to ensure the highest level of customer satisfaction. Our team of experienced professionals is available 24/7 to provide assistance and advice on any technical issue. Customer service representatives are available for calls or emails to answer any questions and provide assistance. We also provide a comprehensive Knowledgebase to help customers quickly find answers to their questions.
We provide full technical support for our product, including installation, troubleshooting, and maintenance. Our customer service team is also available to provide technical advice on the use of our products. We also offer training and certification programs to help customers become more familiar with our products and services.
Our team is dedicated to providing the best possible service and support. We strive to provide timely and accurate responses to customer inquiries. We also offer a variety of methods for customers to contact us, including phone, email, and online support forms.



Packing and Shipping:

Packaging and Shipping for Capillary Line:

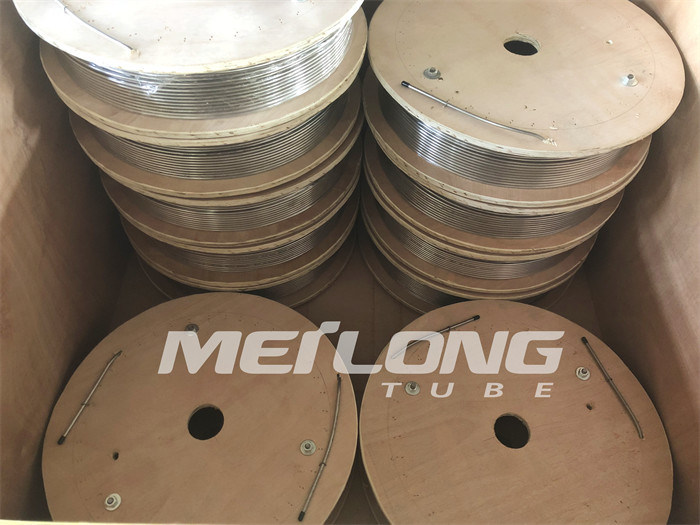

The Capillary Line product will be packaged in layers of protective material to ensure that it is not damaged during transport. It will be placed in a box with the correct size and strength to ensure that it is secure and not exposed to the elements. The box will be properly labeled and marked with the appropriate shipping information and with the Capillary Line product name.
The Capillary Line product will be shipped using a reliable and secure shipping company. The package will be tracked and monitored throughout the entire shipping process, and will be insured in case of any damage or loss. Delivery time will vary depending on the shipping destination.
