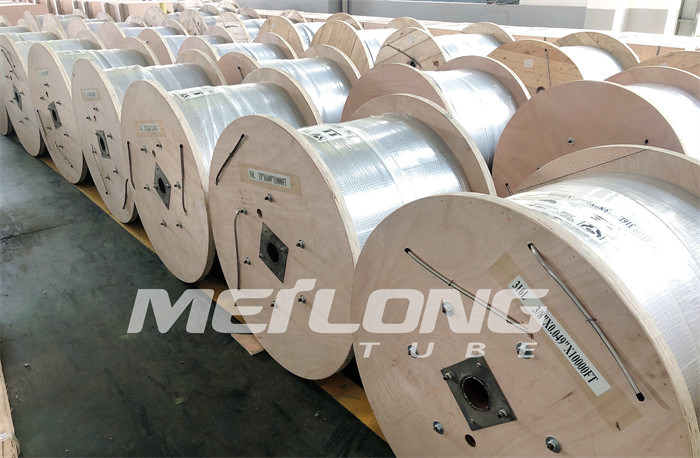

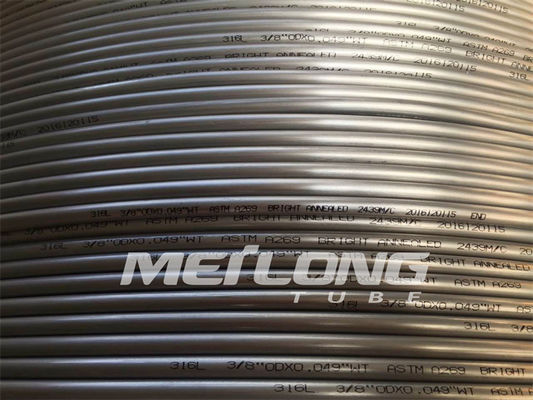

Annealed Stainless Steel Chemical Injection Line Capillary Control Line

Annealed Stainless Steel Capillary Line Control Line

Product Description:

Meilong Tube has always been committed to bringing technological advancements to the industry, setting milestones such as increasing the length of tube manufactured without orbital welds, as well as introducing the Tube Encapsulated Conductors (TEC) to the oil and gas industry. An experienced management team with a proven track record in tube manufacturing and customer-service, forms the foundation if Meilong Tube's success. Not only have they been able to leverage their know-how accumulated in tens of years of experience in the industry, but they also make sure that customers receive tailored, high-quality solutions of their every need. Exceptional quality assurance lies at the heart of all of Meilong Tube’s operations. An extensive list of chemical, corrosion, dimensional, eddy-current, hydrostatic, elongation, hardness, flare, flatten, grain size, metallurgical, Positive material identification (PMI), surface roughness, tensile and yield tests are performed as part of our operations to ensure premium quality that meets or exceed the customer's highest expectations. Meilong Tube's goal is to provide the ultimate customer experience, in the form of the highest quality of products, convenience in business transactions and professional team that is always ready to assist. As a customer of Meilong Tube, your satisfaction is our top priority.

Features:

Alloy Tubing

We offer various materials of alloy tubing as follow:

• Stainless 316L – with a minimum yield strength of 170 MPa
• Duplex 2205 – with a minimum yield strength of 485 MPa
• Duplex 2507 – with a minimum yield strength of 550 MPa
• Incoloy 825 – with a minimum yield strength of 240 MPa
• Inconel 625 – with a minimum yield strength of 414 MPa

Our alloy tubing is designed for applications of hydraulic control, chemical injection, chloride pitting and crevice corrosion resistance, H2S and CO2 resistance, as well as chloride stress corrosion cracking (SCC) resistance.

The tubing comes in a seam-welded pressure tubing form, and complies with the UNS and ASTM specification. Specifically, the details of the alloy tubing available are as follows:

• Stainless 316L – UNS S31603, ASTM A269
• Duplex 2205 – UNS S32205, ASTM A789
• Duplex 2507 – UNS S32750, ASTM A789
• Incoloy 825 – UNS N08825, ASTM B704
• Inconel 625 – UNS N06625, ASTM B704



Technical Parameters:

Weight per meter of Duplex 2507 (UNS S32750) capillary line tubing is listed as following:

O.D.	W.T.	Fraction
		Decimal	0.028	0.035	0.049	0.065	0.083
1/8	0.125	0.0438	0.0507	-	-	-
1/4	0.250	0.1002	0.1213	0.1587	0.197	0.2232
3/8	0.375	0.1565	0.1917	0.2572	0.3246	0.3904
1/2	0.500	0.2129	0.2621	0.3559	0.4554	0.5575
5/8	0.625	0.2693	0.3327	0.4547	0.5864	0.7246
3/4	0.750	0.3256	0.4031	0.5532	0.7172	0.8916

The metric size corresponding to the imperial size capillary line tubing in Duplex 2507 (UNS S32750) is listed as following:

Imperial size		Metric size
OD	WT	OD	WT
inch	inch	mm	mm
1/8 (0.125)	0.028	3.18	0.71
	0.035	3.18	0.89
3/16 (0.188)	0.028	4.76	0.71
	0.035	4.76	0.89
	0.049	4.76	1.24
1/4 (0.250)	0.035	6.35	0.89
	0.049	6.35	1.24
	0.065	6.35	1.65
	0.083	6.35	2.11
3/8 (0.375)	0.035	9.53	0.89
	0.049	9.53	1.24
	0.065	9.53	1.65
	0.083	9.53	2.11
1/2 (0.500)	0.035	12.7	0.89
	0.049	12.7	1.24
	0.065	12.7	1.65
	0.083	12.7	2.11
5/8 (0.625)	0.035	15.88	0.89
	0.049	15.88	1.24
	0.065	15.88	1.65
	0.083	15.88	2.11
3/4 (0.750)	0.035	19.05	0.89
	0.049	19.05	1.24
	0.065	19.05	1.65
	0.083	19.05	2.11



Applications:

A safety valve is a type of valve that automatically actuates when the pressure of the inlet side of the valve increases to a predetermined pressure, to open the valve disc and discharge the fluid. The safety valve system is designed to be a fail-safe so that a wellbore can be isolated in the event of any system failure or damage to the surface production-control facilities.

In most cases, it is mandatory to have a means of closure for all wells capable of natural flow to the surface. To meet this requirement, a subsurface safety valve (SSSV) can be installed. This safety valve can be operated on a fail-safe principle from a control panel located on the surface.

The SSSV is connected to a control line, which is typically constructed of stainless steel components and is introduced into the wellbore at the time of completion. Depending on the specific circumstances, the pressure on the control line must be as high as 10,000 psi, to keep the valve open.

Aside from applications for SSSV, the same control line system can be used for a variety of other tasks, such as: capillary coiled alloy tubing for chemical injection; bare and encapsulated hydraulic control line coiled alloy tubing for subsea safety valves; velocity strings, work strings, and steel tube umbilicals; and geothermal coiled alloy tubing for energy production.



Customization:



Support and Services:

Capillary Line offers a world-class suite of technical support and services to customers around the world. We provide 24/7 support to ensure that you have the resources you need to maximize your success with our products. Our technical experts are available to answer questions and provide guidance when needed.

We also offer a range of additional services to meet your specific needs. Whether you need help with installation, software updates, hardware troubleshooting, or anything else, we can provide the help you need. Our team of experienced professionals will ensure that your experience is as smooth and successful as possible.

If you have any questions or need assistance, please do not hesitate to contact us. Our team is here to help you get the most out of your Capillary Line product.

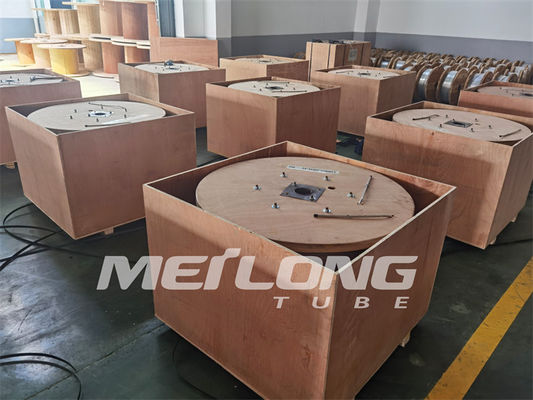

Packing and Shipping:

Capillary Line products are carefully packaged for shipping. All orders are shipped via appropriate carriers. Customers will be notified of shipping details and tracking information once the order has been processed.

We strive to ensure all orders are packed securely and with the utmost care. We use quality packaging materials to ensure that all parts and components remain in perfect condition during transit.

For international orders, we will use the most cost-effective international shipping method and will ensure that all customs paperwork is completed accurately.
