Black High Pressure Capillary Tubing Line For Down Hole PVDF Encapsulation

Black Encapsulated Control Line Close Dimensional Tolerance for Down Hole Application In Oil And Gas Industry

Product Description:

The encapsulation of downhole components such as Hydraulic Control Lines, Single Line Encapsulation, Dual-Line Encapsulation (FLATPACK), and Triple-Line Encapsulation (FLATPACK) has become prevalent in downhole applications. The overlaying of plastic provides several benefits that help to ensure a successful completion.

Encapsulation provides a protective layer to keep the lines from being scratched, dented, and possibly crushed while running in hole. Additionally, encapsulation of several components (Flat Pack) provides a consolidation that will help reduce equipment and personnel that is needed to deploy multiple single components. In many cases, a flat pack is mandatory as rig space can be limited. Encapsulation also helps keep metal to metal contact from occurring and can provide protection to underlying components while in hole, such as a lines that can be across a sand face or in contact with a high rate of gas.

One other advantage of encapsulation is that it eliminates the need for orbital welds. Hydraulic Control Lines, depending on the length of the application, are subjected to raw materials. Orbital welds have become unnecessary in our industry as completions are often greater than the standard yield of a mill produced coil. We have Tungsten Inert Gas and laser beam welding machines to produce seam-welded tubing which allows us to perform a consistently repeatable, high-quality weld. Furthermore, our Cold-Drawing Machines allow us to produce OD Size ranges of 1/8” – 1” and Wall Thicknesses of 0.028” -0.095”, with our common alloy products being 316L, Duplex 2205, Super Duplex 2507, Incoloy 825, and Inconel 625.

Features:

Creating increased protection for downhole lines is crucial to ensuring long term installation success. The crush resistance of the lines should be boosted to prevent any damage or interference that could arise while running. Furthermore, protecting the control line against surface abrasions or pinching is essential to its effectiveness. Stress corrosion failure is a serious concern, and any steps taken in the way of avoidance should be taken. An improved clamping profile will also help ensure project success. Finally, encapsulation of the line will provide additional protection while allowing for smooth running.

Encapsulation of the lines can be both single or multiple layers; this will be dependent upon how deep the line needs to go as well as other conditions that it may be exposed to. The multiple layers of encapsulation will help create an extra layer of protection to further ensure long-term success.

Technical Parameters:

Applications:

Down hole tubes are used for a variety of applications in industries today, especially in oil and gas related fields. They are used for deep-well operations that involve drilling into the ground to gain access to oil, gas and other resources located underground. Down hole tubes are designed and engineered in such a way that they can withstand extreme temperatures, pressures, and potential mechanical damage from the environment they are drilled into.

Subsea umbilicals are cables that provide electrical power and control signals to remotely operated vehicles (ROVs), subsea production systems and other equipment located underwater. They are used to control operations and monitor materials remotely and are often designed to meet specific requirements for the environment they are utilized in.

Process constructions are structures designed to keep processes stationary in industrial fields. They can include buildings, bridges, pipelines, tanks, and other facilities used to support specific processes in plants and factories. General control system are the components that allow process constructions to operate effectively. These components include pumps, motors, relay systems, and sensors that interact with the process constructions and the environment they are in.

Steam supply lines and gas transport lines are vital components for industrial operations. The lines deliver steam and gas to different stations and equipments in factories to keep the process running. Meanwhile, instrumentation and control systems work like the brains of these systems. They monitor and control the input and output of materials and energy, send signals to related equipments and complete tasks automatically, such as steam pressure control, temperature control and pressure adjustment.

Customization:

Meilong Tube Encapsulated Control Line – Customized Service

Meilong Tube offers customized services for Encapsulated Control Line, with the following attributes:

• Brand Name: Meilong Tube
• Model Number: 3/8''OD x 0.049''WT
• Place of Origin: China
• Certification: ISO9001
• Minimum Order Quantity: 2 coils
• Packaging Details: Wooden case
• Delivery Time: In 7 days
• Payment Terms: T/T, L/C
• Supply Ability: 150 metric tons per month
• Tubing Feature: Enhanced Mechanical Properties

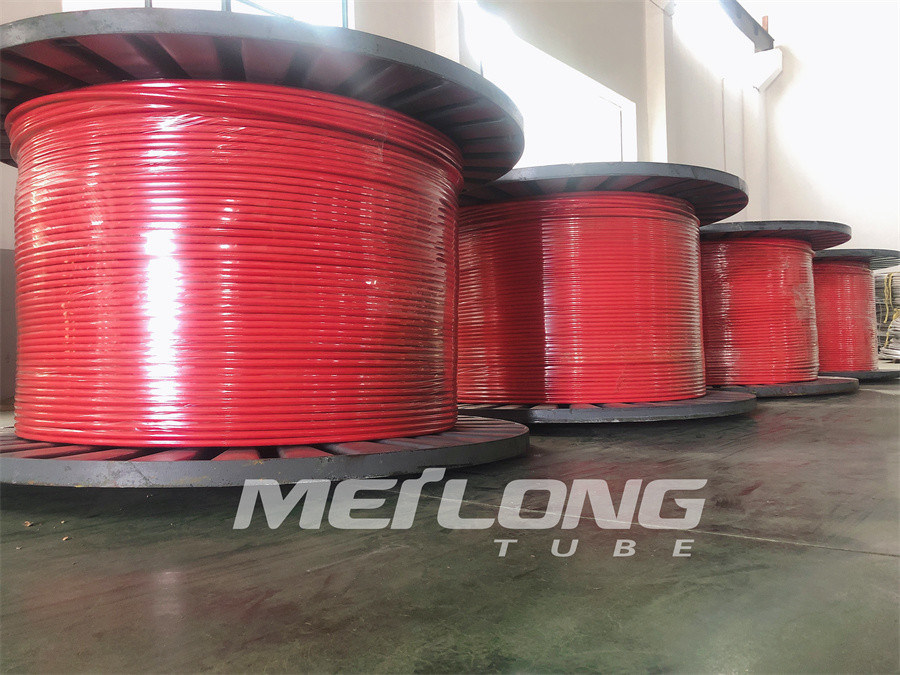

• Encapsulation Color: Yellow, Black, Red
• Application: Down Hole Application In Oil And Gas Industry
• Use Purpose: Hydraulic Control And Chemical Injection
• Length: Up To 12000 Meters

Our Encapsulated Control Line is specifically designed for PVDF, TPV encapsulated injection lines, and encapsulated chemical injection lines. It is ideal for down hole applications in oil and gas industry, and provides an excellent solution for hydraulic control and chemical injection.

Support and Services:

We provide technical support and services for Encapsulated Control Line products. Our team of experienced professionals provide customers with quality, reliable, and cost-effective solutions. We understand the needs of our customers and strive to deliver the best possible results.

Our services include:

• Assistance on installation and setup of Encapsulated Control Line products
• Troubleshooting and resolving technical issues
• Regular maintenance and performance optimization
• Ongoing product upgrades and updates
• Customer-specific customizations

We are committed to providing our customers with the highest quality of service and support. Our team of professionals is available 24/7 to answer questions and provide assistance. We stand behind our products and services and are dedicated to ensuring that our customers have the best possible experience.
