Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH

Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH
Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH

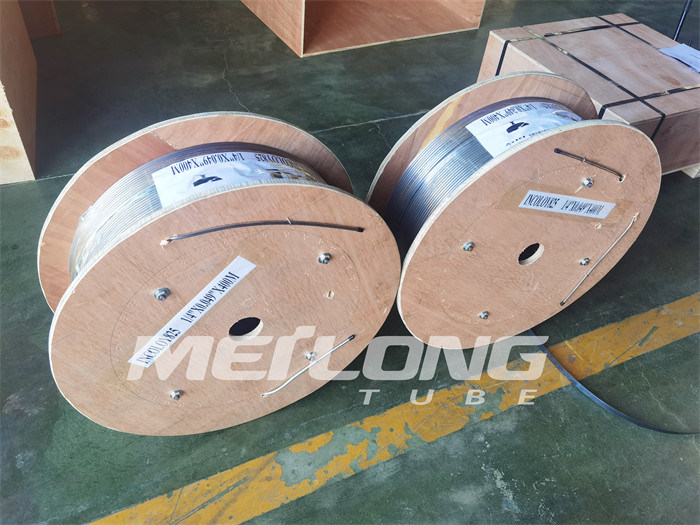

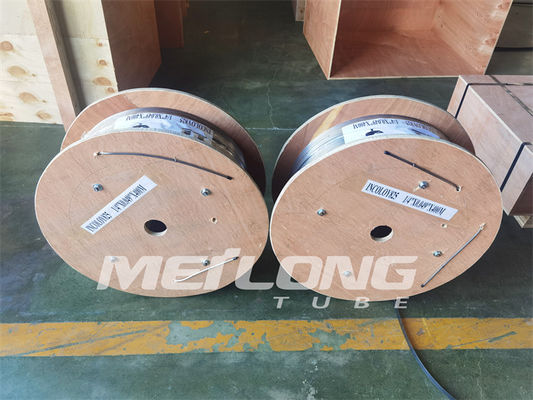

Large Image :  Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001
Model Number: 3/8''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil

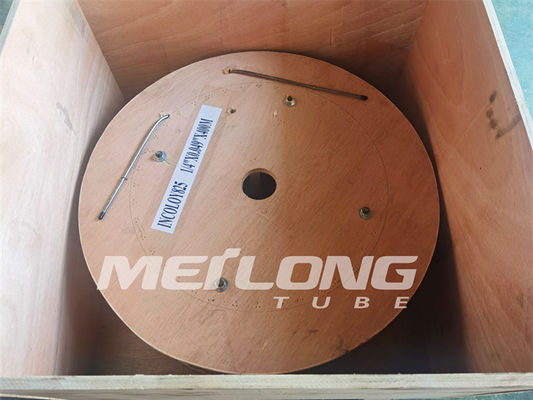

Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

Duplex 2507 Hydraulic Control Line 10000Psi Control Line Tubing 1/4 INCH

Description
Connection Type: Ferrule Fittings Size: Tight Dimensional Tolerance
Use Purpose: Hydraulic Control And Chemical Injection Length: Up To 12000 Meters With Continuous Length
Orbital Welds: Continuous Length Without Orbital Welds Condition: Annealed
Standard: ASTM A269 NDT: 100% Eddy Current Tested
High Light:

Duplex 2507 Hydraulic Control Line

,

Hydraulic Control Line 10000Psi

,

Control Line Tubing 1/4 INCH

Duplex 2507 Capillary Coiled Tubing with Ferrule Fittings Working Pressure Above 10000 Psi

Product Description:

Meilong Tube specialises in the production of seamless and redrawn, welded and redrawn coiled tubing. Made from austenitic stainless steels, duplex stainless steels and nickel alloy grades, this type of tubing is primarily used for the purpose of hydraulic control lines and chemical injection lines for oil and gas, and geothermal industry. Unique capabilities enabled by Meilong Tube make our coils the longest continuous chemical injection line available in stainless steels and high nickel alloys. Furthermore, with an exceptionally clean and smooth inside surface, they are great for chemical injection systems due to the shorter hydraulic response time and increased collapse strength. In addition, there are lesser incidences of methanol permeation. Duplex 2205 is a nitrogen-enhanced duplex stainless steel, designed to combat common corrosion problems encountered when using 300 series stainless steels. It is composed of a ferrite-austenite structure, with approximately 40-50% ferrite in the annealed condition. This grade is the most commonly used duplex alloy and displays excellent resistance to various forms of corrosion. It combines the favorable qualities of both a ferritic alloy (such as stress corrosion cracking resistance and higher strength) with those of an austenitic alloy (facility of fabrication and corrosion resistance). However, it should only be used in temperatures below 600 °F, as higher temperature exposure may cause embrittlement. The combination of chromium, molybdenum and nitrogen found in Duplex 2205 give it excellent resistance to chloride pitting and crevice corrosion. This is particularly useful in marine environments, brackish water, bleaching operations, closed loop water systems and food processing applications, rendering it superior to other stainless steel grades like SS316L and SS317L in many environments.

Features:

Each one tubing coil crafted by Meilong Tube is a completely continuous length, free of any orbital welds. Every coil is hydrostatically tested at a minimum of 10,000 psi, and can be witnessed on site by third party inspectors such as SGS, BV, and DNV. Additionally, board tests such as eddy current testing, chemicals, flattening, flaring, tensile and yield, elongation, and hardness are done to ensure material quality.

Furthermore, Vacuum annealing is done during manufacturing in order to guarantee cleanliness for both inside and outside surfaces of control lines and chemical injection lines. The vacuum annealing removes any degreasing solvents or drawing lubricants, as well as granting a bright exterior to the tubes and improving its mechanical properties.



Technical Parameters:

  <
Alloy UNS O.D. (inch) W.T. (inch) Working Pressure (psi) Burst Pressure (psi) Collapse Pressure (psi) Test Pressure (psi)
Incoloy 825 N08825 1/8 0.125 0.028 12,389 45,914 11,266
Incoloy 825 N08825 1/8 0.125 0.035 15,486 57,392 14,083
Incoloy 825 N08825 1/4 0.250 0.035 7,281 26,992 8,427
Incoloy 825 N08825 1/4 0.250 0.049 10,518 38,957 10,979
Incoloy 825 N08825 1/4 0.250 0.065 14,335 53,127 13,445
Incoloy 825 N08825 3/8 0.375 0.035 4,683 17,347 5,918
Incoloy 825 N08825 3/8 0.375 0.049 6,720 24,903 7,919
Incoloy 825 N08825 3/8 0.375 0.065 9,214 34,142 10,022
Incoloy 825 N08825 3/8 0.375 0.083 12,018 44,526 12,174
Incoloy 825 N08825 1/2 0.500 0.049 4,912 18,173 6,164
Incoloy 825 N08825 1/2 0.500 0.065 6,701 24,831 7,905
Incoloy 825 N08825 1/2 0.500 0.083 8,740 32,382 9,736
Incoloy 825 N08825 5/8 0.625 0.049 3,930 14,538 4,931
Incoloy 825 N08825 5/8 0.625 0.065 5,361 19,865 6,324
Incoloy 825 N08825 5/8 0.625 0.083 6,846 25,367 8,076
Incoloy 825 N08825 3/4 0.750 0.049 3,273 12,110 4,108
Incoloy 825 N08825 3/4 0.750 0.065 4,466 16,547 5,268
Incoloy 825 N08825 3/4 0.750 0.083 5,703 21,131 6,727

Applications:

When it comes to long-life, corrosion resistant alloy grade tubing, our company offers a great selection for the specialized applications in various industries. Our line of capillary coiled alloy tubing is specifically designed for chemical injection equipment, offering a range of sizes and construction from high grade alloys.

We also provide a variety of bare and encapsulated hydraulic control line coiled alloy tubing that are ideal for subsea safety valves. We have a wide variety of sizes for any application you may need. They are available in high strength alloys to ensure superior performance.

Our company also offers a great selection of high quality velocity strings, work strings, and steel tube umbilicals. We have a wide selection of materials that can be used for a range of subsea applications. This provides our customers with the superior performance they need for deepwater operations.

Finally, our selection of geothermal coiled alloy tubing is designed for a variety of high temperature applications. They are available in a range of materials that can be customized for any industry. We also provide superior corrosion resistance and dimensional accuracy to ensure the performance of your tubing.



Customization:

Meilong Tube offers custom Duplex 2205 Capillary Coiled Tubing services to meet your needs. Our Capillary Coiled Tubing is designed for use in Downhole Control Line and Chemical Injection applications. Our tubing is specifically designed for high tensile strength and elongation, making it perfect for hydraulic control. Our tubing comes in 3/8''OD x 0.049''WT and can be supplied up to 12000 Meters in continuous length. It is made of premium quality stainless steel 316L material and is ISO9001 certified. The minimum order quantity is 1 coil and we can provide up to 150 metric tons per month. We provide secure packaging and deliver in 7 days. Payment terms are T/T, L/C.



Support and Services:

Capillary Coiled Tubing provides technical support and services to help ensure optimal performance for your product. Our knowledgeable technical support staff is available to answer questions and provide guidance on installation, operation, maintenance, and troubleshooting. We also provide on-site installation and training services if required. In addition, we offer a variety of services designed to meet the needs of our customers, including spooling, pressure testing, and repair.
