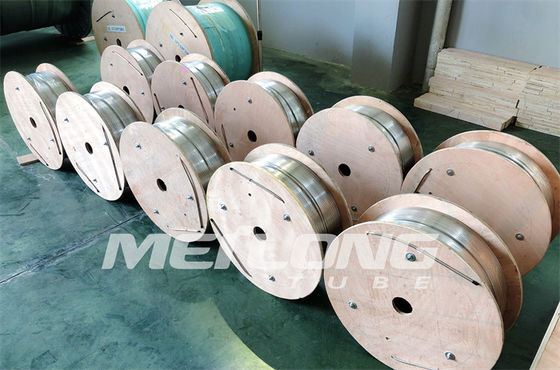

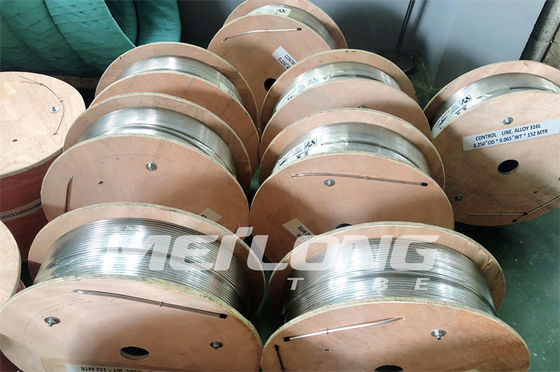

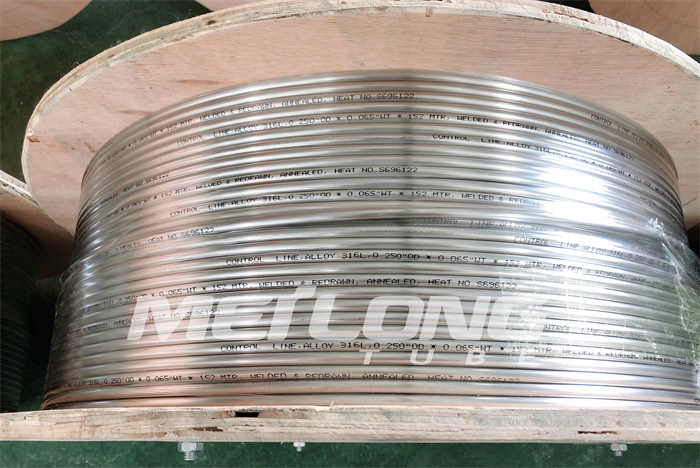

100% Eddy Current Tested Capillary Coiled Tubing with Ferrule Fittings Continuous Length Without Orbital Welds
Product Description:
Meilong Tube's downhole control lines are primarily used as communication conduits for hydraulically operated downhole devices in oil, gas, and water-injection wells, where durability and resistance to extreme harsh conditions are required. These lines are custom made to meet the requirements of the various applications and downhole components.
The encapsulated materials used are hydrolytically stable and are compatible with all typical well completion fluids, including high-pressure gas. The material selection is based on different factors, such as bottomhole temperature, hardness, tensile and tear strength, water absorption, gas permeability, oxidation, and abrasion and chemical resistance.
Control lines have been extensively tested, including crush testing and high-pressure autoclave well simulation. These experiments proved the increased loading under which encapsulated tubing can maintain its integrity, especially when wire-strand "bumper wires" are used.
TP316L is an austenitic chromium-nickel stainless steel with molybdenum and a low carbon content. It offers superior corrosion resistance, including against organic acids at high concentrations and moderate temperatures, inorganic acids like phosphoric and sulphuric acids at moderate concentrations and temperatures, salt solutions like sulphates, sulphides and sulphites, and caustic environments. However, it is important to note that austenitic steels do suffer from stress corrosion cracking and may be subject to such damage when exposed to tensile stresses and chlorides in environments above 60°C (140°F).
Additionally, the low carbon content of TP316L makes it capable of withstanding intergranular corrosion better than steels of type TP316, making it ideal for use in environments with high temperatures, corrosive fluids or gases, such as the production of sour gas or other sour well services in the oil industry.
Features:
Control lines come in exceptionally long lengths, without any welds, up to a whopping 40,000 ft (12,192 m) to ensure top quality and reliability.
Moreover, a variety of flat-packs and combinations thereof with bumper wire and downhole cables are also available to make deployment simpler.
Morever, both seamless and welded-and-plug-drawn production methods ensure a perfectly smooth and round tube to ensure long-term efficient metal sealing at the terminations.
Finally, encapsulation materials are tailored according to the well condition, maximizing longevity and performance of the product.
Technical Parameters:
<
| Alloy |
UNS |
O.D. (inch) |
W.T. (inch) |
Working Pressure (psi) |
Burst Pressure (psi) |
Collapse Pressure (psi) |
Test Pressure (psi) |
| Incoloy 825 |
N08825 |
1/8 |
0.125 |
0.028 |
12,389 |
45,914 |
11,266 |
| Incoloy 825 |
N08825 |
1/8 |
0.125 |
0.035 |
15,486 |
57,392 |
14,083 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.035 |
7,281 |
26,992 |
8,427 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.049 |
10,518 |
38,957 |
10,979 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.065 |
14,335 |
53,127 |
13,445 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.035 |
4,683 |
17,347 |
5,918 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.049 |
6,720 |
24,903 |
7,919 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.065 |
9,214 |
34,142 |
10,022 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.083 |
12,018 |
44,526 |
12,174 |
| Incoloy 825 |
N08825 |
1/2 |
0.500 |
0.049 |
4,912 |
18,173 |
6,164 |
| Incoloy 825 |
N08825 |
1/2 |
0.500 |
0.065 |
6,701 |
24,831 |
7,905 |
| Incoloy 825 |
N08825 |
1/2 |
0.500 |
0.083 |
8,740 |
32,382 |
9,736 |
| Incoloy 825 |
N08825 |
5/8 |
0.625 |
0.049 |
3,930 |
14,538 |
4,931 |
| Incoloy 825 |
N08825 |
5/8 |
0.625 |
0.065 |
5,361 |
19,865 |
6,324 |
| Incoloy 825 |
N08825 |
5/8 |
0.625 |
0.083 |
6,846 |
25,367 |
8,076 |
| Incoloy 825 |
N08825 |
3/4 |
0.750 |
0.049 |
3,273 |
12,110 |
4,108 |
| Incoloy 825 |
N08825 |
3/4 |
0.750 |
0.065 |
4,466 |
16,547 |
5,268 |
| Incoloy 825 |
N08825 |
3/4 |
0.750 |
0.083 |
5,703 |
21,131 |
6,727 |
Applications:
Control line enables us to get a precise control from the components. It involves the production of accurately sized bores and oil & gas wells, water distribution systems, and more.
Chemical injection line is used to inject different kinds of chemicals during the operation. It can be used to add lubrication, seal joints, or to prevent corrosion.
Electrical line is used to supply electricity to the system or to provide power for the operation. It can be used to power the pumps and motors, to provide lights, and to connect systems.
Multi-line flat pack is used to interconnect different components and to provide flexible connections for complex pipe networks. This type of packaging can save time and space.
Hydraulic line is used to provide power to hydraulic systems. It is used to move heavy machinery, operate cranes, and to drive wheels.
Tubing encapsulated conductor is used to protect electrical wires from the external environment. It is used when laying underground cables, and its purpose is to protect the wires from damage.
Intelligent well completions are used to ensure the quality of well completion operations and to optimize production operations. They involve the use of sensors and equipment to monitor operations and ensure that all operations are running smoothly.
Capillary tubing is used in the chemical, oil and gas industries. It is used to transfer materials from one area to another, and also to store materials for quick retrieval.
Customization:
We provide customized services for Duplex 2205 Capillary Coiled Tubing, Incoloy 825 Capillary Coiled Tubing, and Capillary Coiled Tubing Hydraulic Control Line with Brand Name Meilong Tube and Model Number 1/4''OD x 0.049''WT. Our products have ISO9001 certification and meet ASTM A269 standards. The minimum order quantity is 1 coil. We promise to deliver your order within 7 days. Our packaging is wooden case. Payment terms are T/T, L/C. We guarantee 100% Eddy Current Tested and 100% Length Is Hydrostatic Tested with a working pressure of Above 10000 Psi. Our monthly supply ability is 150 metric tons.
Support and Services:
Capillary Coiled Tubing provides technical support and service to customers who purchase and use our products. Our team of experienced technical support engineers is available to assist customers with installation, maintenance, and troubleshooting. We also offer a variety of services, such as on-site inspections, product training, and system upgrades. Our commitment to providing exceptional service and support to our customers is unwavering, and we strive to ensure that every customer is satisfied with our products.
