Product Details:
|
Orbital Welds: | Continuous Length Without Orbital Welds | Application: | Down Hole Application In Oil And Gas Industry |
---|---|---|---|
Surface: | Highly Clean And Bright | Size: | Tight Dimensional Tolerance |
Condition: | Annealed | Test: | 100% Length Is Hydrostatic Tested |
Standard: | ASTM A269 | Use Purpose: | Hydraulic Control And Chemical Injection |
High Light: | SS316L Capillary Coiled Tubing,Capillary Coiled Tubing ASTM A269,SS316L 3 8 stainless steel tubing coil |
Meilong Tube specializes in the production of seamless and redrawn, welded and redrawn coiled tubing, which are made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. These products are mostly used in oil and gas, geothermal industries as hydraulic control lines and chemical injection lines. The tubing coils feature high length without orbital welds, and thus reduces possibilities of potential defects or failures. Furthermore, these coils have a very clean and smooth interior surface, giving them a unique advantage in chemical injection systems, as they offer short hydraulic response time, greater collapse strength, and the elimination of methanol permeation.
Duplex 2205 is a type of nitrogen-enhanced and duplex stainless steel that was created to withstand against corrosion, compared to the usual 300 series stainless steels. The structure of 2205 consists of austenite pools that are surrounded by a continuous ferrite phase. In the annealed condition, Duplex 2205 contains around 40-50% ferrite. Often termed as a work horse grade, it is the most widely used type in the entire duplex family of stainless steels.
The characteristics of 2205 stainless steel are its efficacy to combat corrosion, stress corrosion cracking resistance and high strength, and its ease of fabrication and corrosion resistance. Its usage must be within the temperatures of 600° F. If exposed to a temperature higher than this limit, the stainless steel has a chance to be embrittled. The properties of corrosion resistance are owed to the high content of chromium, molybdenum and nitrogen present in it.
Due to its excellent corrosion resistance, 2205 duplex stainless steel is a cost-effective solution for applications which the 300 series stainless steels are susceptible to chloride stress corrosion cracking. In addition to marine environment and brackish water, it is also used in bleaching operations, closed loop water systems and some food processing applications.
Each one tubing coil is a single, unbroken piece without any orbital welds. To ensure its quality, each coil is put through a hydrostatic pressure test at a minimum of 10,000 psi. A third-party inspector from certified bodies like SGS, BV, or DNV can be requested to witness the testing process. Other tests that we carry out are eddy current, chemical, flattening, flaring, tensile, yield, elongation, and hardness tests.
At Meilong Tube, we take special measures to make sure that both the inner and the outer surfaces of our control lines and chemical injection lines are clean and free of residue. We adopt a vacuum annealing process to evaporate toxic metallic oxides and eliminate any lingering degreasing solvents and drawing lubricant. This process further improves the aesthetics and mechanical properties of our alloy tubing.
Alloy | UNS | O.D. (inch) | W.T. (inch) | Working Pressure (psi) | Burst Pressure (psi) | Collapse Pressure (psi) | Test Pressure (psi) |
Incoloy 825 | N08825 | 1/8 | 0.125 | 0.028 | 12,389 | 45,914 | 11,266 |
Incoloy 825 | N08825 | 1/8 | 0.125 | 0.035 | 15,486 | 57,392 | 14,083 |
Incoloy 825 | N08825 | 1/4 | 0.250 | 0.035 | 7,281 | 26,992 | 8,427 |
Incoloy 825 | N08825 | 1/4 | 0.250 | 0.049 | 10,518 | 38,957 | 10,979 |
Incoloy 825 | N08825 | 1/4 | 0.250 | 0.065 | 14,335 | 53,127 | 13,445 |
Incoloy 825 | N08825 | 3/8 | 0.375 | 0.035 | 4,683 | 17,347 | 5,918 |
Incoloy 825 | N08825 | 3/8 | 0.375 | 0.049 | 6,720 | 24,903 | 7,919 |
Incoloy 825 | N08825 | 3/8 | 0.375 | 0.065 | 9,214 | 34,142 | 10,022 |
Incoloy 825 | N08825 | 3/8 | 0.375 | 0.083 | 12,018 | 44,526 | 12,174 |
Incoloy 825 | N08825 | 1/2 | 0.500 | 0.049 | 4,912 | 18,173 | 6,164 |
Incoloy 825 | N08825 | 1/2 | 0.500 | 0.065 | 6,701 | 24,831 | 7,905 |
Incoloy 825 | N08825 | 1/2 | 0.500 | 0.083 | 8,740 | 32,382 | 9,736 |
Incoloy 825 | N08825 | 5/8 | 0.625 | 0.049 | 3,930 | 14,538 | 4,931 |
Incoloy 825 | N08825 | 5/8 | 0.625 | 0.065 | 5,361 | 19,865 | 6,324 |
Incoloy 825 | N08825 | 5/8 | 0.625 | 0.083 | 6,846 | 25,367 | 8,076 |
Incoloy 825 | N08825 | 3/4 | 0.750 | 0.049 | 3,273 | 12,110 | 4,108 |
Incoloy 825 | N08825 | 3/4 | 0.750 | 0.065 | 4,466 | 16,547 | 5,268 |
Incoloy 825 | N08825 | 3/4 | 0.750 | 0.083 | 5,703 | 21,131 | 6,727 |
Our tubing product portfolio includes a range of options for various applications. We provide capillary coiled alloy tubing for chemical injection, bare and encapsulated hydraulic control line coiled alloy tubing for subsea safety valves and velocity strings, work strings, and steel tube umbilicals for various mediums. We also offer coiled alloy tubing for geothermal applications.
Our coiled tubing products offer superior performance & durability for a variety of industrial applications. Our tubing is manufactured from the highest grade alloy& meets all applicable industry standards for quality and performance. Our tubing is corrosion resistant, temperature resistant, and is available in a range of sizes and thicknesses with or without encapsulated layers.
Our team of experts can work with you to find the best tubing option to fit your specific application needs. We offer custom fabrication services to ensure that you get the exact product that you need for your specific application.

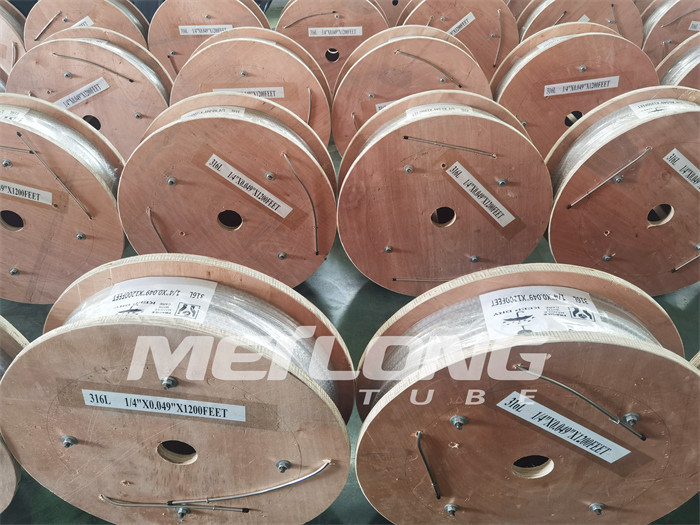

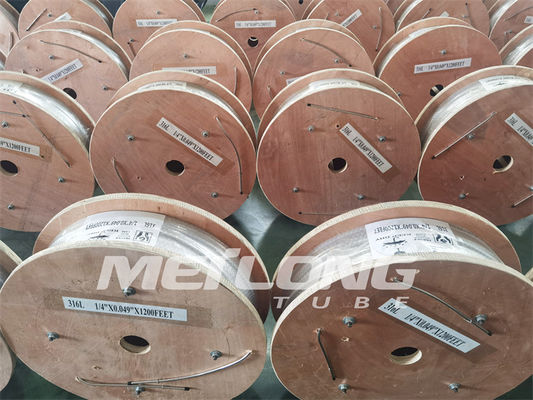

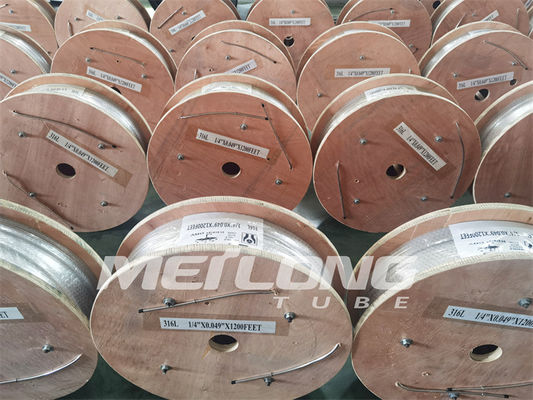

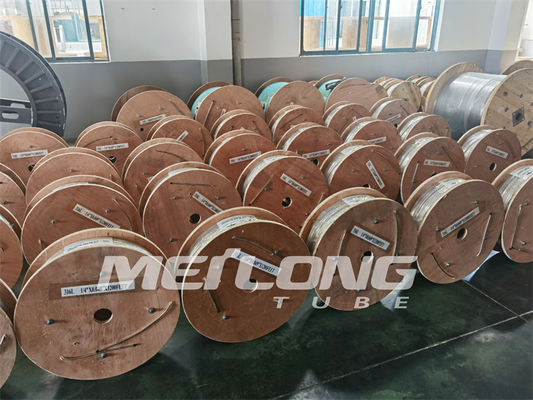

We provide customized services for Capillary Coiled Tubing Control Line, Downhole Capillary Coiled Tubing and Duplex 2507 Capillary Coiled Tubing. Our product is of Meilong Tube brand with 3/8''OD x 0.049''WT size. It is manufactured in China and is ISO9001 certified. The minimum order quantity is 1 coil and is supplied in wooden case with delivery in 7 days. You can make payments through T/T or L/C. We have a supply capacity of 150 metric tons per month. Each coil is 100% length hydrostatic tested and 100% eddy current tested in accordance with ASTM A269. The material used is stainless steel 316L in annealed condition.
At ABC Company, we provide reliable, professional technical support and services for our Capillary Coiled Tubing products. Our technicians are highly knowledgeable in all aspects of the product and can provide technical assistance for installation, maintenance, repair, and troubleshooting.
Our customer service representatives are available 24 hours a day, 7 days a week, to answer any questions you may have. They can help you choose the right product, provide product information and advice, and assist you with placing orders or making returns.
We also offer an array of warranties and guarantees for our Capillary Coiled Tubing products. In addition, we provide a wide range of training and educational services, including seminars, webinars, online courses and in-person workshops. Our knowledgeable staff can also provide customized training solutions to meet the needs of your organization.
At ABC Company, we strive to provide the highest quality of service and support for our Capillary Coiled Tubing products. We are committed to ensuring that our customers get the most out of their investment and have the best possible experience.
