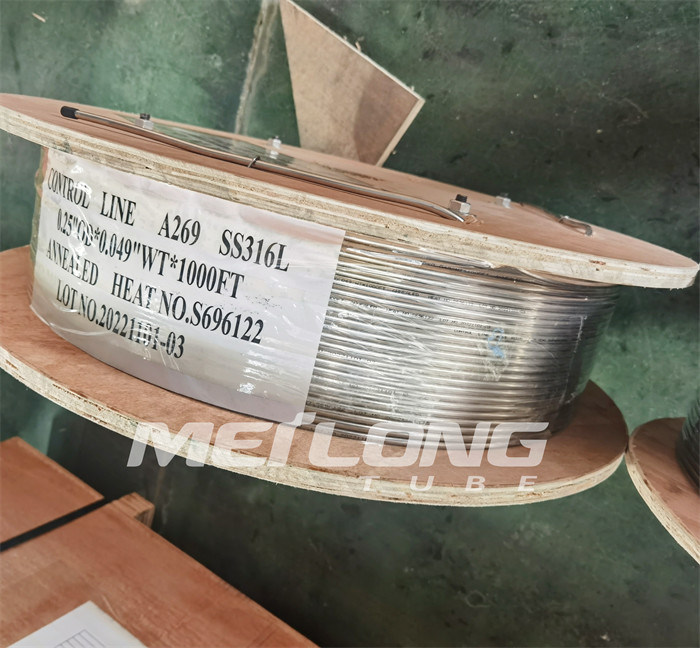

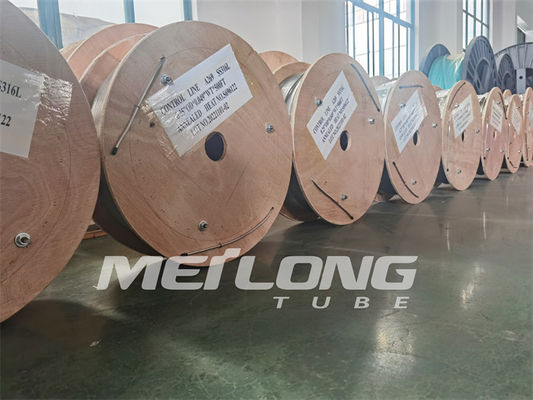

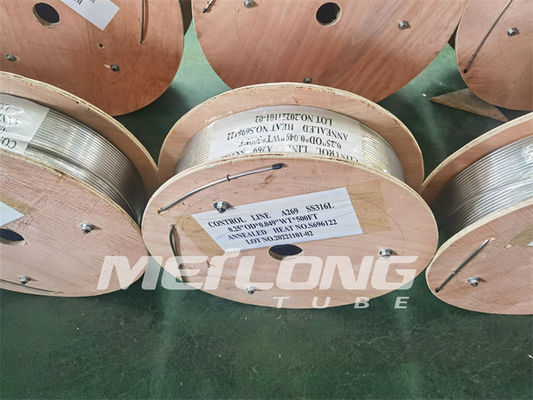

Nickel Alloy Capillary Line ASTM A269 12000 Meters Capillary Coiled Geothermal Tubing

Nickel Alloy ASTM A269 Up to 12000 Meters Capillary Coiled Tubing

Product Description:

Meilong Tube is an expert in the manufacture and supply of seamless and redrawn, welded and redrawn coiled tubing. It can be made of various corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. This tubing is mainly used in the oil and gas and geothermal industries. Its unique capabilities and processes make it able to produce the longest continuous chemical injection line tubing available in the stainless steels and high nickel alloys. This tubing also has a short hydraulic response time, excellent collapse strength and low methanol permeation.

Duplex 2205 is a nitrogen-enhanced duplex stainless steel that is designed to combat the common corrosion issues of the 300 series stainless steels. It contains approximately 40-50% ferrite in the annealed condition, providing it with good stress corrosion cracking resistance and high strength. It also has excellent pitting and crevice corrosion resistance, making it suitable for marine, brackish water and closed loop water systems. Despite its advantages, its use should be limited to temperatures below 600° F to avoid embrittlement.



Features:

Each one of our tubing coils is a completely continuous length free of any orbital welds. We thoroughly hydrostatic tested each coil at a minimum of 10,000 psi and provide third party inspections (SGS, BV, DNV) for on-site witnessing of such testing. Furthermore, tests such as Eddy current, chemicals, flattening, flaring, tensile, yield, elongation, and hardness ensure the quality of our materials.


Finally, we conduct vacuum annealing for our injection lines to ensure the cleanliness of both inner and outer surfaces. This process also helps maintain a bright, aesthetically pleasing surface as well as excellent mechanical properties.



Technical Parameters:

  <

Alloy	UNS	O.D. (inch)	W.T. (inch)	Working Pressure (psi)	Burst Pressure (psi)	Collapse Pressure (psi)	Test Pressure (psi)
Incoloy 825	N08825	1/8	0.125	0.028	12,389	45,914	11,266
Incoloy 825	N08825	1/8	0.125	0.035	15,486	57,392	14,083
Incoloy 825	N08825	1/4	0.250	0.035	7,281	26,992	8,427
Incoloy 825	N08825	1/4	0.250	0.049	10,518	38,957	10,979
Incoloy 825	N08825	1/4	0.250	0.065	14,335	53,127	13,445
Incoloy 825	N08825	3/8	0.375	0.035	4,683	17,347	5,918
Incoloy 825	N08825	3/8	0.375	0.049	6,720	24,903	7,919
Incoloy 825	N08825	3/8	0.375	0.065	9,214	34,142	10,022
Incoloy 825	N08825	3/8	0.375	0.083	12,018	44,526	12,174
Incoloy 825	N08825	1/2	0.500	0.049	4,912	18,173	6,164
Incoloy 825	N08825	1/2	0.500	0.065	6,701	24,831	7,905
Incoloy 825	N08825	1/2	0.500	0.083	8,740	32,382	9,736
Incoloy 825	N08825	5/8	0.625	0.049	3,930	14,538	4,931
Incoloy 825	N08825	5/8	0.625	0.065	5,361	19,865	6,324
Incoloy 825	N08825	5/8	0.625	0.083	6,846	25,367	8,076
Incoloy 825	N08825	3/4	0.750	0.049	3,273	12,110	4,108
Incoloy 825	N08825	3/4	0.750	0.065	4,466	16,547	5,268
Incoloy 825	N08825	3/4	0.750	0.083	5,703	21,131	6,727

Applications:

Subsea safety valves to protect underwater work sites rely heavily on coiled alloy tubing. These alloy tubes provide hydraulic control lines that must be either bare or encapsulated. In addition, velocity strings and work strings can be formed with the tubing. Capillary tubing is frequently used for chemical injection.

Not to be forgotten is the common use of coiled alloy tubing in geothermal applications. Heat pumps and related turbines often make use of this versatile product. Its coiling and flexibility provide it a superior option for accommodating the requirements of geothermal energy collection.



Customization:



Support and Services:

At Capillary Coiled Tubing, we offer technical support and services as part of our commitment to providing the highest quality products and services to our customers. Our team of experienced professionals are here to help you with any questions you may have about our products and services. We offer a variety of services, including:

• Installation and maintenance services
• Troubleshooting and repair
• Onsite training and support
• Online support and resources

We also offer a wide variety of products and services that can be tailored to meet the specific needs of each customer. Whether you need help with installation, maintenance, or troubleshooting, our experienced team is here to help. Contact us today to learn more about our services and products.
