Hydrostatic Tested Chemical Injection Line Inconel 625 For Geothermal Wells

Description
Alloy: Inconel 625, UNS N06625 Surface: Clean And Bright
Condition: Annealed Properties: Enhanced Tensile And Yield
Feature: High Pressure Tubing Application: Down Hole Hydraulic Control In Oil And Gas Wells
Standard: ASTM B704 Size: Tight Dimensional Tolerances
Application Standard: NACE MR0175 / ISO15156 Test: 100% Length Is Hydraulic Tested
High Light:

Hydrostatic Tested Chemical Injection Line

,

Chemical Injection Line SS304

,

SS304 stainless steel tubing coil 1 2

Hydrostatic Tested Inconel 625 Capillary Tubing Chemical Injection Line for Geothermal Wells



  Meilong Tube specially manufactures seamless and redrawn, welded and redrawn hydraulic control line capillary tube which are made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. The tubing is used as hydraulic control lines and chemical injection lines specially serving oil and gas, geothermal industry.



Typical Size of Inconel 625 Capillary Tubing



Outside diameter of chemical injection lines is mainly 3/8’’ (9.53mm).

Wall thicknesses: 0.035’’ (0.89mm), 0.049’’ (1.24mm), 0.065’’ (1.65mm), 0.083'' (2.11mm)

Control line tubing is available in lengths from 400 feet (122 meters) to 32,808 feet (10,000 meters). No orbitally butt welds.

Other specifications (1/8’’ to 3/4’’) are available on request.



Importance of Inconel 625 Capillary Tubing



Each one nickel alloy Incoloy 625 tubing capillary tube is a completely continuous length without orbital welds.

Each one tubing coil is hydrostatic tested at minimum 10,150 psi.

The test can be witnessed on site by the third party inspectors (SGS, BV, DNV).

Other tests are eddy current test, chemicals, flattening, flaring, tensile, yield, elongation, hardness for the material quality.



Application for Inconel 625 Capillary Tubing



Chemical Injection Line



A small-diameter conduit that is run alongside production tubulars to enable injection of inhibitors or similar treatments during production. Conditions such as high hydrogen sulfide [H2S] concentrations or severe scale deposition can be counteracted by injection of treatment chemicals and inhibitors during production.



A general term for injection processes that use special chemical solutions to improve oil recovery, remove formation damage, clean blocked perforations or formation layers, reduce or inhibit corrosion, upgrade crude oil, or address crude oil flow-assurance issues. Injection can be administered continuously, in batches, in injection wells, or at times in production wells.



Other Applications



Nickel alloy Inconel 625 tubing coil control line for chemical injection

Bare and encapsulated hydraulic control line coiled alloy tubing for subsea safety valves

Velocity strings, work strings, and steel tube umbilicals

Geothermal coiled alloy tubing



Alloys for Capillary Tubing



Alloy Tubing

Hydraulic

Control

Chemical

Injection

Chloride Pitting /

Crevice Corrosion Resistance

H2S / CO2

Resistance

Chloride Stress Corrosion Cracking (SCC) Resistance UNS / ASTM Specification

Stainless 316L – 170 MPa min. yield strength

Seam-Welded Pressure Tubing

      S31603 / A269

Duplex 2205 – 485 MPa min. yield strength

Seam-Welded Pressure Tubing

S32205 / A789

Duplex 2507 – 550 MPa min. yield strength

Seam-Welded Pressure Tubing

S32750 / A789

Incoloy 825 – 240 MPa min. yield strength

Seam-Welded Pressure Tubing

N08825 / B704

Inconel 625 – 414 MPa min. yield strength

Seam-Welded Pressure Tubing

N06625 / B704



Capillary Tubing Features



Close dimensional tolerances

Considerably enhanced mechanical properties

Superior surface finish

High cleanness of inside surface

Controlled ovality, eccentricity



Chemical Compositions of Inconel 625 for Nickel Alloy Capillary Tubing



Nickel Chromium Iron Molybdenum Columbium + Tantalum Carbon Manganese Silicon Phosphorus Sulfur Aluminum Titanium Cobalt
% % % % % % % % % % % % %
min.   max.     max. max. max. max. max. max. max. max.
58.0 20.0-23.0 5.0 8.0-10.0 3.15-4.15 0.10 0.50 0.5 0.015 0.015 0.4 0.40 1.0



Standard Equivalence



Grade UNS No Euro Standard
No Name
Alloy ASTM/ASME EN10216-5 EN10216-5
625 N06625 2.4856 NiCr22Mo9Nb



Material Description



Inconel 625 is a material with excellent resistance to pitting, crevice and corrosion cracking. Highly resistant in a wide range of organic and mineral acids. Good high temperature strength.



Characteristics of Inconel 625



Excellent mechanical properties at both extremely low and extremely high temperatures.

Outstanding resistance to pitting, crevice corrosion and intercrystalline corrosion.

Almost complete freedom from chloride induced stress corrosion cracking.

High resistance to oxidation at elevated temperatures up to 1050C.

Good resistance to acids, such as nitric, phosphoric, sulfuric and hydrochloric, as well as to alkalis makes possible the construction of thin structural parts of high heat transfer.



Inconel 625 for Application



Components where exposure to sea water and high mechanical stresses are required.

Oil and gas production where hydrogen sulfide and elementary sulfur exist at temperature in excess of 150C.

Components exposed to flue gas or in flue gas desulfurization plants.

Flare stacks on offshore oil platforms.

Hydrocarbon processing from tar-sand and oil-shale recovery projects.



Nickel Alloy Tubing Weight per Meter (kg)



Inconel 625 (UNS N06625)

O.D. W.T.
Fraction Decimal 0.028 0.035 0.049 0.065 0.083
1/8 0.125 0.0465 0.0539 - - -
1/4 0.250 0.1065 0.1288 0.1686 0.2059 0.2372
3/8 0.375 0.1663 0.2037 0.2733 0.3449 0.4149
1/2 0.500 0.2262 0.2785 0.3782 0.4839 0.5924
5/8 0.625 0.2862 0.3535 0.481 0.6231 0.7699
3/4 0.750 0.3460 0.4283 0.5879 0.7621 0.9475



Properties of Inconel 626 Nickel Alloy Capillary Tubing



Seam-welded & floating internal plug redrawn tubing. Supplied in the annealed condition

Continuous length without orbital joint welds



Alloy UNS O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
inch inch inch psi psi psi psi
Inconel 625 N06625 1/8 0.125 0.028 19,024 57,892 22,002 21,750
Inconel 625 N06625 1/8 0.125 0.035 23,780 72,365 27,503 27,550
Inconel 625 N06625 1/4 0.250 0.035 12,516 38,087 14,475 14,500
Inconel 625 N06625 1/4 0.250 0.049 18,065 54,969 18,869 20,300
Inconel 625 N06625 1/4 0.250 0.065 24,633 74,970 23,090 27,550
Inconel 625 N06625 3/8 0.375 0.035 8,043 24,482 10,182 9,425
Inconel 625 N06625 3/8 0.375 0.049 11,546 35,143 13,605 13,050
Inconel 625 N06625 3/8 0.375 0.065 15,829 48,182 17,202 18,125
Inconel 625 N06625 3/8 0.375 0.083 20,648 62,839 20,901 23,200
Inconel 625 N06625 1/2 0.500 0.049 8,433 25,657 10,588 9,425
Inconel 625 N06625 1/2 0.500 0.065 11,507 35,041 13,576 13,050
Inconel 625 N06625 1/2 0.500 0.083 15,010 45,700 16,733 17,400
Inconel 625 N06625 5/8 0.625 0.049 6,624 20,175 8,644 7,250
Inconel 625 N06625 5/8 0.625 0.065 8,788 26,763 11,467 10,150
Inconel 625 N06625 5/8 0.625 0.083 11,222 34,176 14,643 13,050
Inconel 625 N06625 3/4 0.750 0.049 5,518 16,806 7,200 6,525
Inconel 625 N06625 3/4 0.750 0.065 7,320 22,293 9,552 8,700
Inconel 625 N06625 3/4 0.750 0.083 9,348 28,469 12,197 10,875



Theoretical burst pressure based on minimum wall thickness, and minimum tensile strength

Theoretical collapse pressure based on minimum wall thickness, and minimum yield strength

Pressure rating at 100°F (38°C), neutral and static conditions





Tubing Process and Packing



Seamless- pierced, redrawn, annealed (multi-pass circulation process)

Welded- longitudinally welded, redrawn, annealed (multi-pass circulation process)

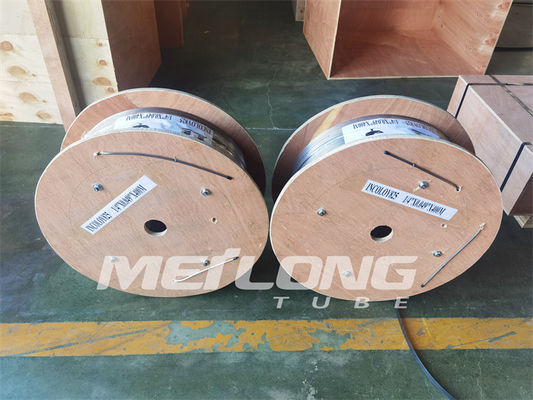

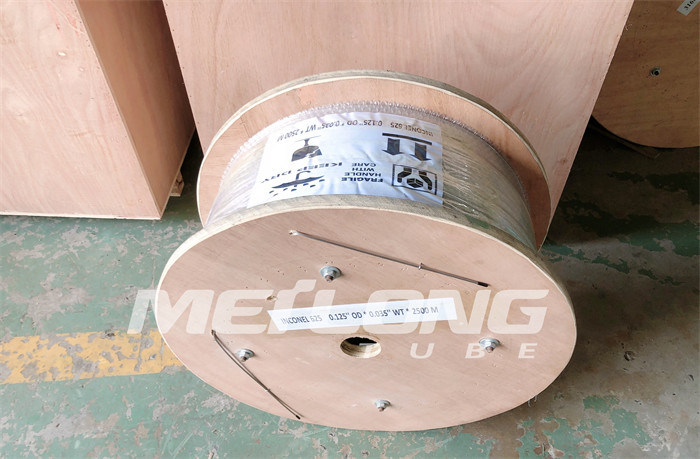

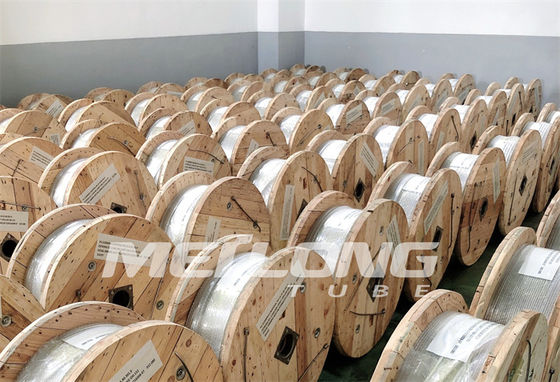

Packing- Tubing is level wound coiled on the metal / wooden drums or spools.

All drums or spools are packed in wooden crates for easy logistic operation.
