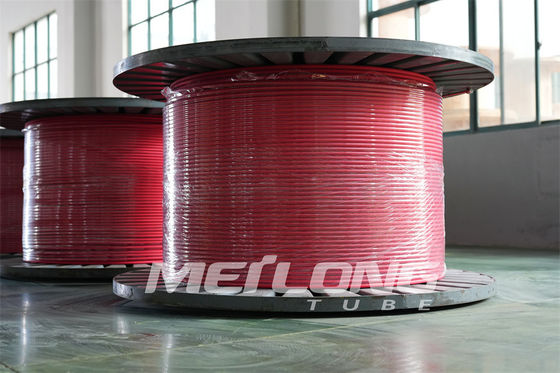

Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control

Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control
Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control

Large Image :  Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001 : 2015
Model Number: 1 / 2 '' OD x 0.065 '' WT
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters

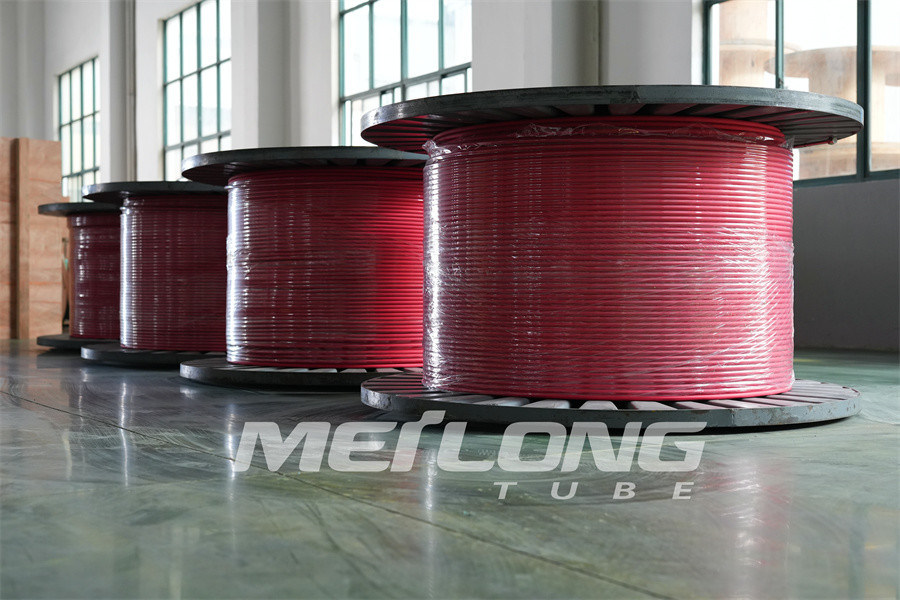

Packaging Details: Level wound coiled on spools/drums, and packed in wooden cases
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100 metric tons per month (including duplex steel tubing, nickel alloy tubing)

Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control

Description
Alloy: UNS S32205, Duplex 2205 Surface: Clean And Bright
Condition: Annealed Properties: Enhanced Tensile And Yield
Feature: High Pressure Tubing Application: Down Hole Hydraulic Control In Oil And Gas Wells
Standard: ASTM A789 Size: Tight Dimensional Tolerances
Test: 100% Length Is Hydraulic Tested Encapsulation: TPV
High Light:

stainless coil tubing Duplex 2205

,

Uns S32205 stainless coil tubing

,

steel tube coil TPV Encapsulated

UNS S32205 Duplex 2205 TPV Encapsulated Control Line Capillary Tubing 1 / 2 '' OD x 0.065 '' WT



Meilong Tube manufactures either welded or seamless hydraulic control lines for subsurface applications. Hydraulic control line is available in mainly five materials, varying wall thicknesses, and a wide range of working pressure ratings. The line is supplied on spools to exact length requirements. Upon request, it is pressure tested hydraulically, purged with nitrogen gas, or clean oil liquid, and sealed on both ends prior to shipping.



Welded hydraulic control line is floating plug drawn to ASTM specifications and is available in any length. Material types for hydraulic control lines include stainless steel TP316L which is suitable for sweet to moderately corrosive environments, Duplex stainless steel 2205, Super Duplex stainless steel 2507, nickel alloy Incoloy 825 and Inconel 625 are suitable for severely corrosive environments and high working pressures and temperatures. Control system fluids must be compatible with the environments and operating temperatures of the control line.



Control line encapsulation also is available, where requested, to provide additional crush and abrasion resistance during installation. The encapsulation material should be matched for compatibility with well fluids and temperature requirements.



The encapsulation of downhole components such as Hydraulic Control Lines, Single Line Encapsulation, Dual-Line Encapsulation (FLATPACK), Triple-Line Encapsulation (FLATPACK) has become prevalent in downhole applications. The overlaying of plastic provides several benefits that help to ensure a successful completion.



Encapsulation provides a protective layer to keep the lines from being scratched, dented, and possibly crushed while running in hole.

Encapsulation of several components (Flat Pack) provides a consolidation that will help reduce equipment and personnel that is needed to deploy multiple single components. In many cases, a flat pack is mandatory as rig space can be limited.

Encapsulation keeps from metal to metal contact.

Encapsulation can provide protection to underlying components while in hole such as a lines that can be across a sand face or possibly in contact with a high rate of gas.



FREE OF ORBITAL WELDS for TPV Encapsulated Control Lines



Hydraulic Control Lines depending on the length of the application are subjected to raw materials. Orbital welds have become unnecessary in our industry as well completions are often greater than the standard yield of a mill produced coil. Our seam-welded tubing production uses Tungsten Inert Gas (TIG) welding machines, and Laser Welding Machines. This process gives the operator the tools to perform a repeatable, high-quality weld. Our current equipment, together with cold-drawing machines allow us to produce OD Size ranges of 1/8” – 1” and Wall Thicknesses of 0.028” -0.095”. Common alloys for tubing products are 316L, 2205, 2507, 825, 625, and Monel 400.



NDT



We perform a variety of tests to validate the integrity of our products.

Eddy current test



Pressure Testing



Liquid - A variety of capabilities for different specification tubing.



Standard & Approvals



Control Lines are manufactured according to applicable ASTM standards for each specific material.

Tubes can be supplied flushed, filled, and filtered per client requirements and to the appropriate NAS/SAE standards.



Design & Construction



- Encapsulation for single line

- Encapsulation profiles to suit customer application

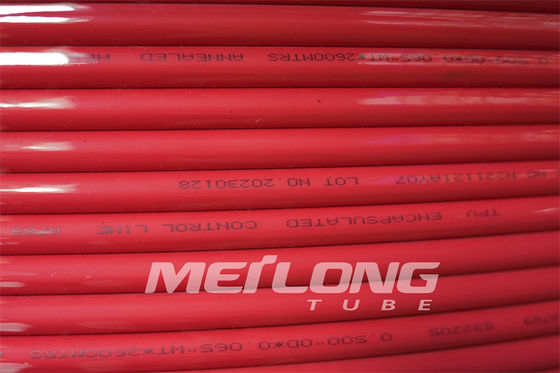

- Custom Line Marking

- Full range of application materials



Encapsulation Materials for Duplex Stainless Steel Control Lines



MSCL Name Industry Name Temperature Range Abrasion Resistance Resistance to Brines Resistance to Hydrocarbons
Nylon 11 Rilsan 11, Nylon 11, Polyamide -60ºС to 135ºС 5 3 5
Polypropylene Polyolefin -25ºС to 150ºС 3 5 3
TPE, TPR, TPV Santoprene -30ºС to 135ºС 3 5 3
PVDF Solef, Kynar -30ºС to 150ºС 4 4 5
ECTFE Halar -75ºС to 150ºС 5 5 5
ETFE Tefzel -100ºС to 150ºС 5 5 5
FEP Teflon -110ºС to 150ºС 3 5 5
MFA/PFA Teflon -110ºС to 250ºС 3 5 5

5 = Excellent 1 = Poor



Features of Encapsulated Control Line



Maximize protection of downhole line

Increase crush resistance during installation

Protect control line against abrasion and pinching

Eliminate long term stress corrosion failure of control line

Improve clamping profile

Single or multiple encapsulation for ease of running and added protection



Available Alloy Grades for Control Line Tubing Inside Encapsulation



Austenitic: 316L
Duplex:

S31803/S32205

S32750

Nickel alloy:

N08825

N06625



Standard Encapsulation Profiles



Round, Single Line Item Standard Dimensions
Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control 0 1/8’’ OD Line 0.250’’ (6.35 mm) Dia.
1/4’’ OD Line 0.433’’ (11.0 mm) Dia.
3/8’’ OD Line 0.535’’ (13.6 mm) Dia.
1/2’’ OD Line 0.660’’ (16.8 mm) Dia.





Square, Single Line Item Standard Dimensions
Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control 1 1/8’’ OD Line 0.250’’ x 0.250’’ (6.35 mm x 6.35 mm)
1/4’’ OD Line 0.433’’ x 0.433’’ (11.0 mm x 11.0 mm)
3/8’’ OD Line 0.535’’ x 0.535’’ (13.6 mm x 13.6 mm)
1/2’’ OD Line 0.660’’ x 0.660’’ (16.8 mm x 16.8 mm)





Rectangular, 2 Lines Item Standard Dimensions
Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control 2 1/4’’ OD Line

Width: 0.710’’ (18.0 mm)

Height: 0.410’’ (10.4 mm)





Rectangular, 3 Lines Item Standard Dimensions
Uns S32205 Stainless Coil Tubing Duplex 2205 TPV Encapsulated Control 3 1/4’’ OD Line

Width: 0.990’’ (25.1 mm)

Height: 0.410’’ (10.4 mm)
