Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line

Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line
Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line

Large Image :  Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001 : 2015
Model Number: 1 / 4 '' OD x 0.049 '' WT
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters

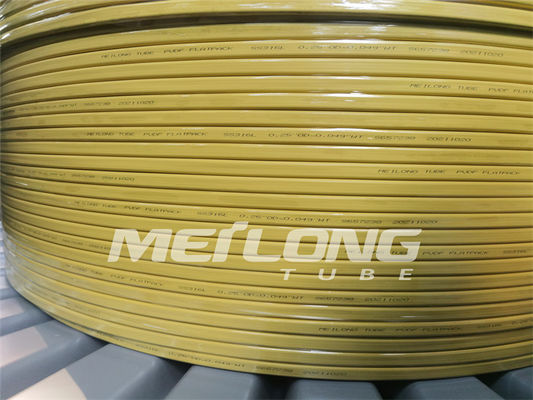

Packaging Details: Level wound coiled on spools/drums, and packed in wooden cases
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100 metric tons per month (including duplex steel tubing, nickel alloy tubing)

Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line

Description
Alloy: Incoloy 825, UNS N08825 Surface: Clean And Bright
Condition: Annealed Properties: Enhanced Tensile And Yield
Feature: High Pressure Tubing Application: Down Hole Hydraulic Control In Oil And Gas Wells
Standard: ASTM B704 Size: Tight Dimensional Tolerances
Application Standard: NACE MR0175 / ISO15156 Test: 100% Length Is Hydraulic Tested
High Light:

Incoloy 825 ss capillary tubes

,

ss capillary tubes UNS N08825

,

Chemical Injection Line With Multi Line

Incoloy 825 Hydraulic Control Line Flatpack with Multi - Line for Oil and Gas Fields



MEILONG offers the encapsulation of control lines to provide increased durability, as well as chemical and corrosion resistance to meet each project’s specialized requirements, we offer different encapsulation types, such as: HDPE (High Density Polyethylene), Santoprene, PVC (Polyvinyl Chloride), Haylar and PVDF (Polyvinylidene Fluoride).



Welded hydraulic control line is floating plug drawn to ASTM specifications and is available in any length. Material types for hydraulic control lines include stainless steel TP316L which is suitable for sweet to moderately corrosive environments, Duplex stainless steel 2205, Super Duplex stainless steel 2507, nickel alloy Incoloy 825 and Inconel 625 are suitable for severely corrosive environments and high working pressures and temperatures. Control system fluids must be compatible with the environments and operating temperatures of the control line.



Control line encapsulation also is available, where requested, to provide additional crush and abrasion resistance during installation. The encapsulation material should be matched for compatibility with well fluids and temperature requirements.

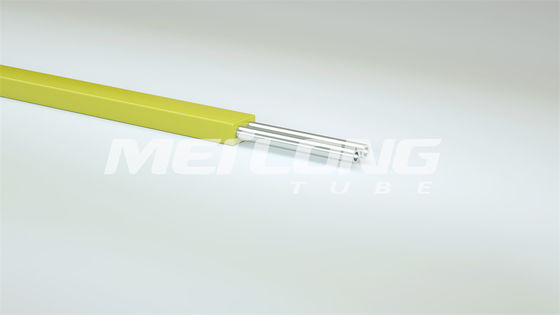

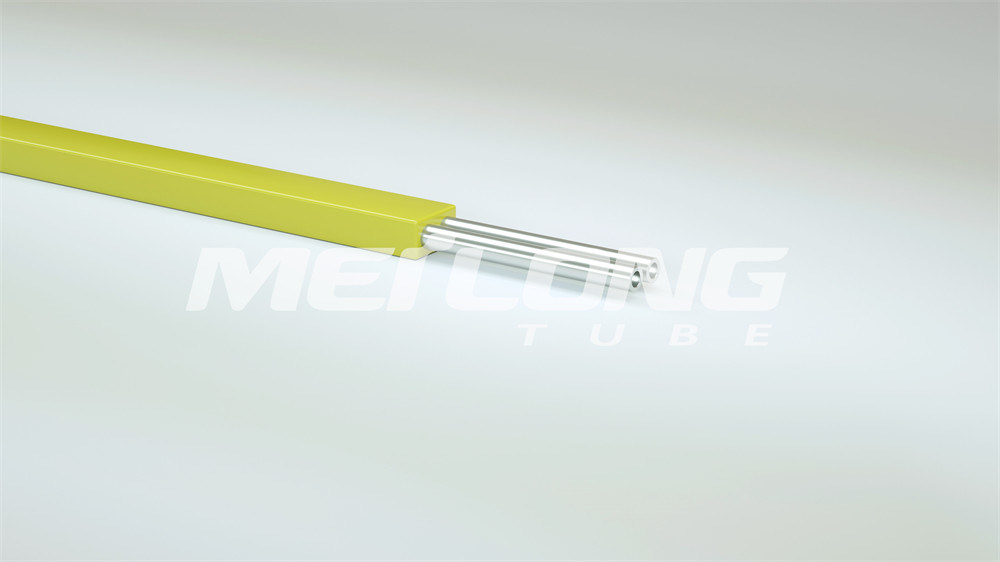

Encapsulated Control Line Flatpack



Encapsulation is a plastic that is extruded over metal tube. Encapsulation prevents damage to the metal tubes during the manufacturing process. The encapsulation also provides additional abrasion resistance and is required if cable protectors are installed to enhance the holding force over each production tubing connection.



Encapsulations are available in a wide range of configurations with options of single pass encapsulation and dual pass encapsulation for added protection.



Application of Flatpack



Flatpacks are commonly used when several different lines are terminated at approximately the same depth in the well.

Common applications include intelligent well systems, deep-set chemical injection lines with downhole gauge cable and safety valve lines with shallow set chemical injection lines. For some applications bumper bars are also encapsulated into the flatpack to provide additional crush resistance.



Standard & Approvals



Control Lines are manufactured according to applicable ASTM standards for each specific material.

Tubes can be supplied flushed, filled, and filtered per client requirements and to the appropriate NAS/SAE standards.



Quality & Testing



- Manufactured in accordance with Standard Inspection and Quality Plans



Design & Construction



- Encapsulation for single line

- Encapsulation profiles to suit customer application

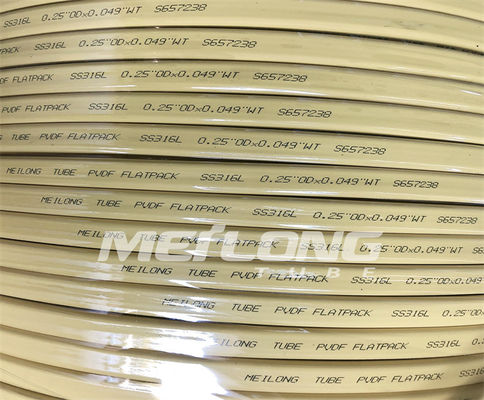

- Custom Line Marking

- Full range of application materials



Encapsulation Materials



- PP (Polypropylene) /TPR (Santoprene) / PA

(Nylon) / PVDF / ETFE (Tefzel) / ECTFE (Halar)

FEP / PFA / ECA 3000



Features of Encapsulated Control Line Flatpack



Maximize protection of downhole line

Increase crush resistance during installation

Protect control line against abrasion and pinching

Eliminate long term stress corrosion failure of control line

Improve clamping profile

Single or multiple encapsulation for ease of running and added protection



Available Alloy Grades for Control Line Tubing Inside Encapsulation



Austenitic: 316L
Duplex:

S31803/S32205

S32750

Nickel alloy:

N08825

N06625



Encapsulation Materials:



MSCL Name Industry Name Temperature Range Abrasion Resistance Resistance to Brines Resistance to Hydrocarbons
Nylon 11 Rilsan 11, Nylon 11, Polyamide -60ºС to 135ºС 5 3 5
Polypropylene Polyolefin -25ºС to 150ºС 3 5 3
TPE, TPR, TPV Santoprene -30ºС to 135ºС 3 5 3
PVDF Solef, Kynar -30ºС to 150ºС 4 4 5
ECTFE Halar -75ºС to 150ºС 5 5 5
ETFE Tefzel -100ºС to 150ºС 5 5 5
FEP Teflon -110ºС to 150ºС 3 5 5
MFA/PFA Teflon -110ºС to 250ºС 3 5 5

5 = Excellent; 1 = Poor



Standard Flatpack Encapsulation Profiles



Round, Single Line Item Standard Dimensions
Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line 0 1/8’’ OD Line 0.250’’ (6.35 mm) Dia.
1/4’’ OD Line 0.433’’ (11.0 mm) Dia.
3/8’’ OD Line 0.535’’ (13.6 mm) Dia.
1/2’’ OD Line 0.660’’ (16.8 mm) Dia.





Square, Single Line Item Standard Dimensions
Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line 1 1/8’’ OD Line 0.250’’ x 0.250’’ (6.35 mm x 6.35 mm)
1/4’’ OD Line 0.433’’ x 0.433’’ (11.0 mm x 11.0 mm)
3/8’’ OD Line 0.535’’ x 0.535’’ (13.6 mm x 13.6 mm)
1/2’’ OD Line 0.660’’ x 0.660’’ (16.8 mm x 16.8 mm)





Rectangular, 2 Lines Item Standard Dimensions
Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line 2 1/4’’ OD Line

Width: 0.710’’ (18.0 mm)

Height: 0.410’’ (10.4 mm)





Rectangular, 3 Lines Item Standard Dimensions
Incoloy 825 Ss Capillary Tubes Hydraulic Control Line Flatpack With Multi Line 3 1/4’’ OD Line

Width: 0.990’’ (25.1 mm)

Height: 0.410’’ (10.4 mm)



Properties of Control Line Tubing in Encapsulation



Seam-welded & floating internal plug redrawn tubing. Supplied in the annealed condition

Continuous length without orbital joint welds



Alloy UNS O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
inch inch inch psi psi psi psi
Incoloy 825 N08825 1/8 0.125 0.028 12,389 45,914 11,266 14,500
Incoloy 825 N08825 1/8 0.125 0.035 15,486 57,392 14,083 17,400
Incoloy 825 N08825 1/4 0.250 0.035 7,281 26,992 8,427 8,700
Incoloy 825 N08825 1/4 0.250 0.049 10,518 38,957 10,979 11,600
Incoloy 825 N08825 1/4 0.250 0.065 14,335 53,127 13,445 16,675
Incoloy 825 N08825 3/8 0.375 0.035 4,683 17,347 5,918 5,075
Incoloy 825 N08825 3/8 0.375 0.049 6,720 24,903 7,919 7,250
Incoloy 825 N08825 3/8 0.375 0.065 9,214 34,142 10,022 10,150
Incoloy 825 N08825 3/8 0.375 0.083 12,018 44,526 12,174 13,775
Incoloy 825 N08825 1/2 0.500 0.049 4,912 18,173 6,164 5,800
Incoloy 825 N08825 1/2 0.500 0.065 6,701 24,831 7,905 7,250
Incoloy 825 N08825 1/2 0.500 0.083 8,740 32,382 9,736 10,150
Incoloy 825 N08825 5/8 0.625 0.049 3,930 14,538 4,931 4,350
Incoloy 825 N08825 5/8 0.625 0.065 5,361 19,865 6,324 5,800
Incoloy 825 N08825 5/8 0.625 0.083 6,846 25,367 8,076 7,975
Incoloy 825 N08825 3/4 0.750 0.049 3,273 12,110 4,108 3,625
Incoloy 825 N08825 3/4 0.750 0.065 4,466 16,547 5,268 5,075
Incoloy 825 N08825 3/4 0.750 0.083 5,703 21,131 6,727 6,525



Theoretical burst pressure based on minimum wall thickness, and minimum tensile strength

Theoretical collapse pressure based on minimum wall thickness, and minimum yield strength

Pressure rating at 100°F (38°C), neutral and static conditions
