FEP TP316L Encapsulated Chemical Injection Line Hydraulic Control Line

FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line
FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line

Large Image :  FEP TP316L Encapsulated Chemical Injection Line Hydraulic Control Line

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001 : 2015
Model Number: 3 / 8 '' OD x 0.065 '' WT
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters

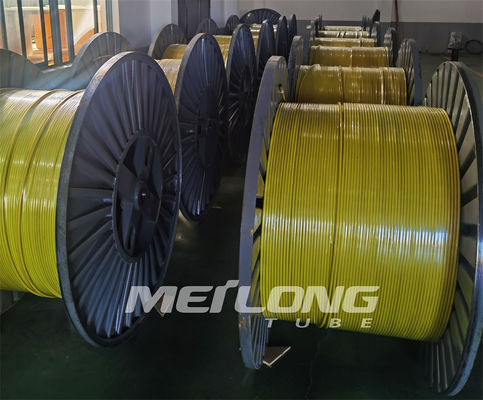

Packaging Details: Level wound coiled on spools/drums, and packed in wooden cases
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100 metric tons per month (including duplex steel tubing, nickel alloy tubing)

FEP TP316L Encapsulated Chemical Injection Line Hydraulic Control Line

Description
Alloy: Super Duplex 2507, UNS S32750 Surface: Clean And Bright
Condition: Annealed Properties: Enhanced Tensile And Yield
Feature: High Pressure Tubing Application: Down Hole Hydraulic Control In Oil And Gas Wells
Standard: ASTM A789 Size: Tight Dimensional Tolerances
Application Standard: NACE MR0175 / ISO15156 Test: 100% Length Is Hydraulic Tested
High Light:

FEP Chemical Injection Line

,

TP316L Chemical Injection Line

,

hydraulic control line ASTM A789

FEP Encapsulated Control Line Flatpack with Single Tube for Downhole Chemical Injection



Meilong Tube offers the encapsulation of control lines to provide increased durability, as well as chemical and corrosion resistance to meet each project’s specialized requirements, we offer different encapsulation types, such as: HDPE (High Density Polyethylene), Santoprene, PVC (Polyvinyl Chloride), Haylar and PVDF (Polyvinylidene Fluoride).



Welded hydraulic control line is floating plug drawn to ASTM specifications and is available in any length. Material types for hydraulic control lines include stainless steel TP316L which is suitable for sweet to moderately corrosive environments, Duplex stainless steel 2205, Super Duplex stainless steel 2507, nickel alloy Incoloy 825 and Inconel 625 are suitable for severely corrosive environments and high working pressures and temperatures. Control system fluids must be compatible with the environments and operating temperatures of the control line.



Control line encapsulation also is available, where requested, to provide additional crush and abrasion resistance during installation. The encapsulation material should be matched for compatibility with well fluids and temperature requirements.



Encapsulated Control Line Flatpack



Encapsulation is a plastic that is extruded over metal tube. Encapsulation prevents damage to the metal tubes during the manufacturing process. The encapsulation also provides additional abrasion resistance and is required if cable protectors are installed to enhance the holding force over each production tubing connection.



Encapsulations are available in a wide range of configurations with options of single pass encapsulation and dual pass encapsulation for added protection.



Application of Flatpack



Flatpacks are commonly used when several different lines are terminated at approximately the same depth in the well.

Common applications include intelligent well systems, deep-set chemical injection lines with downhole gauge cable and safety valve lines with shallow set chemical injection lines. For some applications bumper bars are also encapsulated into the flatpack to provide additional crush resistance.



Standard & Approvals



Control Lines are manufactured according to applicable ASTM standards for each specific material.

Tubes can be supplied flushed, filled, and filtered per client requirements and to the appropriate NAS/SAE standards.



Quality & Testing



• Chemical

• Corrosion

• Dimensional

• Eddy-current

• Hydrostatic

• Elongation

• Hardness

• Flare

• Flatten

• Grain size

• Metallurgical

• Positive material identification (PMI)

• Surface roughness

• Tensile

• Yield



Design & Construction



- Encapsulation for single line

- Encapsulation profiles to suit customer application

- Custom Line Marking

- Full range of application materials



Encapsulation Materials



Polypropylene -25C to 150C Good resistance to brines
Santoprene -30C to 150C Good resistance to brines
Nylon 11 -60C to 135C Good resistance to hydrocarbons, good abrasion resistance
PVDF -30C to 150C Good resistance to brines and hydrocarbons, good abrasion resistance
FEP -110C to 200C Good resistance to brines and hydrocarbons



Features of Encapsulated Control Line Flatpack



Maximize protection of downhole line

Increase crush resistance during installation

Protect control line against abrasion and pinching

Eliminate long term stress corrosion failure of control line

Improve clamping profile

Single or multiple encapsulation for ease of running and added protection



Available Alloy Grades for Control Line Tubing Inside Encapsulation



Alloy Tubing

Hydraulic

Control

Chemical

Injection

Chloride Pitting /

Crevice Corrosion Resistance

H2S / CO2

Resistance

Chloride Stress Corrosion Cracking (SCC) Resistance UNS / ASTM Specification

Stainless 316L – 170 MPa min. yield strength

Seam-Welded Pressure Tubing

      S31603 / A269

Duplex 2205 – 485 MPa min. yield strength

Seam-Welded Pressure Tubing

S32205 / A789

Duplex 2507 – 550 MPa min. yield strength

Seam-Welded Pressure Tubing

S32750 / A789

Incoloy 825 – 240 MPa min. yield strength

Seam-Welded Pressure Tubing

N08825 / B704

Inconel 625 – 414 MPa min. yield strength

Seam-Welded Pressure Tubing

N06625 / B704



Chemical Composition of Super Duplex 2507



Carbon Manganese Phosphorus Sulfur Silicon Nickel Chromium Molybdenum Nitrogen Copper
% % % % % % % % % %
max. max. max. max. max.         max.
0.03 1.20 0.035 0.020 0.80 6.0-8.0 24.0-26.0 3.0-5.0 0.24-0.32 0.5



Duplex 2507 is a super duplex stainless steel designed for applications which demand exceptional strength and corrosion resistance. Alloy 2507 has 25% chromium, 4% molybdenum, and 7% nickel. This high molybdenum, chromium and nitrogen content results in excellent resistance to chloride pitting and crevice corrosion attack and the duplex structure provides 2507 with exceptional resistance to chloride stress corrosion cracking.



Usage of Duplex 2507 should be limited to applications below 600° F (316° C). Extended elevated temperature exposure can reduce both the toughness and corrosion resistance of alloy 2507.

Duplex 2507 possesses excellent mechanical properties. Often a light gauge of 2507 material can be used to achieve the same design strength of a thicker nickel alloy. The resulting savings in weight can dramatically reduce the overall cost of fabrication.



Corrosion Resistance of Super Duplex 2507



2507 Duplex is highly resistant to uniform corrosion by organic acids such as formic and acetic acid. It is also highly resistant to inorganic acids, especially if they contain chlorides. Alloy 2507 is highly resistant to carbide-related intergranular corrosion. Due to the ferritic portion of the duplex structure of the alloy it is very resistant to stress corrosion cracking in warm chloride containing environments. Through additions of chromium, molybdenum and nitrogen localized corrosion such as pitting and crevice attack are improved. Alloy 2507 has excellent localized pitting resistance.



Standard Flatpack Encapsulation Profiles



Round, Single Line Item Standard Dimensions
FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line 0 1/8’’ OD Line 0.250’’ (6.35 mm) Dia.
1/4’’ OD Line 0.433’’ (11.0 mm) Dia.
3/8’’ OD Line 0.535’’ (13.6 mm) Dia.
1/2’’ OD Line 0.660’’ (16.8 mm) Dia.





Square, Single Line Item Standard Dimensions
FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line 1 1/8’’ OD Line 0.250’’ x 0.250’’ (6.35 mm x 6.35 mm)
1/4’’ OD Line 0.433’’ x 0.433’’ (11.0 mm x 11.0 mm)
3/8’’ OD Line 0.535’’ x 0.535’’ (13.6 mm x 13.6 mm)
1/2’’ OD Line 0.660’’ x 0.660’’ (16.8 mm x 16.8 mm)





Rectangular, 2 Lines Item Standard Dimensions
FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line 2 1/4’’ OD Line

Width: 0.710’’ (18.0 mm)

Height: 0.410’’ (10.4 mm)





Rectangular, 3 Lines Item Standard Dimensions
FEP TP316L  Encapsulated Chemical Injection Line Hydraulic Control Line 3 1/4’’ OD Line

Width: 0.990’’ (25.1 mm)

Height: 0.410’’ (10.4 mm)



Properties of Hydraulic Control Line Tubing in Flatpack



Seam-welded & floating internal plug redrawn tubing. Supplied in the annealed condition

Continuous length without orbital joint welds



Alloy UNS O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
inch inch inch psi psi psi psi
Super Duplex 2507 S32750 1/8 0.125 0.028 19,177 47,169 19,177 21,025
Super Duplex 2507 S32750 1/8 0.125 0.035 23,971 58,961 23,971 26,100
Super Duplex 2507 S32750 1/4 0.250 0.035 11,986 29,481 11,986 13,050
Super Duplex 2507 S32750 1/4 0.250 0.049 16,816 35,949 15,817 18,850
Super Duplex 2507 S32750 1/4 0.250 0.065 22,300 45,448 19,522 24,650
Super Duplex 2507 S32750 3/8 0.375 0.035 8,009 25,138 8,372 8,700
Super Duplex 2507 S32750 3/8 0.375 0.049 11,205 28,536 11,296 12,325
Super Duplex 2507 S32750 3/8 0.375 0.065 14,873 33,141 14,346 16,675
Super Duplex 2507 S32750 3/8 0.375 0.083 18,977 39,426 17,379 21,025
Super Duplex 2507 S32750 1/2 0.500 0.049 8,408 25,532 8,753 9,425
Super Duplex 2507 S32750 1/2 0.500 0.065 11,150 28,470 11,259 12,325
Super Duplex 2507 S32750 1/2 0.500 0.083 14,237 32,275 13,838 15,950
Super Duplex 2507 S32750 5/8 0.625 0.049 6,719 23,918 7,137 7,250
Super Duplex 2507 S32750 5/8 0.625 0.065 8,898 26,056 9,243 10,150
Super Duplex 2507 S32750 5/8 0.625 0.083 11,386 35,306 11,459 12,325
Super Duplex 2507 S32750 3/4 0.750 0.049 5,593 22,921 6,029 5,800
Super Duplex 2507 S32750 3/4 0.750 0.065 7,427 24,587 7,827 7,975
Super Duplex 2507 S32750 3/4 0.750 0.083 9,480 26,647 9,770 10,150



Theoretical burst pressure based on minimum wall thickness, and minimum tensile strength

Theoretical collapse pressure based on minimum wall thickness, and minimum yield strength

Pressure rating at 100°F (38°C), neutral and static conditions
