Capillary Stainless Steel Coiled Tubing with Close Dimensional Tolerance for Hydraulic Control and Chemical Injection 10
Product Description:
Meilong Tube manufactures a range of seamless and redrawn, welded and redrawn coiled tubing made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. These tubing products are specially tailored for the oil and gas, geothermal industry and used as hydraulic control lines and chemical injection lines.
Meilong's manufacturing capabilities and processes allow us to produce the longest continuous chemical injection line tubing in the industry. The long coils provide a series of benefits such as short hydraulic response time, greater collapse strength, the elimination of methanol permeation and less potential for defects and failures. The smooth inner surface is ideal for chemical injection systems.
The 2282 Duplex stainless steel is a nitrogen-enhanced slightly ferritic stainless steel that was developed to address certain corrosion problems. It offers a combination of improved corrosion resistance and high strength when compared to austenitic stainless steels. The alloy can be used in temperatures below 600°F with assurance of corrosion-resistant performance. It provides good resistance to pitting and crevace corrosion, making it suitable for brackish water, bleaching operations, closed loop water systems and food processing applications.
Features:
Each one tubing coil is a completely continuous length free of orbital welds, and is hydrostatically tested at minimum 10,000 psi. The test can be witnessed on site by third-party inspectors like SGS, BV, DNV. In addition, some other tests are provided to ensure the material quality, including eddy current test, chemistry test, flattening test, flaring test, tensile test, yield test, elongation test, hardness test, etc.
To ensure the cleanliness of inside and outside surface of control lines & chemical injection lines, vacuum annealing is conducted for all the injected lines. Vacuum annealing not only volatizes metallic oxides, but also removes any residual degreasing solvents or drawing lubricants. This process not only guarantees a bright and aesthetic surface, but also remarkable mechanical properties.
The tubing coils by Meilong Tube have these features as well: close dimensional tolerances, superior surface finish, improved mechanical characteristics, high cleanness of inside surface, controlled ovality, eccentricity, and roundness.
Technical Parameters:
We are supplying seam-welded and floating internal plug redrawn tubing, which is made of Duplex 2205 (UNS S32205), in the annealed condition. What’s more, it is continuous with no orbital joint welds. Here are the parameters we are offering: O.D (inch), W.T. (inch), working pressure (Psi),burst pressure (psi), collapse pressure (psi) and test pressure (psi). The theoretical burst pressure is based on the minimum wall thickness and minimum tensile strength, and the theoretical collapse pressure based on the minimum wall thickness and minimum yield strength. What's more, all the pressure ratings here are at 100°F (38°C) neutral and static conditions.
<
Applications:
Coiled alloy tubing is widely used to meet the various needs of different industries. The benefits of coiled alloy tubing are its durability and flexibility, which allows them to be used in different applications.
In the chemical and petrochemical industry, coiled alloy tubing is often used for chemical injection applications. It is designed to be resistant to the corrosive nature of chemicals, enabling it to effectively hold and transport them.
In the marine and oil & gas industries, coiled alloy tubing is used to construct hydraulic control lines and safety valves for subsea use. In addition, velocity strings, work strings, and steel umbilicals are also made with coiled alloy tubing, allowing them to withstand harsh underwater conditions.
In the geothermal industry, coiled alloy tubing is also commonly used to transfer fluids and vapors from these systems. The combination of corrosion resistance and temperature tolerance makes this tubing an ideal choice for geothermal applications.
Customization:

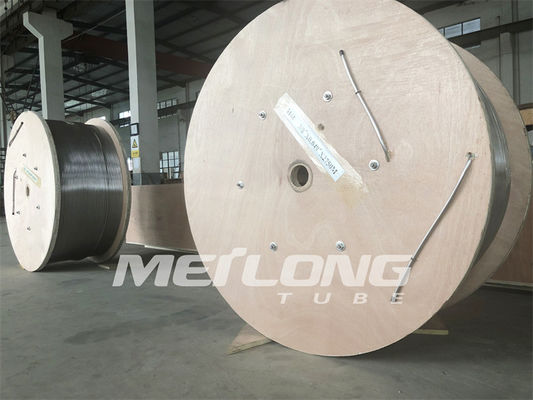

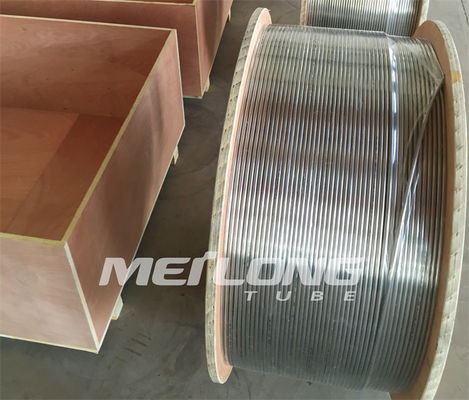

We offer the custom-made Stainless Steel Coiled Tubing with the brand name Meilong Tube and the model number 3/8''OD x 0.065''WT. The product is manufactured in China and certified with ISO9001. We provide a minimum order quantity of 1 coil with wooden case packaging and the delivery time is 7 days. We accept payment with T/T, L/C and supply 150 metric tons per month. The material used is Duplex 2205 and it is used for Down Hole Application In Oil And Gas Industry. The product is 100% Length Is Hydrostatic Tested and is conditioned annealed. The surface is highly clean and bright.
Our capillary stainless steel coiled tubing is well-known for its high-quality and reliable performance for the downhole application in oil and gas industry. Our stainless steel coiled tubing is highly durable and cost-effective, providing you with the best value for money.
Support and Services:
Technical Support and Service for Stainless Steel Coiled Tubing
We provide comprehensive technical support and service to ensure high performance of our stainless steel coiled tubing products. Our team of industry professionals are available to assist customers with product selection, installation, and troubleshooting.
Our technical support staff is highly experienced in the use of stainless steel coiled tubing and is able to provide solutions to complex problems. We provide customers with the latest technical information and product data, as well as timely updates on new products and services.
We also provide installation and maintenance services for our stainless steel coiled tubing products. Our installation technicians are trained in the proper use and maintenance of our products, and will ensure that your stainless steel coiled tubing is properly installed for optimal performance.
If you have any questions or need assistance with our stainless steel coiled tubing products, please do not hesitate to contact us. We look forward to helping you find the best solutions for your project needs.
| Alloy |
UNS |
O.D. |
W.T. |
Working Pressure |
Burst Pressure |
Collapse Pressure |
Test Pressure |
| Duplex 2205 |
S32205 |
1/8 |
0.125 |
0.028 |
15,544 |
41,704 |
15,544 |
17,400 |
| Duplex 2205 |
S32205 |
1/8 |
0.125 |
0.035 |
19,430 |
52,130 |
19,430 |
21,025 |
| Duplex 2205 |
S32205 |
1/4 |
0.250 |
0.035 |
9,715 |
26,065 |
9,715 |
10,875 |
| Duplex 2205 |
S32205 |
1/4 |
0.250 |
0.049 |
13,631 |
31,784 |
12,821 |
14,500 |
| Duplex 2205 |
S32205 |
1/4 |
0.250 |
0.065 |
18,076 |
40,182 |
15,824 |
19,575 |
| Duplex 2205 |
S32205 |
3/8 |
0.375 |
0.035 |
6,492 |
22,226 |
6,786 |
7,250 |
| Duplex 2205 |
S32205 |
3/8 |
0.375 |
0.049 |
9,082 |
25,230 |
9,156 |
10,150 |
| Duplex 2205 |
S32205 |
3/8 |
0.375 |
0.065 |
12,056 |
29,302 |
11,629 |
13,050 |
| Duplex 2205 |
S32205 |
3/8 |
0.375 |
0.083 |
15,382 |
34,858 |
14,087 |
16,675 |
| Duplex 2205 |
S32205 |
1/2 |
0.500 |
0.049 |
6,815 |
22,574 |
7,095 |
7,250 |
| Duplex 2205 |
S32205 |
1/2 |
0.500 |
0.065 |
9,038 |
25,172 |
9,126 |
10,150 |
| Duplex 2205 |
S32205 |
1/2 |
0.500 |
0.083 |
11,540 |
28,536 |
11,217 |
13,050 |
| Duplex 2205 |
S32205 |
5/8 |
0.625 |
0.049 |
5,446 |
21,147 |
5,785 |
5,800 |
| Duplex 2205 |
S32205 |
5/8 |
0.625 |
0.065 |
7,213 |
23,038 |
7,492 |
7,975 |
| Duplex 2205 |
S32205 |
5/8 |
0.625 |
0.083 |
9,229 |
31,216 |
9,288 |
10,150 |
| Duplex 2205 |
S32205 |
3/4 |
0.750 |
0.049 |
4,534 |
20,265 |
4,887 |
5,075 |
| Duplex 2205 |
S32205 |
3/4 |
0.750 |
0.065 |
6,020 |
21,738 |
6,344 |
6,525 |
| Duplex 2205 |
S32205 |
3/4 |
0.750 |
0.083 |
7,684 |
23,560 |
7,919 |
