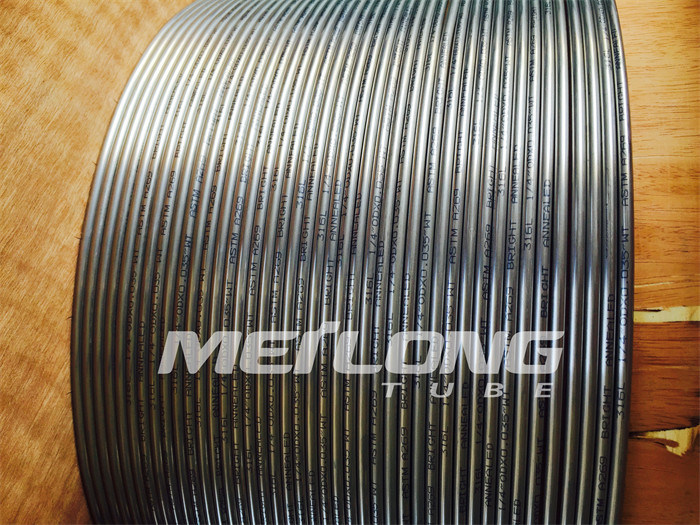

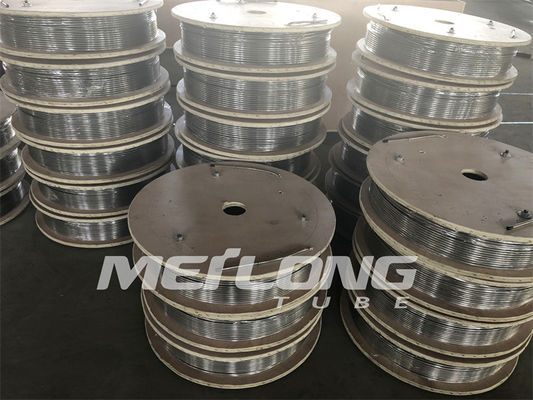

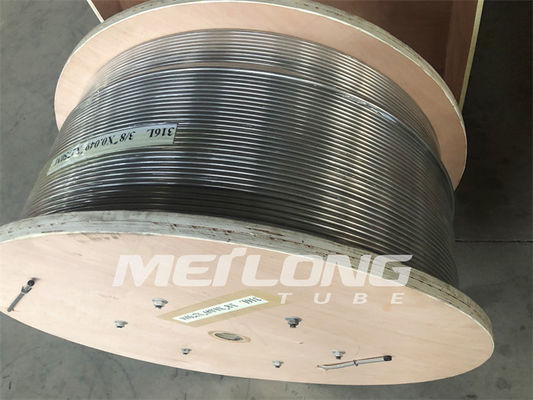

316L Coiled Stainless Steel Coiled Tubing 10000Psi

Stainless Steel 316L Coiled Tubing Injection Line with Working Pressure Above 10000 Psi

Product Description:

Meilong Tube provides comprehensive tubing products for the oil and gas sector. The products are capable of standing up to harsh subsea and downhole conditions, yielding results that meet all quality requirements. A wide selection of corrosion-resistant stainless steels, including nickel alloys, are used for manufacturing the tubing. Moreover, the company has extensive experience in this sector, from technological enhancements for the development of subsea in 1999 to the novel projects of today.

TP316L is an austenitic chromium-nickel stainless steel that has a low carbon content. It offers good corrosion resistance to organic acids at high concentrations and moderate temperatures, as well as inorganic acids at moderate concentrations and temperatures. It also withstands salt solutions like sulphates, and caustic environments. While the steel is quite resilient, it does retain a weakness to stress corrosion cracking at temperatures above 140°F if subjected to tensile stress and contact with certain solutions containing chlorides. Therefore, it must be avoided at all cost in such circumstances.

Compared to other steels in the same category, TP316L has better resistance to intergranular corrosion due to its low carbon content. This makes it a more dependable alternative for long-term and intensive projects.



Features:

Meilong Tube operates from a complex of buildings totaling 20,000 square meters.

Tube mill is used to form and gas-tungsten arc and laser beam weld the strip stock on multiple tube mills which are designed and fabricated in Meilong Tube. A process called sinking, is a cold working process in which tubing is pulled through a lubricated die without an internal plug. In certain cases, due to the manufacturing limitation, welding tubing is not able to reach the targeted size. Hence, larger outside diameter will be welded and the tubing will go through a reduction and heat treatment process.

The floating-plug operation is another cold working process in which tubing is pulled through a lubricate die with an internal floating plug to control tubing's inside diameter. Finally, off-mill furnace with a reducing atmosphere is used to heat-treat the tubing, aiming to achieve specified mechanical properties and corrosion resistance.



Technical Parameters:



Applications:

Transmission & Control Our custom-engineered transmission solutions include single- and multi-speed systems, monitors and control equipment for downhole safety valve control, subsea safety valve control, umbilical control lines, topside instrumentation and impulse lines, wellhead control panel and downhole gauge cable. We understand that as operators advance and innovate their engineering techniques, the performance of these systems is critical. Our products are designed for exceptional performance and efficiency even in the most demanding applications.

Customization:



Support and Services:

We provide comprehensive technical support and service for our Stainless Steel Coiled Tubing products. Our experienced team of engineers is available to help you find the right solution for your application and provide advice on the correct product selection, installation, and maintenance.

We also offer a range of value-added services such as custom fabrication, precision machining, and finishing. Our fabrication services provide you with the flexibility to customize your products to meet your exact specifications.

For more information about our Stainless Steel Coiled Tubing products and services, please contact us today.
