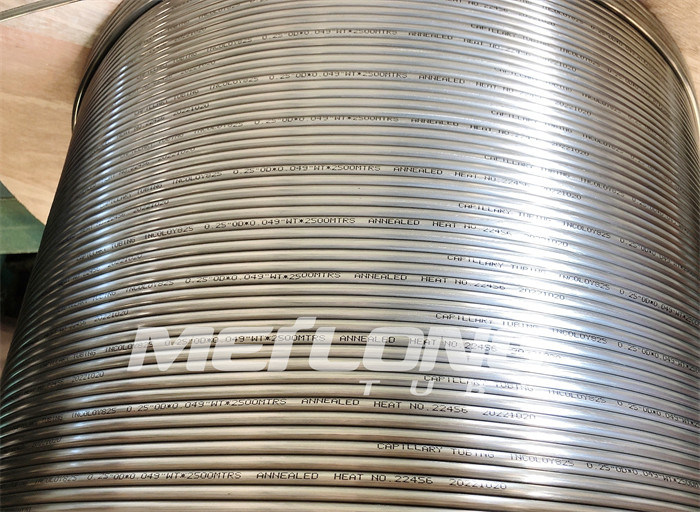

High Pressure Geothermal Nickel Alloy Tubing ASTM B444 Annealed Hydraulic

Certification
China Suzhou Meilong Tube Co., Ltd. certification
I'm Online Chat Now

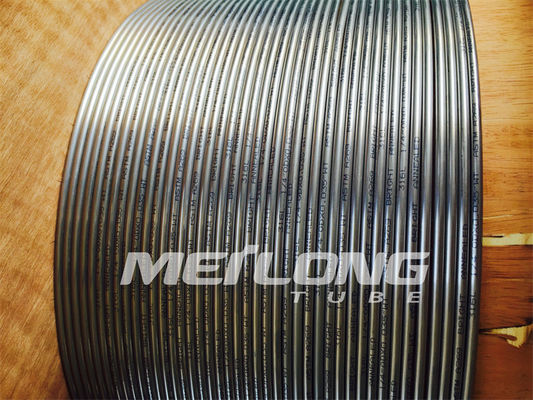

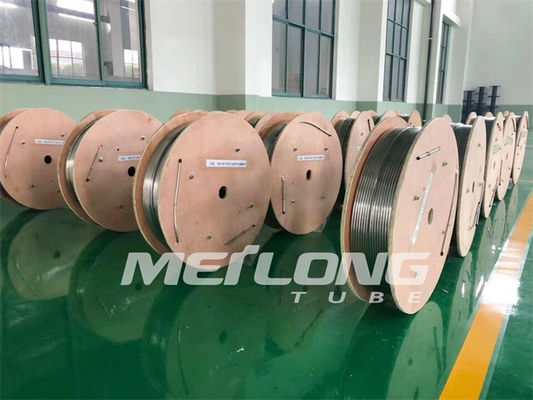

High Pressure Geothermal Nickel Alloy Tubing ASTM B444 Annealed Hydraulic

High Pressure Geothermal  Nickel Alloy Tubing ASTM B444 Annealed Hydraulic
High Pressure Geothermal  Nickel Alloy Tubing ASTM B444 Annealed Hydraulic High Pressure Geothermal  Nickel Alloy Tubing ASTM B444 Annealed Hydraulic High Pressure Geothermal  Nickel Alloy Tubing ASTM B444 Annealed Hydraulic

Large Image :  High Pressure Geothermal Nickel Alloy Tubing ASTM B444 Annealed Hydraulic

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Model Number: 3/8''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

High Pressure Geothermal Nickel Alloy Tubing ASTM B444 Annealed Hydraulic

Description
Feature: Considerably Enhanced Mechanical Properties Length: Up To 12000 Meters
NDT: 100% Length Is Eddy Current Tested Pressure Test: 100% Length Is Hydrostatic Tested
Standard: ASTM A789, ASTM B704, ASTM B423, ASTM B444 Tubing Diameter: Controlled Ovality And Eccentricity
Process: Cold Drawing Pressure Rate: Above 10000 Psi
High Light:

High Pressure Nickel Alloy Tubing ODM

,

Nickel Alloy Tubing ASTM B444

,

Annealed high pressure capillary tubing

High Pressure ASTM B444 Annealed Hydraulic Geothermal Tubing

Product Description:

Meilong Tube's unique manufacturing capabilities and processes allow us to produce the longest continuous chemical injection line tubing available in stainless steels and high nickel alloys. Our long length tubing coils are designed for extensive use with subsea and onshore chemical injection wells. They come without orbital welds, reducing the risk of defects and failures. Moreover, our coils boast an extremely clean and smooth inside surface, providing excellent and quick hydraulic response time, great collapse strength, and eliminating methanol permeation.

Chemical injection is a method of running a small-diameter conduit alongside production tubulars in order to inject inhibitors or other treatments during production. Particularly in high hydrogen sulfide [H2S] concentrations or severe scale deposition conditions, injection of chemical treatments and inhibitors can help. However, fluids with high foaming tendency may require mechanical or chemical solutions for effective implementation. Mechanical foam-breaking devices like low-shear inlet momentum breakers are preferred for subsea applications, as they are more cost-effective to install and operate compared to a chemical injection system.

When it comes to a three-phase separation, stability of the oil/water emulsion/dispersion depends on such factors as viscosities of the oil and water, concentrations of surface-active impurities, as well as changes in water cut. Generally, surface destabilizing chemicals and addition of heat will solve the problem. Once the emulsion is broken down, mechanical packs can be used to make droplets coalescence and settling even faster.

In subsea operations, an umbilical is required to provide power, control, and chemical injection for the seabed processing facilities. These may include high-voltage power, remote-control and monitoring signals, as well as chemicals such as corrosion inhibitors, naturally occurring compounds, corrosion products, and formation fines.



Features:



Every tubing coil is free of orbital welds and is one continual length. It undergoes a hydrostatic test with a pressure rating of 10,150 psi or higher. Third party inspectors from SGS, BV, or DNV can witness the test on site.



Additional tests may be conducted, such as eddy current, chemical, flattening, flaring, tensile, yield, elongation, and hardness, in order to ensure high quality materials.



Technical Parameters:

Super Duplex 2507

The table below shows the chemical composition:

Elements Max %
Carbon 0.03
Manganese 1.20
Phosphorus 0.035
Sulfur 0.020
Silicon 0.80
Nickel 6.0-8.0
Chromium 24.0-26.0
Molybdenum 3.0-5.0
Nitrogen 0.24-0.32
Copper 0.5

And the Norm Equivalence is as follows:

Grade UNS No Euro norm No Euro norm Name Alloy ASTM/ASME EN10216-5
2507 S32750     Alloy ASTM/ASME EN10216-5

Finally, here's a specification of Super Duplex 2507's working pressure, burst pressure, collapse pressure and test pressure:

UNS O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
S32750 1/8 0.125 0.028 19,177 47,169 19,177
    0.035 23,971 58,961 23,971 26,100
  1/4 0.250 0.035 11,986 29,481 11,986
    0.049 16,816 35,949 15,817 18,850
    0.065 22,300 45,448 19,522 24,650
  3/8 0.375 0.035 8,009 25,138 8,372
    0.049 11,205 28,536 11,296 12,325
    0.065 14,873 33,141 14,346 16,675
    0.083 18,977 39,426 17,379 21,025
  1/2 0.500 0.049 8,408 25,532 8,753
    0.065 11,150 28,470 11,259 12,325
    0.083 14,237 32,275 13,838 15,950
  5/8 0.625 0.049 6,719 23,918 7,137
    0.065 8,898 26,056 9,243 10,150
    0.083 11,386 35,306 11,459 12,325
  3/4 0.750 0.049 5,593 22,921 6,029
    0.065 7,427 24,587 7,827 7,975
    0.083 9,480 26,647 9,770 10,150
  1 1.000 0.065 5,940 22,925 6,367
    0.083 7,497 24,469 8,169 7,650
    0.109 9,706 26,473 10,740 10,800


Applications:

In today's rapidly changing world, it's important to stay up-to-date with the latest advancements in oil and gas production. From control lines and chemical injection lines to electrical lines and multi-line flat packs, oil and gas operators face a wide array of challenges.

Fortunately, there are solutions to help address these issues. Hydraulic lines, tubing encapsulated conductors, intelligent well completions, capillary tubing and other such tools can provide invaluable assistance when it comes to efficiently and safely producing oil and gas.

With the right equipment, oil and gas operators can confidently achieve their goals and ensure a smooth and successful production process.



Customization:

Meilong Tube is pleased to offer custom-made Geothermal Tubing solutions for your needs. Our Geothermal Tubing products include Capillary Tubing, Chemical Injection Line, Coil, Coiled Tube, and Control Line. Our products are made from high quality materials and are designed to meet your specific requirements.

Brand Name: Meilong Tube
Model Number: 3/8''OD x 0.049''WT
Place of Origin: China
Minimum Order Quantity: 1 coil
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month
Size: Close Dimensional Tolerance
Length: Up To 12000 Meters
Surface: Highly Clean And Bright
Pressure rate: Above 10000 Psi
Pressure test: 100% Length Is Hydrostatic Tested

Our Geothermal Tubing is designed for long-term use and has a long lifespan. We use advanced manufacturing techniques to ensure our products are of the highest quality and are delivered on time. We are dedicated to providing you with the best Geothermal Tubing solutions that meet your needs and budget.



Support and Services:

Geothermal Tubing Technical Support and Service

To ensure that our customers receive the best possible service and support, we offer a range of technical support and services for our Geothermal Tubing products. These include:

  • 24/7 telephone and online technical support
  • On-site and remote installation
  • Regular maintenance and inspection
  • Troubleshooting and repair
  • Replacement parts and components
  • Product training and education

We take pride in providing excellent customer service and technical support for our Geothermal Tubing products. If you have any questions or concerns about our technical support and services, please do not hesitate to contact us.



Packing and Shipping:

Packaging and Shipping

Geothermal Tubing is shipped in strong, durable boxes and is secured with foam or other protective material. The packaging is designed to ensure that the product arrives in perfect condition to its destination. All shipments are tracked and measured for accuracy.
