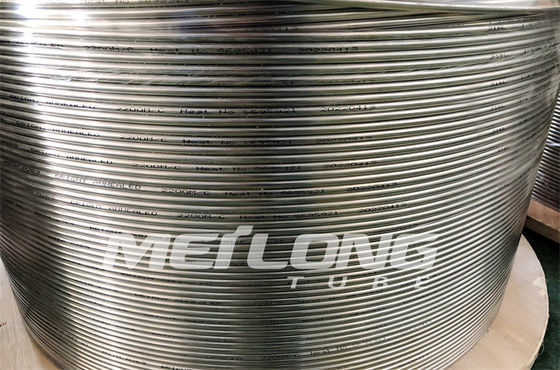

Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line

Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line
Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line

Large Image :  Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Model Number: 3/8''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil

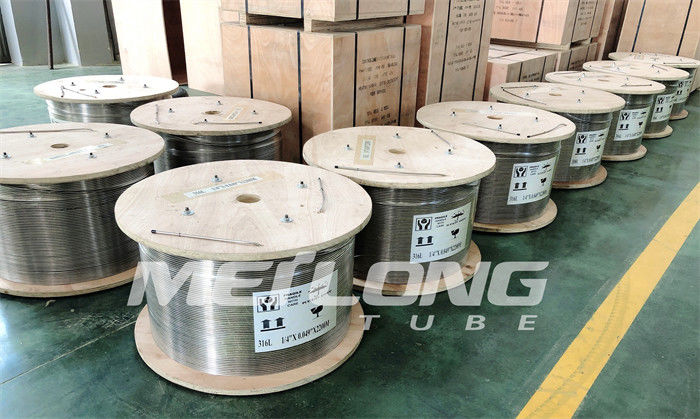

Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

Geothermal Nickel Alloy Tubing Cold Drawn Seamless Tubing Injection Line

Description
Surface: Highly Clean And Bright Pressure Rate: Above 10000 Psi
Pressure Test: 100% Length Is Hydrostatic Tested Orbital Welds: Continuous Length Without Orbital Welds
Condition: Annealed Length: Up To 12000 Meters
Material: Super Duplex 2507, Incoloy 825, Inconel 625 NDT: 100% Length Is Eddy Current Tested
High Light:

Geothermal Nickel Alloy Tubing

,

Nickel Alloy Tubing 10000psi

,

2507 cold drawn seamless tubing

Nickel Alloy Geothermal Tubing with Cold Drawing Highly Clean and Bright Surface Continuous Length Without Orbital Welds

Product Description:

Meilong Tube's Downhole Control Lines

Meilong Tube's downhole control lines are primarily used as communication conduits for hydraulically operated downhole devices in oil, gas, and water-injection wells. These lines can handle extreme harsh conditions, and they can be custom configured for a variety of applications and downhole components.

The material selection is based on different criteria such as bottomhole temperature, hardness, tensile and tear strength, water absorption and gas permeability, oxidation, and abrasion and chemical resistance. Furthermore, they have undergone extensive development, including crush testing and high-pressure autoclave well simulation, showing that these lines have a higher loading capacity which can maintain functional integrity.

Duplex 2507

Duplex 2507 is a super duplex stainless steel that is designed for applications which require strength and corrosion resistance. It is comprised of 25% chromium, 4% molybdenum, and 7% nickel. The higher molybdenum, chromium, and nitrogen content makes it resistant to chloride pitting and crevice corrosion attack. In addition, the duplex structure gives it exceptional resistance against chloride stress corrosion cracking.

Duplex 2507 can be used to lower the overall cost of fabrication due to its excellent mechanical properties. As it has a light gauge, it is able to achieve the same strength as thicker nickel alloy materials, thus reducing a product's overall weight.

Duplex 2507 is highly resistant to uniform corrosion by organic acids, such as formic and acetic acid, as well as inorganic acids with chlorides. Its ferritic portion of the duplex structure makes it highly resistant to stress corrosion cracking in warm chloride containing environments. In addition, localized corrosion such as pitting and crevice attack are improved through the addition of chromium, molybdenum, and nitrogen, and is shown to have excellent resistance to pitting.

However, due to the structure, it is important to note that usage of Duplex 2507 should be limited to applications below 600° F (316° C), and that exposure to higher temperatures can lead to a reduction in toughness and corrosion resistance of the alloy.



Features:

Features, Advantages and Benefits

Our control lines are supplied in orbital-weld-free lengths of up to 40,000 feet (12,192 meters), so we can maximize their reliability. Additionally, a variety of single, double, or triple flat-packs are available. These can be combined with downhole electrical cables and/or bumper wires for ease of operation and deployment.

We employ the welded-and-plug-drawn production method, which results in a smooth, round tube. This ultimately allows us to consistently achieve long-term metal seals on our terminations. Furthermore, the encapsulation materials we use are selected specifically to be suitable to well conditions, so they can ensure reliability and longevity.



Technical Parameters:

Dimension Tolerance

According to ASTM A789 / ASME SA789, UNS S32205, UNS S32750, the tolerance of outside diameter and wall thickness are described as following:

For the pipe with O.D. smaller than 1/2’’ (12.7 mm), the O.D. tolerance is ±0.005’’ (±0.13 mm) and the wall thickness tolerance is ±15%.

For the pipe with O.D between 1/2’’ and 1’’ (12.7-25.4 mm), the O.D. tolerance is ±0.005’’ (±0.13 mm) and the wall thickness tolerance is ±10%.

Meilong Tube Standard

On the other hand, Meilong Tube provides even more precise tubes. The tolerance of outside diameter and wall thickness are described as following:

For the pipe with O.D. smaller than 1/2’’ (12.7 mm), the O.D. tolerance is ±0.004’’ (±0.10 mm) and the wall thickness tolerance is ±10%.

For the pipe with O.D between 1/2’’ and 1’’ (12.7-25.4 mm), the O.D. tolerance is ±0.004’’ (±0.10 mm) and the wall thickness tolerance is ±8%.



Applications:

For applications in the oil and gas industry, we provide capillary coiled alloy tubing for efficient chemical injection, with bare and encapsulated Hydraulic control line for use in subsea safety valves.

We also specialize in supplying velocity strings, work strings, and steel tube umbilicals used in optimization of oil recovery, realizing the maximum efficiency of all operations.

Additionally, we supply high-performance geothermal coiled alloy tubing for enhanced energy production, as well as for high-temperature services.



Customization:

Geothermal Tubing

Brand Name: Meilong Tube
Model Number: 3/8''OD x 0.049''WT
Place of Origin: China
Minimum Order Quantity: 1 coil
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month
Condition: Annealed
Size: Close Dimensional Tolerance
NDT: 100% Length Is Eddy Current Tested
Length: Up To 12000 Meters
Standard: ASTM A789, ASTM B704, ASTM B423, ASTM B444

Geothermal Tubing is perfect for chemical injection line, control line or high pressure hydraulic tubing. It's designed with close dimensional tolerance and is 100% length eddy current tested, making it reliable for many tough applications. Meilong Tube's geothermal tubing is ASTM A789, ASTM B704, ASTM B423, and ASTM B444 certified with annealed condition and up to 12000 meters length.



Support and Services:

Geothermal Tubing Technical Support and Service

At ABC Company, we provide technical support and service for our Geothermal Tubing products. Our team of experienced professionals are here to help you navigate your product and answer any questions you may have.

Technical Support

We offer technical support for our Geothermal Tubing products. Our team of experts can help you troubleshoot any issues you may have, as well as provide guidance on installation and maintenance of your product.

Customer Service

At ABC Company, we strive to provide the best customer service for our Geothermal Tubing products. We are available to answer any questions or concerns you may have about your product. We also offer a comprehensive warranty and return policy.



Packing and Shipping:

Geothermal Tubing packaging and shipping involves taking special precautions to ensure that the product is not damaged during transit. The tubing is typically wrapped in a protective foam and then placed in a heavy-duty cardboard box or wooden crate. The crate is then sealed and labeled as containing geothermal tubing. The packaging should also include a packing slip with information about the product, the sender, and the recipient.

The tubing is then shipped via a carrier such as FedEx or UPS. The shipper should track the package to ensure that it is not damaged or lost in transit. Once the package arrives at its destination, it should be inspected for any damage before it is opened.
