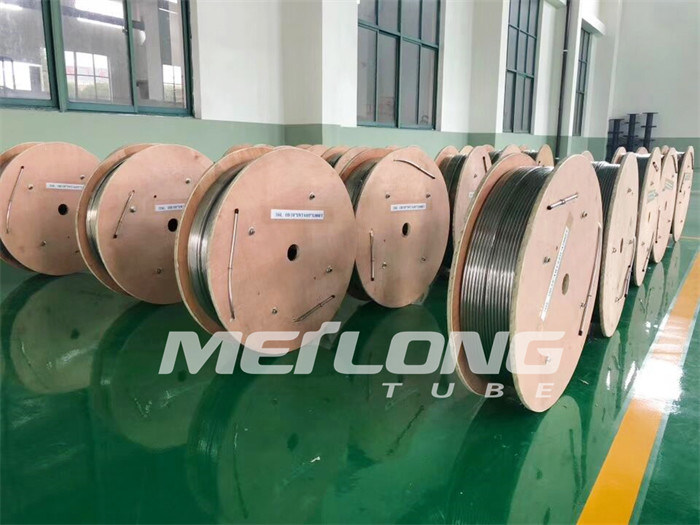

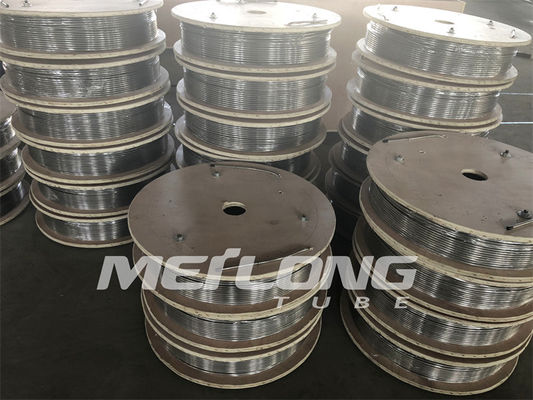

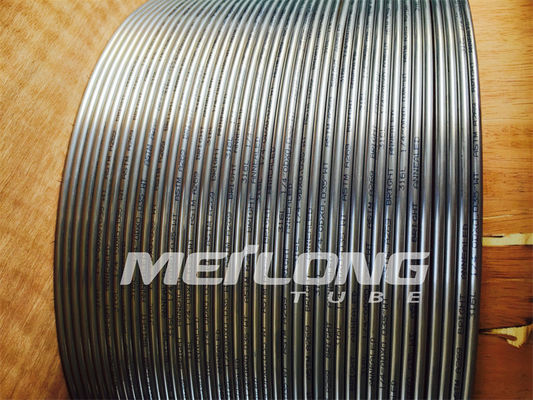

Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS

Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS
Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS

Large Image :  Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001
Model Number: 1/4''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

Cold Drawn Copper Nickel Brake Tubing Incoloy 825 Tubing SGS

Pressure Rate: Above 10000 Psi Tubing Section: Controlled Ovality And Eccentricity
Orbital Welds: Continuous Length Without Orbital Welds Surface: Highly Clean And Bright
Size: Close Dimensional Tolerance Condition: Annealed
Material: Incoloy 825, Inconel 625 Length: Up To 12000 Meters
High Light:

Cold Drawn copper nickel brake tubing


copper nickel brake tubing 0.083in


incoloy 825 tubing SGS

Cold Drawn Incoloy 825 Nickel Alloy Tubing Without Orbital Welds Continuous Length

Product Description:

Meilong Tube manufactures high quality seamless and redrawn, seam-welded and redrawn coiled tubing, which are made from corrosion-resistant austenitic, duplex, super duplex stainless steel and nickel alloy grades. All of their products are used for hydraulic power control lines, chemical injection lines, alloy tubing in umbilicals and instrumentation tubing for exploitation engineering in the upstream oil and gas industry.

Coiled tubing is available in sizes ranging from an outer diameter of 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters), while its wall thickness can be up to 0.083 inch (2.108 millimeters). It can be supplied in lengths up to 65600 feet (20,000 meters) for cost-effective umbilical manufacturing and customization is possible for special requirements.

At Meilong Tube, they are committed to bringing global customers the most cost-effective tubing products by ensuring a comprehensive supply guarantee regarding the complete value-added chain in production, so as to improve the safety and reliability of their work. The Inconel 625 material, with its excellent resistance to pitting, crevice and corrosion cracking, as well as its high temperature strength, are key to the power of their innovations and continuous development.

In addition, Inconel 625 was highlighted for its excellent mechanical properties at both extremely low and extremely high temperatures, its outstanding resistance to pitting, crevice corrosion and intercrystalline corrosion, its almost complete freedom from chloride induced stress corrosion cracking, its high resistance to oxidation at elevated temperatures up to 1050C, and its good resistance to acids, such as nitric, phosphoric, sulfuric and hydrochloric, as well as to alkalis, thereby making the construction of thin structural parts of high heat transfer possible.


Our tubing coils are all constructed without orbital welds, thus ensuring seamless continuity.

In order to guarantee the highest quality, every tubing coil is subject to hydrostatic testing of up to 10150 psi.

Should third-party inspectors such as SGS, BV, and DNV be present, they can verify the test results on the spot.

Additionally, we also conduct eddy current tests, chemical assessments, flattening tests, flaring tests, tensile tests, yield tests, elongation tests, and hardness tests to guarantee the materials used surpass industry standards.


Technical Parameters:


Inconel 625 is a nickel-chromium-molybdenum alloy with additional of Columbium + Tantalum, Carbon, Manganese, Silicon, Phosphorus, Sulfur, Aluminum, Titanium and Cobalt.

The minimum percentage of Nickel is 58.0%, with a range of 20.0-23.0% for Chromium. Iron composition should be 5.0%, with the Molybdenum being between 8.0-10.0%. Columbium + Tantalum should be between 3.15-4.15%, while Carbon has a limit of 0.10%. Manganese, Silicon, Phosphorus, Sulfur, Aluminum, Titanium and Cobalt are all limited to 0.50%, 0.5%, 0.015%, 0.015%, 0.4%, 0.40% and 1.0% respectively.

The Alloy has a Norm Equivalence Grade of UNS No N06625, ASTM/ASME and a Euro norm of EN10216-5 with a Name of 2.4856 NiCr22Mo9Nb.

The OD measurements should range between 1/8 to 3/4 inch followed by WT measurements of 0.125, 0.250 and 0.375 inch. Working Pressure of 0.028, 0.035, 0.049, 0.065 and 0.083 inch should be taken into consideration. The Burst Pressure should be 19,024, 23,780, 12,516, 18,065, 24,633, 8,043, 11,546, 15,829, 20,648, 8,433, 11,507, 15,010, 6,624, 8,788, 11,222, 5,518, 7,320 and 9,348 psi respectively. Collapse Pressure should be 57,892, 72,365, 38,087, 54,969, 74,970, 24,482, 35,143, 48,182, 62,839, 25,657, 35,041, 45,700, 20,175, 26,763, 34,176, 16,806, 22,293 and 28,469 psi respectively. The Test Pressure should be 22,002, 27,503, 14,475, 18,869, 23,090, 10,182, 13,605, 17,202, 20,901, 10,588, 13,576, 16,733, 8,644, 11,467, 14,643, 7,200, 9,552 and 12,197 psi respectively.




We supply and install diverse lines for industrial applications, such as Control Line, Chemical Injection Line, Electrical Line, Multi-Line Flat Pack, Hydraulic Line, Tubing Encapsulated Conductor, Intelligent Well Completions and Capillary Tubing.

Our Control Line provides a boost to the sensing, controlling, monitoring and pressurizing vessels and other equipment installed in the production site. The production process can proceed in an efficient and secure environment with the help of our Chemical Injection Line. The electrical power supply to the site can be safely and sufficiently powered with our Electrical Line. Meanwhile, our Multi-Line Flat Pack helps to reduce the installation time for the tubing and wiring. Furthermore, our Hydraulic Line aids in the efficient power transmission between different locations. The tubing and wiring in a well can be neatly organized and accelerated with the installation of Tubing Encapsulated Conductor, while Intelligent Well Completions provides efficient and cost-effective solutions to the oil and gas industry. Last but not least, our Capillary Tubing help to manage the scarce resourcesby providing a required, clear and controlled flow rate.




Customized Nickel Alloy Tubing Capillary Tube Solutions from Meilong Tube

Meilong Tube offers a wide variety of Nickel Alloy Tubing Capillary Tube, including 1/4''OD x 0.049''WT, with certification of ISO9001, and minimum order quantity of 1 coil. The packing details is Wooden Case, and delivery time is 7 days. The payment terms include T/T or L/C. The material of Nickel Alloy Tubing Capillary Tube is Inconel 825 and Inconel 625, and the condition is annealed. The feature is considerably enhanced mechanical properties, and the process is cold drawing. The tubing section is controlled ovality and eccentricity, and the supply ability is 150 metric tons per month.


Support and Services:


Our Nickel Alloy Tubing comes with comprehensive technical support and services. Our experienced team is always available to help you with any questions or problems that you may have. We provide detailed product information and installation instructions, as well as troubleshooting advice and maintenance tips. We also offer free technical support over the phone, and can provide replacement parts if needed. Our Nickel Alloy Tubing is covered by a warranty, guaranteeing its quality and performance.


Packing and Shipping:


Nickel Alloy Tubing is shipped in protective packaging to ensure that it arrives safely and in perfect condition. We can offer a range of packaging options to suit your needs, including individual packaging for each piece of tubing, bulk packaging for larger orders, or custom packaging.

Shipping is usually done via a trusted carrier and can be tracked throughout the shipment. We can also offer express shipping if required.
