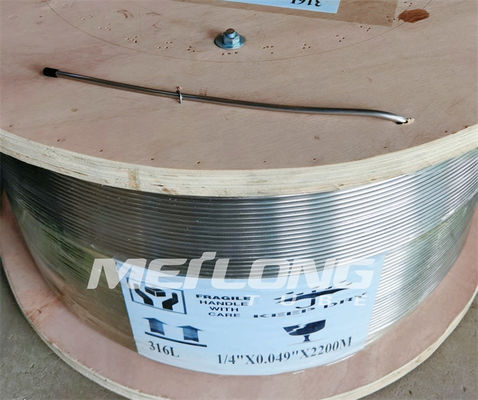

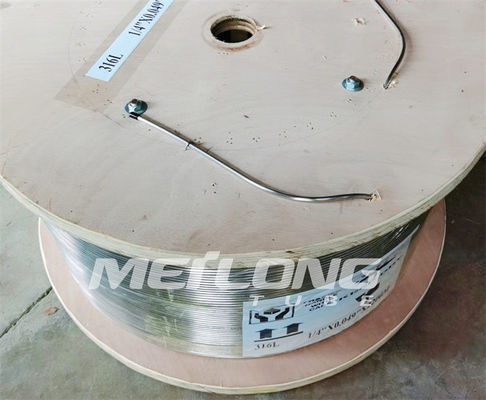

Nickel Alloy Tubing High Pressure Chemical Injection Line 10000 Psi Highly Clean and Bright Surface
Product Description:
Meilong Tube specializes in manufacturing and distributing high-quality seamless and redrawn, seam-welded and redrawn coiled tubing. These products are made with corrosion-resistant austenitic, duplex, super duplex stainless steel and nickel alloy grades. The 100% of the products are used in a variety of applications such as hydraulic power control lines, injection lines, alloy tubing in umbilicals and instrumentation tubing for upstream oil and gas operations.
The coiled tubing is available in sizes ranging from outer diameter 0.125 inches (3.175 millimeters) to one inch (25.4 millimeters). Wall thickness is up to 0.083 inch (2.108 millimeters). Lengths up to 65600 feet (20,000 meters) are available to meet the requirement of umbilical production in a cost-effective manner. Other sizes not mentioned can also be tailored to meet the customer's special needs.
To cope with the challenging and dangerous environments associated with offshore operations, the right corrosion resistant material is essential to ensure the safety and reliability of the coiled umbilical tubing. This is the motive behind the innovations and continuous improvements made by Meilong Tube. As a result of its commitment, it is able to provide economical tubing products through secure value-added chain in tubing production, ultimately leading to products of excellent quality as well as customers' satisfaction.
Features:
Incoloy Alloy 825 Properties
Incoloy alloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel steel alloy is designed to provide exceptional resistance to many corrosive environments. It differs from alloy 800 in that it has improved resistance to aqueous corrosion.
Characteristics
Alloy 825 offers excellent resistance to reducing and oxidizing acids, a good resistance to stress-corrosion cracking and satisfactory resistance to localized attack like pitting and crevice corrosion. In addition, it shows a superior resistance to sulfuric and phosphoric acids. It also boasts good mechanical properties at both room and elevated temperatures up to 1020°F with permission for pressure-vessel use at wall temperatures up to 800°F.
Applications
Some of the applications of Incoloy alloy 825 include chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production and pickling equipment.
Technical Parameters:
Incoloy 825 is a nickel-chromium-iron-molybdenum-carbon-manganese-silicon-sulfur-aluminum-titanium-copper alloy. The minmax. percentages for each of these components are respectively: 38.0-46.0, 19.5-23.5, 22.0, 2.5-3.5, 0.05, 1.0, 0.5, 0.03, 0.2, 0.6-1.2, 1.5-3.0. It has corresponding grade, UNS No., Euro norm of alloy, ASTM/ASME, EN10216-5, and EN10216-5 respectively.
For ASTM B704 / ASME SB704, UNS N08825, and UNS N06625, the tolerance dimension of OD and wt under 1/8’’ to 5/8’’ (3.18 to 15.88 mm) is ± 0.004’’ (±0.10 mm) and ± 12.5%. For size over 5/8’’ to 1’’ (15.88 to 25.4 mm), the tolerance dimension of OD and wt is ± 0.0075’’ (± 0.19 mm) and ± 12.5%. In Meilong Tube Standard, tolerance dimension for OD and wt under 1/8’’ to 5/8’’ (3.18 to 15.88mm) is ± 0.004’’ (± 0.10 mm) and ±10%, while tolerance dimension for size over 5/8’’ to 1’’ (15.88 to 25.4 mm) is ±0.004’’ (± 0.10 mm) and ±8%.
For ASTM B423 / ASME SB423, UNS N08825, tolerance dimension under 1/8’’ to 3/16’’ (3.18 to 4.76 mm) is +0.003’’ (+0.08 mm) / -0, for size over 3/16 to 1/2’’ ( 4.76 to 12.7 mm) is +0.004’’ (+0.10 mm) / -0, and for size over 1/2’’ to 1’’ (12.7 to 25.4 mm), is +0.005’’ (+0.13 mm) / -0, and the tolerance wt in these dimensions is all ± 10%. In Meilong Tube Standard, tolerance dimension under 1/8’’ to 3/16’’ (3.18 to 4.76 mm) is +0.003’’ (+0.08 mm) / -0, for size over 3/16’’ to 1/2’’ (4.76 to 12.7 mm) is +0.004’’ (+0.10 mm) / -0, and for size over 1/2’’ to 1’’ (12.7 to 25.4 mm) is +0.004’’ (+0.10 mm) / -0, tolerance wt are respectively ±10%, ±10%, and ±8%.
Applications:
Nickel alloy tubing control line properties include seamless & floating internal plug redrawn tubing that is supplied in the annealed condition with continuous length without orbital joint welds.
The table below demonstrates the properties and values of Incoloy 825 alloy, UNS N08825, with various outside diameters (O.D.), wall thickness (W.T.), and pressures.
| Alloy |
UNS |
O.D. |
W.T. |
Working Pressure |
Burst Pressure |
Collapse Pressure |
Test Pressure |
| Incoloy 825 |
N08825 |
1/8 |
0.125 |
0.028 |
12,389 |
45,914 |
11,266 |
| Incoloy 825 |
N08825 |
1/8 |
0.125 |
0.035 |
15,486 |
57,392 |
14,083 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.035 |
7,281 |
26,992 |
8,427 |
It should be noted that theoretical burst pressure and theoretical collapse pressure are based on the minimum wall thickness and minimum tensile strength, while pressure rating is at 100°F (38°C) in neutral and static conditions.
Customization:
Nickel Alloy Tubing is a kind of high performance metal material. It is widely used in injection line, hydraulic control line, down hole hydraulic and other fields. Meilong Tube offers a wide range of Nickel Alloy Tubing with excellent mechanical properties, high strength and corrosion resistance. Our Nickel Alloy Tubing has the following characteristics:
- Brand Name: Meilong Tube
- Model Number: 1/4''OD x 0.049''WT
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 1 coil
- Packaging Details: Wooden case
- Delivery Time: In 7 days
- Payment Terms: T/T, L/C
- Supply Ability: 150 metric tons per month
- NDT: 100% Length Is Eddy Current Tested
- Surface: Highly Clean And Bright
- Size: Close Dimensional Tolerance
- Orbital welds: Continuous Length Without Orbital Welds
- Tubing section: Controlled Ovality And Eccentricity
Support and Services:
Nickel Alloy Tubing offers technical support and services to our customers. Our team of experts are available to help answer any questions you may have. We are dedicated to providing the best possible service and support to our customers. Our team is knowledgeable in all aspects of nickel alloy tubing and can provide guidance and advice on how to best use and maintain your product. We are also available for troubleshooting and repairs whenever needed. We strive to provide the highest quality customer service and technical support for our customers.

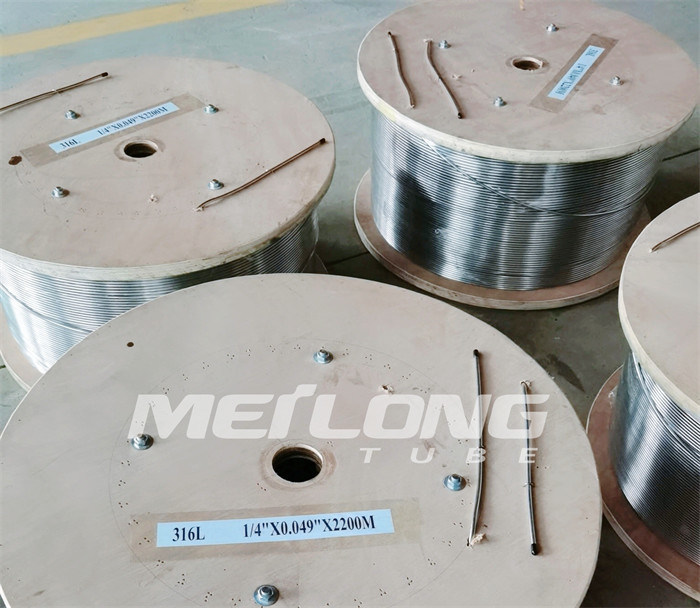

Packing and Shipping:
Packaging and Shipping
Nickel Alloy Tubing products are securely packaged and shipped in accordance with customer requirements. The packaging is designed to protect the product from any damage and ensure safe delivery. Shipping is done in a timely manner.
