10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT

10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT
10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT 10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT 10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT

Large Image :  10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001
Model Number: 1/4''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

10000Psi Nickel Alloy Chemical Injection Line 1/4''OD X 0.049''WT

Description
Process: Cold Drawing Tubing Section: Controlled Ovality And Eccentricity
Length: Up To 12000 Meters Pressure Rate: Above 10000 Psi
NDT: 100% Length Is Eddy Current Tested Feature: Considerably Enhanced Mechanical Properties
Size: Close Dimensional Tolerance Material: Incoloy 825, Inconel 625
High Light:

10000Psi copper nickel brake tubing

,

copper nickel brake tubing 0.25in

,

chemical injection line 0.049

Nickel Alloy Tubing Injection Line with 100% Length Hydrostatic Tested Controlled Ovality and Eccentricity

Product Description:

Meilong Tube manufactures high quality seamless and redrawn, seam-welded and redrawn coiled tubing which are made from corrosion-resistant austenitic, duplex, super duplex stainless steel and nickel alloy grades. 100% of products are used as hydraulic power control lines, chemical injection lines, alloy tubing in umbilicals and instrumentation tubing for the exploitation engineering in the upstream oil and gas industry.

Coiled tubing is available in sizes arrange from outer diameter 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters). Wall thickness is up to 0.083 inch (2.108 millimeters). Lengths up to 65600 feet (20,000 meters) are available for cost-effective umbilical manufacturing. More sizes within the scope can be customized to be produced and delivered for meeting your special requirements.

As more oil and gas extractions move into deeper and harsher waters where extreme offshore environments demand extreme safety, our work is to help you use the “right” corrosion resistant material for coiled umbilical tubing to improve the safety and reliability of your work. This is the power for driving our innovations and continuous development.

Now Meilong Tube is devoting its capability to bring global customers most cost-effective tubing products through ensuring a comprehensive supply guarantee regarding the complete value-added chain in tubing production and is herewith the basis for the high performance in products and customer satisfaction.

Inconel 625 is a material with excellent resistance to pitting, crevice and corrosion cracking. Highly resistant in a wide range of organic and mineral acids. Good high temperature strength.

Some of the characteristics of this material include: excellent mechanical properties at both extremely low and extremely high temperatures; outstanding resistance to pitting,crevice corrosion and intercrystalline corrosion; almost complete freedom from chloride induced stress corrosion cracking; high resistance to oxidation at elevated temperatures up to 1050C; and good resistance to acids, such as nitric, phosphoric, sulfuric and hydrochloric, as well as to alkalis makes possible the construction of thin structural parts of high heat transfer.



Features:

Every tubing coil is an entire, continuous length that is not connected with any orbital welds.

Every tubing coil is hydrostaticily tested with 10,150 psi – at least. This test can take placed on-site and witnessed by third-party inspectors, like SGS, BV, and DNV.

Apart from hydrostatic tests, additional tests will be applied to guarantee the optimal quality of each tubing coil, such as eddy current test, chemicals, flattening, flaring, tensile test, yield test, elongation test, and hardness test.



Technical Parameters:

Inconel 625

Inconel 625 is a nickel-chromium-molybdenum-niobium alloy with excellent corrosion resistance in a wide range of corrosive media, being especially resistant to pitting and crevice corrosion. The following is the chemical composition of Inconel 625:

  • Nickel: 58%-​%
  • Chromium: 20%-23%
  • Iron: 5% max.
  • Molybdenum: 8%-10%
  • Columbium + Tantalum: 3.15%-4.15%
  • Carbon: 0.10% max.
  • Manganese: 0.50% max.
  • Silicon: 0.5% max.
  • Phosphorus: 0.015% max.
  • Sulfur: 0.15% max.
  • Aluminum: 0.4% max.
  • Titanium: 0.40% max.
  • Cobalt: 1.0% max.

The equivalent grade, UNS No, Euro norm and ASTM/ASME of Inconel 625 is shown in below:

Grade UNS No Euro norm No Name Alloy ASTM/ASME EN10216-5 EN10216-5
625 N06625 2.4856 NiCr22Mo9Nb

Here are the working pressure, burst pressure, collapse pressure and test pressure of Inconel 625 in various O.D. and W.T.



Applications:

For the oil and gas market, control lines, chemical injection lines, electrical lines, hydraulic lines, and tubing encapsulated conductor represent the traditional fixtures of production. However, over the past three decades, the industry has advanced to incorporate more sophisticated technology.

Nowadays, multi-line flat packs, intelligent well completions, and capillary tubing represent the cutting edge of the market. Each solution allows for a level of complexity and accuracy previously unachieveable in oil and gas applications and are the result of decades of advances in technology and research.

These solutions promises to revolutionize the industry and usher in a new era of improved efficiency and safety without sacrificing magnitude of output.



Customization:

Nickel Alloy Tubing customized service:

  • Brand Name: Meilong Tube
  • Model Number: 1/4''OD x 0.049''WT
  • Place of Origin: China
  • Certification: ISO9001
  • Minimum Order Quantity: 1 coil
  • Packaging Details: Wooden case
  • Delivery Time: In 7 days
  • Payment Terms: T/T, L/C
  • Supply Ability: 150 metric tons per month
  • Tubing section: Controlled Ovality And Eccentricity
  • Condition: Annealed
  • Pressure test: 100% Length Is Hydrostatic Tested
  • Pressure rate: Above 10000 Psi
  • Feature: Considerably Enhanced Mechanical Properties
  • Focus on: Nickel Alloy Hydraulic Tubing, Nickel Alloy Tubing Hydraulic Control Line, Nickel Alloy Tubing Capillary Tube, Nickel Alloy Tubing Heat Exchanger Tubes, Nickel Alloy Tubing Instrumentation Tubes


Support and Services:

Nickel Alloy Tubing provides comprehensive technical support and service to ensure our customers get the most out of our products. Our experienced technicians can provide assistance with the selection, design, and installation of our tubing solutions. We also offer product troubleshooting and repair services, as well as on-site maintenance and repairs. In addition, our team is available to provide technical advice, product information, and support to help our customers maximize their investment in our products.

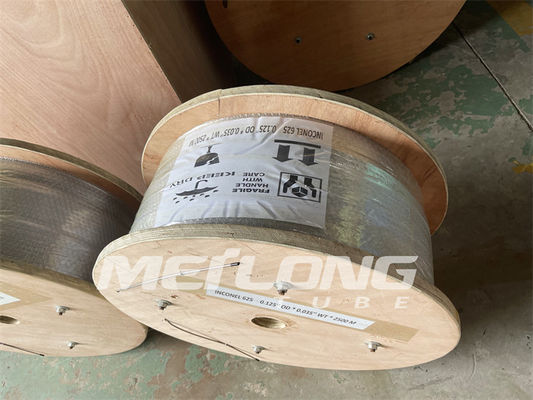

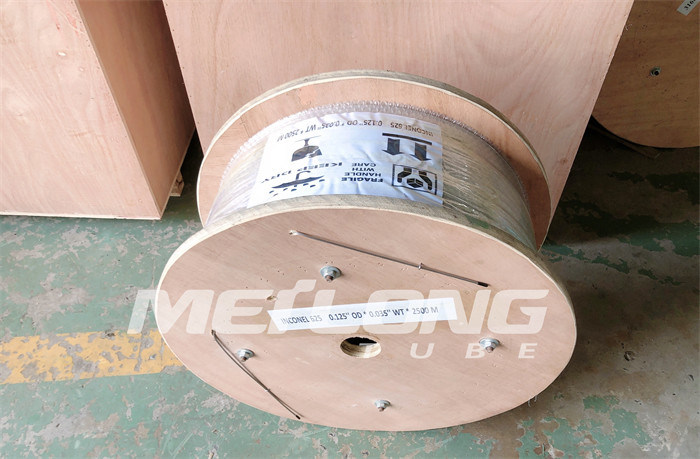

Packing and Shipping:

Nickel Alloy Tubing is packaged and shipped with care. The tubes are wrapped in a protective material, such as plastic or paper, and then packed in a box or container for shipping. The box or container is typically labeled with the product name, its specifications, and the date of shipment. The box or container is then sealed with tape or shrink wrap to ensure the tubes are secure during transport.


Alloy UNS O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
Inconel 625 N06625 1/8 0.125 0.028 19,024 57,892 22,002 21,750
Inconel 625 N06625 1/8 0.125 0.035 23,780 72,365 27,503 27,550
Inconel 625 N06625 1/4 0.250 0.035 12,516 38,087 14,475 14,500
Inconel 625 N06625 1/4 0.250 0.049 18,065 54,969 18,869 20,300
Inconel 625 N06625 1/4 0.250 0.065 24,633 74,970 23,090 27,550
Inconel 625 N06625 3/8 0.375 0.035 8,043 24,482 10,182 9,425
Inconel 625 N06625 3/8 0.375 0.049 11,546 35,143 13,605 13,050
Inconel 625 N06625 3/8 0.375 0.065 15,829 48,182 17,202 18,125
Inconel 625 N06625 3/8 0.375 0.083 20,648 62,839 20,901 23,200
Inconel 625 N06625 1/2 0.500 0.049 8,433 25,657 10,588 9,425
Inconel 625 N06625 1/2 0.500 0.065 11,507 35,041 13,576 13,050
Inconel 625 N06625 1/2 0.500 0.083 15,010 45,700 16,733 17,400
Inconel 625 N06625 5/8 0.625 0.049 6,624 20,175 8,644 7,250
Inconel 625 N06625 5/8 0.625 0.065 8,788 26,763 11,467 10,150
Inconel 625 N06625 5/8 0.625
