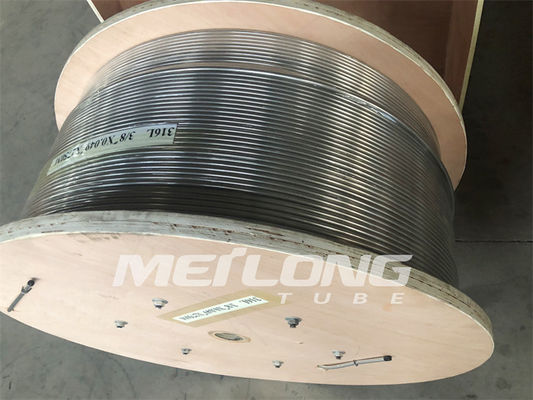

Nickel Alloy Tubing Hydraulic Control Line Close Dimensional Tolerance Continuous Length Without Orbital Welds 100% Leng
Product Description:
Meilong Tube manufactures high quality coiled tubing in a variety of forms, including seamless and redrawn, seam-welded and redrawn tubing. These products are made from corrosion-resistant austenitic, duplex, super duplex stainless steel and nickel alloy grades. They are commonly used in hydraulic power control lines, chemical injection lines, umbilicals, and instrumentation tubing for upstream oil and gas exploration.
Coiled tubing is available in outer diameters ranging from 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters), and wall thickness up to 0.083 inch (2.108 millimeters). Lengths up to 65600 feet (20,000 meters) are available, and custom sizes can be accommodated. As more oil and gas extractions move into increasingly deeper and harsher environments, our goal is to ensure that these projects use the “right” corrosion resistant material for coiled umbilical tubing, enhancing safety and reliability.
Meilong Tube is committed to providing the most cost-effective tubing products, and this involves guaranteeing a comprehensive value-added chain in tubing production. This results in higher performance products and customer satisfaction.
Features:
Incoloy alloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper. This nickel steel alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion.
It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion. Alloy 825 is especially resistant to sulfuric and phosphoric acids. This nickel steel alloy is used for chemical processing, pollution-control equipment, oil and gas well piping, nuclear fuel reprocessing, acid production, and pickling equipment.
The qualities of this alloy make it an ideal option for many industrial uses. Some of its best characteristics include:
- Excellent resistance to both reducing and oxidizing acids
- Good resistance to stress-corrosion cracking
- Satisfactory resistance to localized attack like pitting and crevice corrosion
- Very resistant to sulfuric and phosphoric acids
- Good mechanical properties at both room and elevated temperatures up to approximately 1020° F
- Permission for pressure-vessel use at wall temperatures up to 800°F
Technical Parameters:
Incoloy 825
Nickel Chromium Iron Molybdenum Carbon Manganese Silicon Sulfur Aluminum Titanium Copper
% % % % % % % % % % %
min. max. max. max. max. max. max.
38.0-46.0 19.5-23.5 22.0 2.5-3.5 0.05 1.0 0.5 0.03 0.2 0.6-1.2 1.5-3.0
Norm Equivalence
Grade UNS No Euro norm
No Name
Alloy ASTM/ASME EN10216-5 EN10216-5
825 N08825 2.4858 NiCr21Mo
Dimension Tolerance
ASTM B704 / ASME SB704, UNS N08825, UNS N06625
ASTM B751 / ASME SB751
Size OD Tolerance OD Tolerance WT
1/8’’≤OD<5/8’’ (3.18≤OD<15.88 mm)
5/8≤OD≤1’’ (15.88≤OD≤25.4 mm) ±0.004’’ (±0.10 mm)
±0.0075’’ (±0.19 mm) ±12.5%
±12.5%
Meilong Tube Standard
Size OD Tolerance OD Tolerance WT
1/8’’≤OD<5/8’’ (3.18≤OD<15.88 mm)
5/8≤OD≤1’’ (15.88≤OD≤25.4 mm) ±0.004’’ (±0.10 mm)
±0.004’’ (±0.10 mm) ±10%
±8%
Dimension Tolerance
ASTM B423 / ASME SB423, UNS N08825
Size OD Tolerance OD Tolerance WT
1/8’’≤OD<3/16’’ (3.18≤OD<4.76 mm)
3/16≤OD<1/2’’ (4.76≤OD<12.7 mm)
1/2’’≤OD≤1’’ (12.7≤OD≤25.4 mm) +0.003’’ (+0.08 mm) / -0
+0.004’’ (+0.10 mm) / -0
+0.005’’ (+0.13 mm) / -0 ±10%
±10%
±10%
Meilong Tube Standard
Size OD Tolerance OD Tolerance WT
1/8’’ ≤OD<3/16’’ (3.18≤OD<4.76 mm)
3/16≤OD<1/2’’ (4.76≤OD<12.7 mm)
1/2’’≤OD≤1’’ (12.7≤OD≤25.4 mm) +0.003’’ (+0.08 mm) / -0
+0.004’’ (+0.10 mm) / -0
+0.004’’ (+0.10 mm) / -0 ±10%
±10%
±8%
Applications:
Nickel alloy tubing, made from seamless and floating internal plug redrawn tubing, is supplied in the annealed condition. It is provided as continuous length without any orbital joint welds.
| Alloy |
UNS |
O.D. |
W.T. |
Working Pressure |
Burst Pressure |
Collapse Pressure |
Test Pressure |
| Incoloy 825 |
N08825 |
1/8 |
0.125 |
0.028 |
12,389 |
45,914 |
11,266 |
14,500 |
| Incoloy 825 |
N08825 |
1/8 |
0.125 |
0.035 |
15,486 |
57,392 |
14,083 |
17,400 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.035 |
7,281 |
26,992 |
8,427 |
8,700 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.049 |
10,518 |
38,957 |
10,979 |
11,600 |
| Incoloy 825 |
N08825 |
1/4 |
0.250 |
0.065 |
14,335 |
53,127 |
13,445 |
16,675 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.035 |
4,683 |
17,347 |
5,918 |
5,075 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.049 |
6,720 |
24,903 |
7,919 |
7,250 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.065 |
9,214 |
34,142 |
10,022 |
10,150 |
| Incoloy 825 |
N08825 |
3/8 |
0.375 |
0.083 |
12,018 |
44,526 |
12,174 |
13,775 |
| Incoloy 825 |
N08825 |
1/2 |
0.500 |
0.049 |
4,912 |
18,173 |
6,164 |
5,800 |
| Incoloy 825 |
N08825 |
1/2 |
0.500 |
0.065 |
6,701 |
24,831 |
7,905 |
7,250 |
| Incoloy 825 |
N08825 |
1/2 |
0.500 |
0.083 |
8,740 |
32,382 |
9,736 |
10,150 |
| Incoloy 825 |
N08825 |
5/8 |
0.625 |
0.049 |
3,930 |
14,538 |
4,931 |
4,350 |
| Incoloy 825 |
N08825 |
5/8 |
0.625 |
0.065 |
5,361 |
19,865 |
6,324 |
5,800 |
| Incoloy 825 |
N08825 |
5/8 |
0.625 |
0.083 |
6,846 |
25,367 |
8,076 |
7,975 |
| Incoloy 825 |
N08825 |
3/4 |
0.750 |
0.049 |
3,273 |
12,110 |
4,108 |
3,625 |
| Incoloy 825 |
N08825 |
3/4 |
0.750 |
0.065 |
4,466 |
16,547 |
5,268 |
5,075 |
| Incoloy 825 |
N08825 |
3/4 |
0.750 |
0.083 |
5,703 |
21,131 |
6,727 |
6,525 |
The burst pressure is based on minimal wall thickness and minimum tensile strength and collapse pressure is computed from minimum wall thickness and the minimum yield strength. The pressure rating is specified at 100℉, neutral and static conditions. No internal valve, plug, pressure rupture disk or any other kind of flow restriction is included in the calculation.
Customization:
We provide custom-made services for Capillary Nickel Alloy Tubing, Nickel Alloy Tubing Chemical Injection Line, Nickel Alloy Tubing Hydraulic Control Line. Our brand name is Meilong Tube, the model number is 1/4''OD x 0.049''WT, which is made in China and certificated by ISO9001. The minimum order quantity is 1 coil, and the packaging details are Wooden case. The delivery time is In 7 days, and the payment terms are T/T, L/C. Our company has a huge supply ability of 150 metric tons per month. This product has considerably enhanced mechanical properties, and the pressure rate is above 10000 Psi. Moreover, the 100% length is eddy current tested, and the process is cold drawing.
Support and Services:
We provide comprehensive technical support and service for our Nickel Alloy Tubing product. Our experienced technical team is available 24/7 to answer any questions you may have. We provide detailed engineering drawings and specifications, and are able to customize our products to meet your exact needs. We also offer installation and maintenance services, and can provide recommendations on the best solutions for your application. If you have any questions or would like to learn more about our Nickel Alloy Tubing, please contact us and we will be happy to help.
Packing and Shipping:
Nickel Alloy Tubing is packaged and shipped in accordance to customer specifications. Depending on the size and weight of the order, it may be sent in individual boxes, on pallets, or in crates. If necessary, the packaging is designed to protect the product from damage due to weather, shock, and vibrations during shipment.
The product is shipped via truck, train, boat, or air freight, depending on the customer's needs. The shipment is always tracked to ensure safe and timely delivery.
