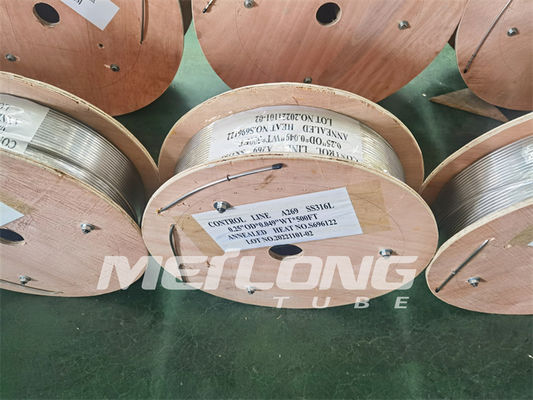

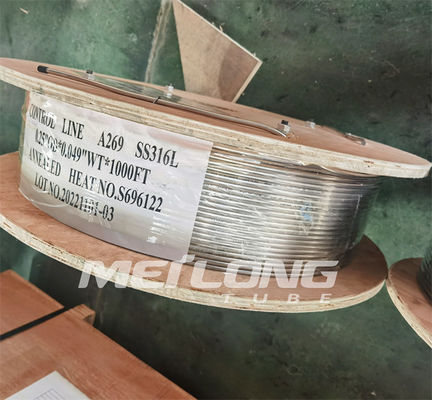

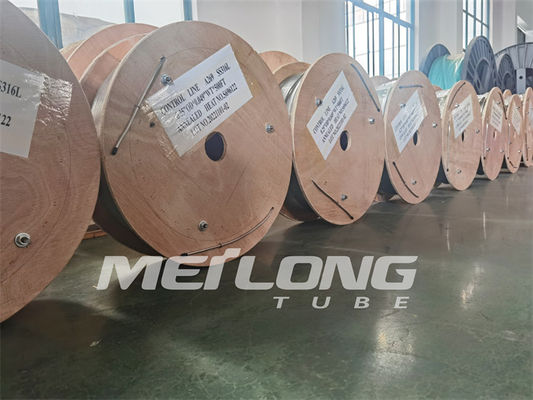

Duplex 2205 SS Hydraulic Tubing Control Line Thin Capillary Tubes For Down Hole

Stainless Steel Duplex 2205 Hydraulic Tubing Control Line for Down Hole Application in Oil And Gas Industry with Enhance

Product Description:

The upstream processes of the oil and gas industry faces a great challenge in terms of protecting pipelines and process equipment from getting blocked from waxes, scaling and asphalthane deposits. Therefore, a variety of engineering disciplines involved in flow assurance play a crucial role in mapping out the requirements that aid in reducing and preventing production loss. Coiled tubing and chemical injection systems provided by Meilong Tube reach an optimal performance in flow assurance. Specifically designed for oil and gas extraction in subsea conditions, our tubing has achieved utmost integrity and quality. It is produced from duplex, nickel alloy and stainless steel grades, which can be customized to industry and customer-specific requirements. The surface-controlled subsurface safety valve (SCSSV) is an essential downhole safety valve that is operated from the surface facilities via a control line installed on the external surface of the production tubing. It is available in two basic types: wireline retrievable, which allows running and retrieving the integral components with slickline, and tubing retrievable, with the entire safety-valve assembly installed along the tubing string. The fail-safe control system is powered by a hydraulic control pressure to hold the open a ball or flapper assembly, closing it when the control pressure is lost.

Features:

Meilong Tube operates from a complex of buildings totaling 20,000 square meters. They specialize in the production of metal tubing.

Tubes are formed and gas-tungsten arc and laser beam welded from strip stock on multiple tube mills designed and fabricated by Meilong Tube. For certain tubing dimensions, manufacturing process limitations prevent welding the tubing to final size. To address such cases, the tubing is welded at a larger outside diameter and sunk in multiple reduction and heat treatment operations.

Floating-plug operation is another cold working process employed by Meilong Tube. It involves the use of an internal floating plug which controls inside diameter of tubing.

Finally, heat treatment is used to achieve specified mechanical properties and corrosion resistance in an off-mill furnace with a reducing atmosphere.

Technical Parameters:

The data below list the weight per meter of hydraulic tubing for stainless steel 316L (UNS S31603), Duplex 2205 (US S32205), and Duplex 2507 (UNS S32750).

Stainless 316L (UNS S31603):

• O.D.   W.T.   Fraction   Decimal   0.028   0.035   0.049   0.065   0.083
• 1/8   0.125   0.0442   0.0512   -   -   -
• 1/4   0.250   0.1012   0.1225   0.1603   0.1957   0.2255
• 3/8   0.375   0.1580   0.1936   0.2598   0.3278   0.3944
• 1/2   0.500   0.2150   0.2647   0.3595   0.4600   0.5631
• 5/8   0.625   0.2720   0.3360   0.4592   0.5923   0.7319
• 3/4   0.750   0.3289   0.4072   0.5588   0.7244   0.9006

Duplex 2205 (UNS S32205):

• O.D.   W.T.   Fraction   Decimal   0.028   0.035   0.049   0.065   0.083
• 1/8   0.125   0.0431   0.0500   -   -   -
• 1/4   0.250   0.0988   0.1195   0.1564   0.1910   0.2200
• 3/8   0.375   0.1542   0.1890   0.2536   0.3200   0.3849
• 1/2   0.500   0.2099   0.2584   0.3509   0.4490   0.5496
• 5/8   0.625   0.2655   0.3280   0.4482   0.5781   0.7143
• 3/4   0.750   0.3210   0.3974   0.5454   0.7071   0.8790

Duplex 2507 (US S32750):

• O.D.   W.T.   Fraction   Decimal   0.028   0.035   0.049   0.065   0.083
• 1/8   0.125   0.0438   0.0507   -   -   -
• 1/4   0.250   0.1002   0.1213   0.1587   0.1971   0.2232
• 3/8   0.375   0.1565   0.1917   0.2572   0.3246   0.3904
• 1/2   0.500   0.2129   0.2621   0.3559   0.4554   0.5575
• 5/8   0.625   0.2693   0.3327   0.4547   0.5864   0.7246
• 3/4   0.750   0.3256   0.4031   0.5532   0.7172   0.8916

Applications:

At Meilong Tube, we have a wide range of alloy tubing that meet all your needs for vital projects. Our experienced technicians will help you to choose the most suitable corrosion resisting alloys to handle your well fluids, which can maximize the longevity and improve safety of your well system.

We offer high-end alloy tubing for specific applications, such as hydraulic power, single transmission, chemical injection lines, monitoring and control equipment, downhole safety valve control, subsea safety valve control, umbilical control lines, topside instrumentation, impulse lines, wellhead control panel control, and downhole gauge cable.

Customization:

Meilong Tube offers a wide range of SS Hydraulic Tubing for hydraulic control line. Our tubing made of 316L, Duplex 2205, Super Duplex 2507 material with ASTM A269, ASTM A789 standard, and with annealed condition and ferrule fittings connection type. It is available in close dimensional tolerance, and minimum order quantity is 1 coil.

Features and Benefits of SS Hydraulic Tubing for Hydraulic Control Line:

• Brand Name: Meilong Tube
• Model Number: 1/4''OD x 0.049''WT
• Place of Origin: China
• Certification: ISO9001
• Packaging Details: Wooden case
• Delivery Time: In 7 days
• Payment Terms: T/T, L/C
• Supply Ability: 150 metric tons per month
• Material: 316L, Duplex 2205, Super Duplex 2507
• Standard: ASTM A269, ASTM A789
• Condition: Annealed
• Connection type: Ferrule Fittings
• Size: Close Dimensional Tolerance

Support and Services:

We offer technical support and service for our SS Hydraulic Tubing products. Our team of experts is available to answer any questions you may have about the installation, operation, and maintenance of our products. We also provide troubleshooting assistance to help you identify and resolve potential problems quickly and efficiently. Our team is committed to providing the highest quality customer service and support.
