ASTM B704 Nickel Alloy Tubing Incoloy 825 High Tensile Chemical Injection Line

Description
Alloy: Incoloy 825, UNS N08825 Surface: Clean And Bright
Condition: Annealed Properties: Enhanced Tensile And Yield
Feature: High Pressure Tubing Application: Down Hole Hydraulic Control In Oil And Gas Wells
Standard: ASTM B704 Size: Tight Dimensional Tolerances
Application Standard: NACE MR0175 / ISO15156 Test: 100% Length Is Hydraulic Tested
High Light:

ASTM B704 Nickel Alloy Tubing

,

Nickel Alloy Tubing Incoloy 825

,

High Tensile Chemical Injection Line ISO9001

ASTM B704 Incoloy 825 High Tensile Chemical Injection Line Nickel Alloy Tubing



Welded and redrawn injection lines are the preferred construction for injection lines being used in downhole oil and gas applications. Our welded control lines are used in SCSSV, Chemical Injection, Advanced Well Completions, and Gauge Applications. We offer a variety of control lines. (TIG Welded or Laser Welded, and floating plug drawn, and lines with enhancements) The various processes provide us the ability to customize a solution to meet your well completion.



Typical Size of Injection Line



Outside diameter of control lines is mainly 3/8’’ (9.53mm).

Wall thicknesses: 0.035’’ (0.89mm), 0.049’’ (1.24mm), 0.065’’ (1.65mm)

Control line tubing is available in lengths from 400 feet (122 meters) to 32,808 feet (10,000 meters). No orbitally butt welds.

Other specifications (1/8’’ to 3/4’’) are available on request.



Precision Manufacturing



Meilong Tube operates from a complex of buildings totaling 20,000 square meters.

Each one tubing coil is a completely continuous length without orbital welds.

Each one tubing coil is hydrostatic tested with a targeted pressure.

The test can be witnessed on site by the third party inspectors (SGS, BV, DNV).



Quality Control Abilities



Chemical

Corrosion

Dimensional

Eddy current

Elongation

Flare

Flatten

Grain size

Hardness

Hydrostatic

Metallurgical

Positive material identification (PMI)

Surface roughness

Tensile

Yield



Tubing Features



Close dimensional tolerances

Considerably enhanced mechanical properties

Superior surface finish

High cleanness of inside surface

Controlled ovality, eccentricity



Dimensional Tolerance



ASTM B704 / ASME SB704, Incoloy 825, UNS N08825

ASTM B751 / ASME SB751

Size OD Tolerance OD Tolerance WT

1/8’’≤OD<5/8’’ (3.18≤OD<15.88 mm)

5/8≤OD≤1’’ (15.88≤OD≤25.4 mm)

±0.004’’ (±0.10 mm)

±0.0075’’ (±0.19 mm)

±12.5%

±12.5%



Meilong Standard

Size OD Tolerance OD Tolerance WT

1/8’’≤OD<5/8’’ (3.18≤OD<15.88 mm)

5/8≤OD≤1’’ (15.88≤OD≤25.4 mm)

±0.004’’ (±0.10 mm)

±0.004’’ (±0.10 mm)

±10%

±8%



Heat Treatment



The tubing is heat-treated to achieve specified mechanical properties and corrosion resistance in an off-mill furnace with a reducing atmosphere.



Application Description for SSSV



A safety valve is a valve that acts as the protector of your equipment. Safety valves can prevent damage to your pressure vessels and even prevent explosions at your facility when installed in pressure vessels.



A safety valve is a type of valve that automatically actuates when the pressure of the inlet side of the valve increases to a predetermined pressure, to open the valve disc and discharge the fluid. The safety valve system is designed to be a fail-safe so that a wellbore can be isolated in the event of any system failure or damage to the surface production-control facilities.



In most cases, it is mandatory to have a means of closure for all wells capable of natural flow to the surface. The installation of a subsurface safety valve (SSSV) will provide this emergency closure capability. Safety systems may be operated on a fail-safe principle from a control panel located on the surface.



The SCSSV is controlled by a ¼” stainless steel control line that is attached to the outside of the well tubing string and installed when the production tubing is installed. Depending on the wellhead pressure, it may be necessary to keep as much as 10,000 psi on the control line to keep the valve open.



Other Applications



Capillary coiled alloy tubing for chemical injection

Bare and encapsulated hydraulic control line coiled alloy tubing for subsea safety valves

Velocity strings, work strings, and steel tube umbilicals

Geothermal coiled alloy tubing



Alloys for Injection Lines



Alloy Tubing

Hydraulic

Control

Chemical

Injection

Chloride Pitting /

Crevice Corrosion Resistance

H2S / CO2

Resistance

Chloride Stress Corrosion Cracking (SCC) Resistance UNS / ASTM Specification

Stainless 316L – 170 MPa min. yield strength

Seam-Welded Pressure Tubing

      S31603 / A269

Duplex 2205 – 485 MPa min. yield strength

Seam-Welded Pressure Tubing

S32205 / A789

Duplex 2507 – 550 MPa min. yield strength

Seam-Welded Pressure Tubing

S32750 / A789

Incoloy 825 – 240 MPa min. yield strength

Seam-Welded Pressure Tubing

N08825 / B704

Inconel 625 – 414 MPa min. yield strength

Seam-Welded Pressure Tubing

N06625 / B704



Chemical Compositions of Incoloy 825 Injection Line Capillary Tubing



Nickel Chromium Iron Molybdenum Carbon Manganese Silicon Sulfur Aluminum Titanium Copper
% % % % % % % % % % %
    min.   max. max. max. max. max.
38.0-46.0 19.5-23.5 22.0 2.5-3.5 0.05 1.0 0.5 0.03 0.2 0.6-1.2 1.5-3.0

Incoloy alloy 825 is a nickel-iron-chromium alloy with additions of molybdenum and copper.



Incoloy 825 Injection Line Tubing Weight per Meter (kg)



Incoloy 825 (UNS N08825)

O.D. W.T.
Fraction Decimal 0.028 0.035 0.049 0.065 0.083
1/8 0.125 0.0446 0.0517 - - -
1/4 0.250 0.1022 0.1237 0.1916 0.1977 0.2277
3/8 0.375 0.1596 0.1955 0.2624 0.3311 0.3983
1/2 0.500 0.2172 0.2674 0.3631 0.4646 0.5688
5/8 0.625 0.2748 0.3394 0.4638 0.5982 0.7392
3/4 0.750 0.3322 0.4112 0.5644 0.7317 0.9096



Incoloy 825 Capillary Tubing Injection Line Properties



Welded & floating internal plug redrawn tubing. Supplied in the annealed condition

Continuous length without orbital joint welds



Alloy UNS O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
inch inch inch psi psi psi psi
Incoloy 825 N08825 1/8 0.125 0.028 12,389 45,914 11,266 14,500
Incoloy 825 N08825 1/8 0.125 0.035 15,486 57,392 14,083 17,400
Incoloy 825 N08825 1/4 0.250 0.035 7,281 26,992 8,427 8,700
Incoloy 825 N08825 1/4 0.250 0.049 10,518 38,957 10,979 11,600
Incoloy 825 N08825 1/4 0.250 0.065 14,335 53,127 13,445 16,675
Incoloy 825 N08825 3/8 0.375 0.035 4,683 17,347 5,918 5,075
Incoloy 825 N08825 3/8 0.375 0.049 6,720 24,903 7,919 7,250
Incoloy 825 N08825 3/8 0.375 0.065 9,214 34,142 10,022 10,150
Incoloy 825 N08825 3/8 0.375 0.083 12,018 44,526 12,174 13,775
Incoloy 825 N08825 1/2 0.500 0.049 4,912 18,173 6,164 5,800
Incoloy 825 N08825 1/2 0.500 0.065 6,701 24,831 7,905 7,250
Incoloy 825 N08825 1/2 0.500 0.083 8,740 32,382 9,736 10,150
Incoloy 825 N08825 5/8 0.625 0.049 3,930 14,538 4,931 4,350
Incoloy 825 N08825 5/8 0.625 0.065 5,361 19,865 6,324 5,800
Incoloy 825 N08825 5/8 0.625 0.083 6,846 25,367 8,076 7,975
Incoloy 825 N08825 3/4 0.750 0.049 3,273 12,110 4,108 3,625
Incoloy 825 N08825 3/4 0.750 0.065 4,466 16,547 5,268 5,075
Incoloy 825 N08825 3/4 0.750 0.083 5,703 21,131 6,727 6,525



* Theoretical burst pressure based on minimum wall thickness, and minimum tensile strength

* Theoretical collapse pressure based on minimum wall thickness, and minimum yield strength

* Pressure rating at 100°F (38°C), neutral and static conditions



Tubing Process and Packing



Seamless- pierced, redrawn, annealed (multi-pass circulation process)

Welded- longitudinally welded, redrawn, annealed (multi-pass circulation process)

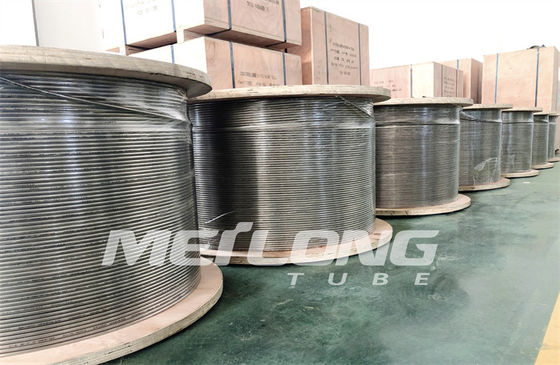

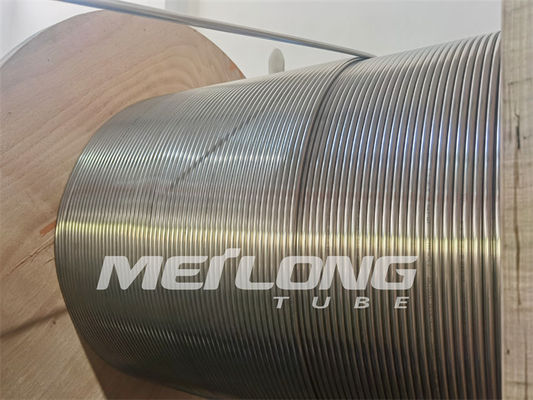

Packing- Tubing is level wound coiled on the metal / wooden drums or spools.

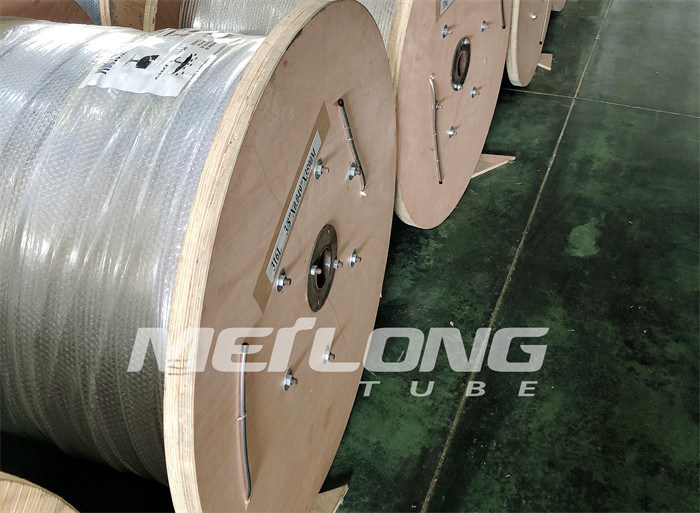

All drums or spools are packed in wooden crates for easy logistic operation.
