ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested

ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested
ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested

Large Image :  ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001
Model Number: 1/4''OD x 0.049''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil

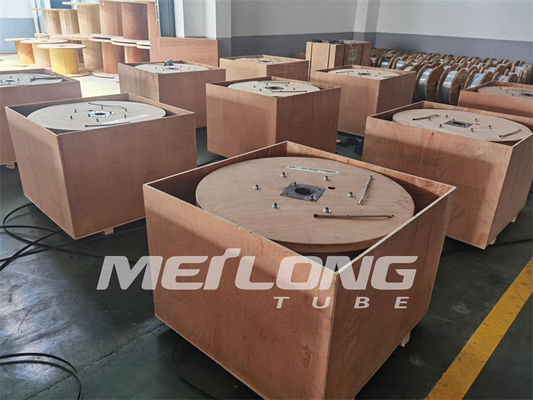

Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

ASTM B423 Nickel Alloy Tubing Incoloy 825 Chemical Injection Line Hydrostatic Tested

Pressure Rate: Above 10000 Psi Material: Incoloy 825, Inconel 625
Feature: Considerably Enhanced Mechanical Properties Size: Close Dimensional Tolerance
Standard: ASTM B704, ASTM B423, ASTM B444 Surface: Highly Clean And Bright
Tubing Section: Controlled Ovality And Eccentricity NDT: 100% Length Is Eddy Current Tested
High Light:

ASTM B423 Nickel Alloy Tubing


Nickel Alloy Tubing Incoloy 825 ODM


chemical Injection Line Hydrostatic Tested

Nickel Alloy Incoloy 825 Hydraulic Tubing 100% Length Hydrostatic Tested ASTM B423

Product Description:

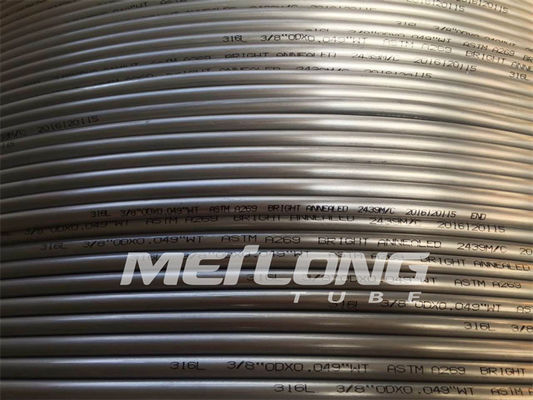

Meilong Tube manufactures high quality seamless and redrawn, seam-welded and redrawn coiled tubing, which are made from corrosion-resistant austenitic, duplex, super duplex stainless steel and nickel alloy grades. 100% of products are used as hydraulic power control lines, chemical injection lines, alloy tubing in umbilicals and instrumentation tubing for the exploitation engineering in the upstream oil and gas industry.

Coiled tubing is available in sizes range from outer diameter 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters). Wall thickness is up to 0.083 inch (2.108 millimeters). Lengths up to 65600 feet (20,000 meters) are available for cost-effective umbilical manufacturing. Moreover, more sizes within the scope can be customized to be produced and delivered for meeting your special requirements.

As more oil and gas extractions move into deeper and harsher waters where extreme offshore environments demand extreme safety, Meilong Tube is dedicated to help you use the “right” corrosion resistant material for coiled umbilical tubing to improve the safety and reliability of your work. This is the power to drive its innovations and continuous development.

Meilong Tube is now devoting its capability to bring global customers most cost-effective tubing products through ensuring a comprehensive supply guarantee regarding the complete value-added chain in tubing production. This is the basis for the high performance in products and customer satisfaction.

Inconel 625 is a material with excellent resistance to pitting, crevice and corrosion cracking. It has a high resistance to organic and mineral acids, and good high temperature strength. This is coupled with mechanical properties at both extremely low and extremely high temperatures, outstanding resistance to pitting, crevice corrosion and intercrystalline corrosion, almost complete freedom from chloride induced stress corrosion cracking, and high resistance to oxidation at elevated temperatures up to 1050 C. Finally, its good resistance to acids and alkalis makes possible the construction of thin structural parts of high heat transfer.

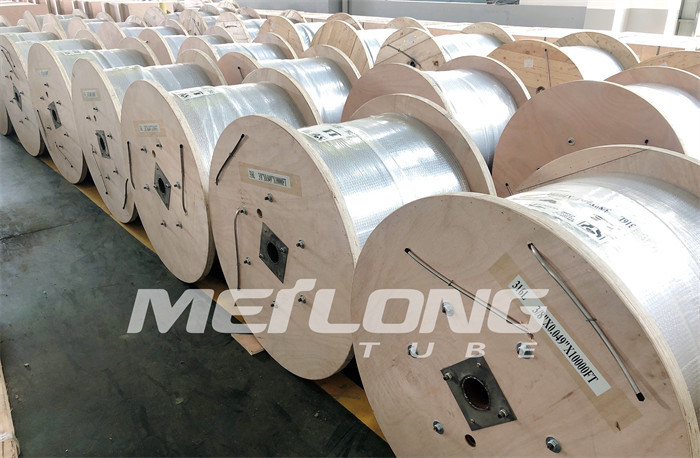

Every tubing coil created is in the form of one unbroken length, without any welds on the surface.

Each tubing coil is tested on site by third party inspectors (SGS, BV, DNV) under the hydrostatic pressure tests of at least 10,150 psi.

In addition to the hydrostatic tests, eddy current tests, chemicals tests, flattening tests, flaring tests, tensile tests, yield tests, elongation tests and hardness tests are also conducted to ensure the quality of the tubing coils.


Technical Parameters:

Inconel 625 Chemistry

Inconel 625 has a composition featuring: Nickel (58%-23%), Chromium (20%-23%), Iron (5%), Molybdenum (8%-10%), Columbium + Tantalum (3.15%-4.15%), Carbon (0.10%-0.50%), Manganese (0.50%-1.0%), Silicon (0.5%), Phosphorus (0.015%), Sulfur (0.015%), Aluminum (0.4%), Titanium (0.40%-1.0%), and Cobalt (1%).


Inconel 625 is equivalent to ASTM/ASME Grade N06625, EN10216-5 2.4856, and EN10216-5 NiCr22Mo9Nb.

Working Pressure

Below is the working pressure for different combinations of Inconel 625, normalized by O.D., W.T., psi, and other measurements.

UNS No O.D. W.T. Working Pressure Burst Pressure Collapse Pressure Test Pressure
N06625 1/8" 0.125" 0.028" 19024psi 57892psi 22002psi 21750psi
N06625 1/8" 0.125" 0.035" 23780psi 72365psi 27503psi 27550psi
N06625 1/4" 0.250" 0.035" 12516psi 38087psi 14475psi 14500psi
N06625 1/4" 0.250" 0.049" 18065psi 54969psi 18869psi 20300psi
N06625 1/4" 0.250" 0.065" 24633psi 74970psi 23090psi 27550psi
N06625 3/8" 0.375" 0.035" 8043psi 24482psi 10182psi 9425psi
N06625 3/8" 0.375" 0.049" 11546psi 35143psi 13605psi 13050psi
N06625 3/8" 0.375" 0.065" 15829psi 48182psi 17202psi 18125psi
N06625 3/8" 0.375" 0.083" 20648psi 62839psi 20901psi 23200psi
N06625 1/2" 0.500" 0.049" 8433psi 25657psi 10588psi 9425psi
N06625 1/2" 0.500" 0.065" 11507psi 35041psi 13576psi 13050psi
N06625 1/2" 0.500" 0.083" 15010psi 45700psi 16733psi 17400psi
N06625 5/8" 0.625" 0.049" 6624psi 20175psi 8644psi 7250psi
N06625 5/8" 0.625" 0.065" 8788psi 26763psi 11467psi 10150psi
N06625 5/8" 0.625" 0.083" 11222psi 34176psi 14643psi 13050psi
N06625 3/4" 0.750" 0.049" 5518psi 16806psi 7200psi 6525psi
N06625 3/4" 0.750" 0.065" 7320psi 22293psi 9552psi 8700psi
N06625 3/4" 0.750" 0.083" 9348psi 28469psi 12197psi 10875psi


Control line, also known as an Automate Control line, is a type of electronic communication line that is widely used in industrial and commercial applications. This type of line is used to control machinery and equipment, ensuring that they operate as intended and are not subject to external malicious control. Examples of control lines include chemical injection lines, electrical lines, multi-line flat packs, hydraulic lines, tubing encapsulated conductors, intelligent well completions, and capillary tubing.

Chemical injection lines are used to inject measured amounts of chemicals into a process at carefully timed intervals. This ensures that the process is running with optimal output and without any impurities. Electrical lines provide power to machinery and equipment, and can be further protected with surge protection or intelligent controls. Multi-line flat packs are used in applications where the need for many cables is present but the space is limited. These cables can provide power, data transfer, or other control signals. High pressure hydraulic lines are often used in industrial applications, and they are usually composed of steel piping that is connected with joints such as flanges. Tubing encapsulated conductors are specialized cables that are designed to operate in a hazardous environment while still maintaining reliable transmission of data or power signals. Intelligent well completions involve the use of computer-controlled equipment that is embedded in oil wells for better operation and tracking of various parameters. Finally, capillary tubing is used in different applications, including medical diagnostics, environmental protection systems, and automotive systems.



Meilong Tube provides custom chemical injection line and control line tubing solutions with Nickel Alloy Tubing. Our Nickel Alloy Tubing is certified to ISO9001 standards, and is subject to strict quality control measures. We have a minimum order quantity of 1 coil and a delivery time of 7 days. We accept payment via T/T or L/C, and supply up to 150 metric tons per month. Our Nickel Alloy Tubing is 100% length eddy current tested, and is cold drawn to ensure superior strength and durability. We use orbital welds to create continuous lengths without orbital welds, and our pressure rate is above 10000 Psi. We adhere to ASTM B704, ASTM B423 and ASTM B444 standards.


Support and Services:

We provide technical support and service for Nickel Alloy Tubing. Our services include, but are not limited to:

  • Consultation and advice on material selection, manufacturing process, and design
  • Fabrication and assembly of components
  • Testing of welds and joints
  • Inspection of finished products
  • Installation and maintenance support

Packing and Shipping:

Nickel Alloy Tubing Packaging and Shipping:

The Nickel Alloy Tubing will be carefully packed in strong and durable cardboard boxes. These boxes will be marked with the product name, item number, quantity, and the customer's address. The boxes will be further wrapped in shrink-wrap to ensure that the products remain secure during the shipping process. The Nickel Alloy Tubing will be shipped using a reputable courier service to provide a timely delivery.
