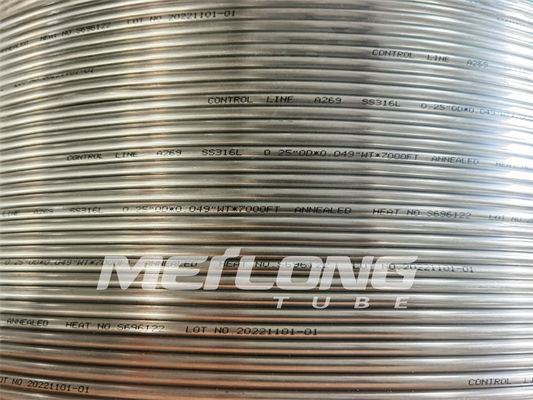

Annealed Stainless Steel Hydraulic Control Line with High Tensile Strength
Product Description:
Meilong Tube has taken multiple initiatives to bring technological advancements to the industry, a prime example being raised length for tubing fabricated without the help of orbital welds. Additionally, Tube Encapsulated Conductors (TEC) were also introduced by our company to the oil and gas industry.
To deliver superb equipment and exceptional customer care, Meilong Tube has assembled a highly capable management team with remarkable industry expertise. Representing a combined vast experience in the tube production and customer service field, these professionals guarantee that our clients obtain personalized outstanding quality solutions to all their tubing requirements.
The ambition of Meilong Tube is to, if not exceed, then at least reach the expectations of our customers in regards to product caliber, business conduct, and the diligence of the support staff. Our customer's gratification is our utmost priority here at Meilong Tube, and always will be.
Features:
Our hydraulic control line technology is free from orbital welds. Thanks to improved completions, we no longer need to rely on mill-produced coils.
We use Tungsten Inert Gas (TIG) and laser beam welding machines to achieve a highly repeatable weld with superior quality. With the combination of our welding machines with cold-drawing machines, we are able to achieve OD sizes from 1/8” – 1” and wall thicknesses from 0.028” -0.095”.
Common alloys for our tubing products that we work with are 316L, Duplex 2205, Super Duplex 2507, Incoloy 825, and Inconel 625.
Technical Parameters:
Seamless & Floating Internal Plug Redrawn Tubing
This type of tubing, which comes in an annealed condition and in continuous length without orbital joint welds, is engineered using Duplex 2205 UNS S32205. It is designed to adhere to the following specifications for O.D., W.T., Working Pressure, Burst Pressure, Collapse Pressure and Test Pressure:
| Alloy | UNS | O.D. | W.T. | Working Pressure | Burst Pressure | Collapse Pressure | Test Pressure |
|---|
| Duplex 2205 | S32205 | 1/8 | 0.125 | 0.028 | 15,544 | 41,704 | 15,544 |
| Duplex 2205 | S32205 | 1/8 | 0.125 | 0.035 | 19,430 | 52,130 | 19,430 |
| Duplex 2205 | S32205 | 1/4 | 0.250 | 0.035 | 9,715 | 26,065 | 9,715 |
| Duplex 2205 | S32205 | 1/4 | 0.250 | 0.049 | 13,631 | 31,784 | 12,821 |
| Duplex 2205 | S32205 | 1/4 | 0.250 | 0.065 | 18,076 | 40,182 | 15,824 |
| Duplex 2205 | S32205 | 3/8 | 0.375 | 0.035 | 6,492 | 22,226 | 6,786 |
| Duplex 2205 | S32205 | 3/8 | 0.375 | 0.049 | 9,082 | 25,230 | 9,156 |
| Duplex 2205 | S32205 | 3/8 | 0.375 | 0.065 | 12,056 | 29,302 | 11,629 |
| Duplex 2205 | S32205 | 3/8 | 0.375 | 0.083 | 15,382 | 34,858 | 14,087 |
| Duplex 2205 | S32205 | 1/2 | 0.500 | 0.049 | 6,815 | 22,574 | 7,095 |
| Duplex 2205 | S32205 | 1/2 | 0.500 | 0.065 | 9,038 | 25,172 | 9,126 |
| Duplex 2205 | S32205 | 1/2 | 0.500 | 0.083 | 11,540 | 28,536 | 11,217 |
| Duplex 2205 | S32205 | 5/8 | 0.625 | 0.049 | 5,446 | 21,147 | 5,785 |
| Duplex 2205 | S32205 | 5/8 | 0.625 | 0.065 | 7,213 | 23,038 | 7,492 |
| Duplex 2205 | S32205 | 5/8 | 0.625 | 0.083 | 9,229 | 31,216 | 9,288 |
| Duplex2205 | S32205 | 3/4 | 0.750 | 0.049 | 4,534 | 20,265 | 4,887 |
| Duplex 2205 | S32205 | 3/4 | 0.750 | 0.065 | 6,020 | 21,738 | 6,344 |
| Duplex 2205 | S32205 | 3/4 | 0.750 | 0.083 | 7,684 | 23,560 | 7,919 |
The theoretical burst and collapse pressure is calculated based on the minimum wall thickness and minimum tensile and yield strength. The pressure rating is calculated at 100° F (38°C), under neutral and static conditions.
Applications:

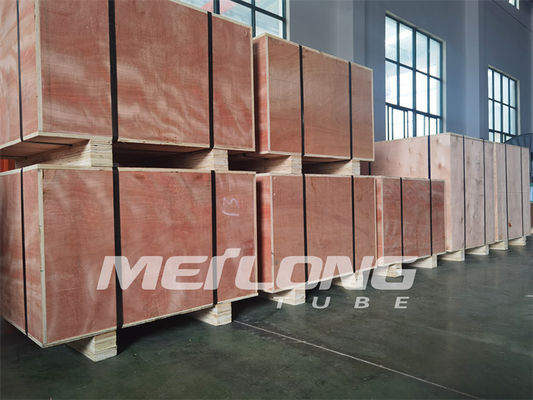

Meilong Tube's High Yield Hydraulic Control Line is designed for down hole applications in the oil and gas industry. This Nickel Alloy Hydraulic Control Line is constructed with High Tensile Strength and features a Ferrule Fitting connection type with a highly clean and bright surface, meeting the ASTM A789 standard. With a minimum order quantity of 1 coil and a packaging delivery of wooden cases, this product can be shipped within 7 days upon payment with T/T or L/C. Meilong Tube is ISO9001 certified and has a monthly supply capability of 150 metric tons.
Customization:
Our Hydraulic Control Line is manufactured with the highest quality standards, and it is available in different sizes and materials, including 316L, Nickel Alloy, and Incoloy 825. It features tight dimensional tolerances, extremely high pressure, and is suitable for down hole application in oil and gas industry.

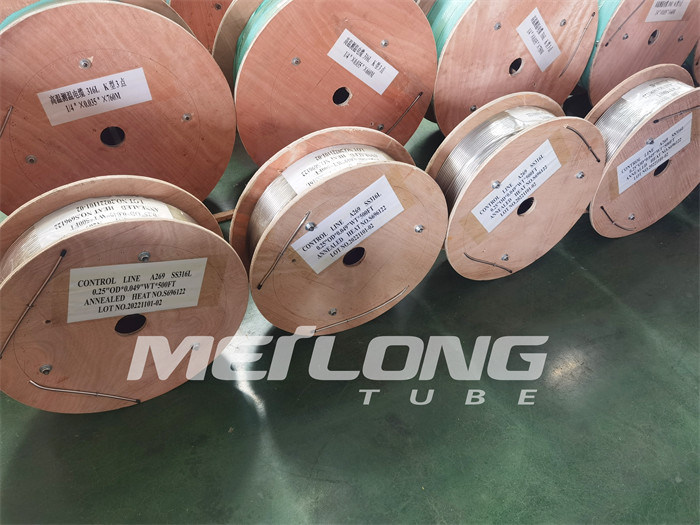

Our Hydraulic Control Line is provided with ISO9001 certification, and its size is 1/4''OD x 0.065''WT. The minimum order quantity is 1 coil, and it is packed in a wooden case. We are able to provide 150 metric tons of Hydraulic Control Line per month, and we guarantee a 7-days delivery time. We accept T/T and L/C payments, and each coil is 100% length is hydraulic tested.
Support and Services:
Hydraulic Control Line Technical Support and Service
Our technical support team is available 24/7 to provide you with expert advice and assistance. Our team is experienced in hydraulic control line systems, so you can be sure to get the best solution for your needs. We can provide you with timely and accurate troubleshooting, maintenance and repair services. Our team can also assist you with installation, upgrades and training.
Our services include:
- On-site technical support
- Telephone and email support
- Troubleshooting and diagnostics
- Regular maintenance and repair
- Installation and upgrades
- Training and documentation
We are committed to providing you with the highest quality customer service and technical support. If you have any questions or concerns, please do not hesitate to contact us.
