1/8 High Pressure Control Line Tubing For Oil And Gas Industry

Certification
China Suzhou Meilong Tube Co., Ltd. certification
I'm Online Chat Now

1/8 High Pressure Control Line Tubing For Oil And Gas Industry

1/8 High Pressure Control Line Tubing For Oil And Gas Industry
1/8 High Pressure Control Line Tubing For Oil And Gas Industry 1/8 High Pressure Control Line Tubing For Oil And Gas Industry 1/8 High Pressure Control Line Tubing For Oil And Gas Industry

Large Image :  1/8 High Pressure Control Line Tubing For Oil And Gas Industry

Product Details:
Place of Origin: China
Brand Name: Meilong Tube
Certification: ISO9001
Model Number: 1/4''OD x 0.065''WT
Payment & Shipping Terms:
Minimum Order Quantity: 1 coil

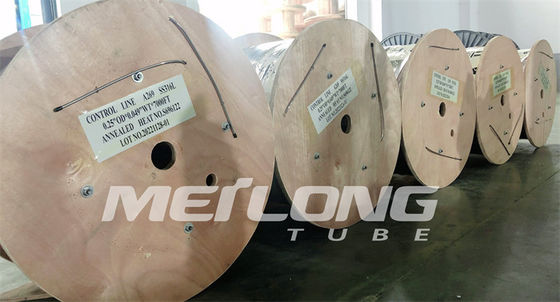

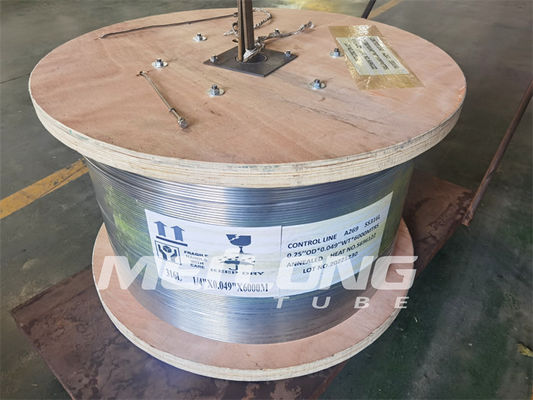

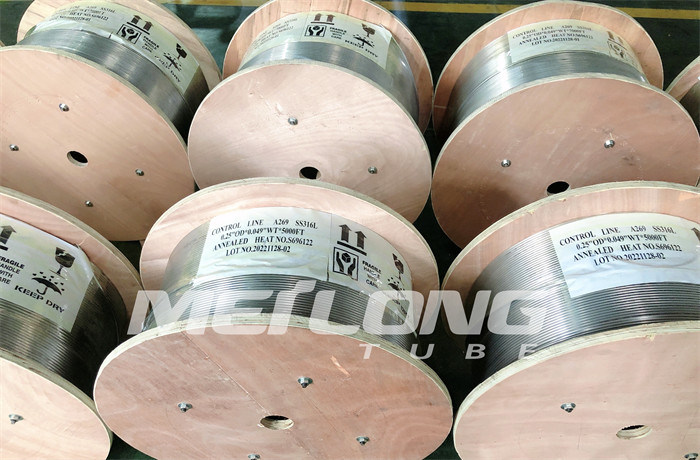

Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month

1/8 High Pressure Control Line Tubing For Oil And Gas Industry

Description
Connection Type: Ferrule Fittings Condition: Annealing
Material: Stainless Steel Surface: High Clean And Bright
Feature: High Tensile Strength Application: Down Hole Application In Oil And Gas Industry
Standard: ASTM A269 Test: 100% Length Is Hydrostatic Tested
High Light:

1/8 Control Line Tubing

,

High Pressure Control Line Tubing

,

stainless coil tubing For Oil Industry

Extremely High Pressure Control Line Tubing for Down Hole Application in Oil and Gas Industry

Product Description:

Meilong Tube's downhole control lines are mainly used as conduits for communicating hydraulic-driven downhole devices that can function in oil, gas, and water-injection wells, and that need to be able to withstand harsh conditions. Such lines can be adjusted to different types of application and downhole elements, and the specification of the material for these lines has to meet several criteria, like bottomhole temperature, hardness, stretching and tearing force, gas permeability, oxidation resistance, and immunity to abrasion and chemical hazard.
These control lines have been subject to meticulous development attempts, through the implementation of experiments such as crush testing and mimics of high-pressure autoclaves. During the laboratory crush tests, the functionality has shown to keep steady during greater stress, especially when using "bumper wires" of steel fiber strands.



Features:

Our Control lines come in orbital-weld-free lengths up to 40,000 ft (12,192 m), ultimately ensuring maximum reliability. We offer a vast range of single, dual, or triple flat-packs for various applications. Plus, our Flat-packs can be combined with downhole electrical cables and/or bumper wires for a smoother operation and handling during deployment.
Moreover, the welded-and-plug-drawn production method guarantees an even, round tube to ultimately allow long-term metal sealing of terminations. In addition, to maximize efficiency, the encapsulation materials we use are meticulously chosen to suit well conditions, thus granting both longevity and reliability.



Technical Parameters:

The seamless and floating internal plug redrawn tubing comes in the annealed condition. It is supplied in continuous length without orbital joint welds. The theoretical burst pressure is based on minimum wall thickness, and minimum tensile strength. The theoretical collapse is determined by the minimum wall thickness, as well as the minimum yield strength.
The following table further details the pressure rating at 100°F (38°C), neutral and static conditions:

AlloyUNSO.D.W.T.Working PressureBurst PressureCollapse PressureTest Pressure
Stainless 316LS316031/80.1250.0289,93140,9229,525
Stainless 316LS316031/80.1250.03512,64052,04211,056
Stainless 316LS316031/40.2500.0355,93924,4746,621
Stainless 316LS316031/40.2500.0498,57235,3228,632
Stainless 316LS316031/40.2500.06511,69448,16610,562
Stainless 316LS316033/80.3750.0353,81815,7314,659
Stainless 316LS316033/80.3750.0495,48322,5756,222
Stainless 316LS316033/80.3750.0657,51730,9517,865
Stainless 316LS316033/80.3750.0839,80840,3729,551
Stainless 316LS316031/20.5000.0494,00316,4804,835
Stainless 316LS316031/20.5000.0655,46122,5126,206
Stainless 316LS316031/20.5000.0837,13329,3647,648
Stainless 316LS316035/80.6250.0493,14412,9553,957
Stainless 316LS316035/80.6250.0654,28517,6305,105
Stainless 316LS316035/80.6250.0835,47222,5136,519
Stainless 316LS316033/40.7500.0492,61910,7913,296
Stainless 316LS316033/40.7500.0653,57014,6864,283
Stainless 316LS316033/40.7500.0834,55818,7535,431

The pressure ratings of various products are required to guarantee their function and safety. Ideal product standards are essential.



Applications:

Meilong Tube's Control Line Tubing is a highly reliable product, certified with ISO9001 and designed to handle extremely high pressure. With tight dimensional tolerances and a high clean and bright surface, this product features ferrule fittings and a length of up to 12000 meters. It comes with a wooden case, and ordering at least one coil is necessary. With a delivery time of only 7 days and payment terms of T/T or L/C, it is also available in 150 metric tons per month. Therefore, Control Line Tubing from Meilong Tube is the perfect choice for your needs.



Customization:

Control Line Tubing

Brand Name: Meilong Tube
Model Number: 1/4''OD x 0.065''WT
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1 coil
Packaging Details: Wooden case
Delivery Time: In 7 days
Payment Terms: T/T, L/C
Supply Ability: 150 metric tons per month
Application: Down Hole Application In Oil And Gas Industry
Material: Stainless Steel
Size: Tight Dimensijonal Tolerances
Pressure range: Extremely High Pressure
Feature: High Tensile Strength
Control Line Tubing is designed for use in the down hole application in oil and gas industry. It is made of high-quality stainless steel with tight dimensional tolerances. The pressure range is extremely high and the tensile strength is high. It is certified by ISO9001 and can be supplied up to 150 metric tons per month. The minimum order quantity is 1 coil and it can be delivered within 7 days. The packaging details are wooden case.



Support and Services:

Control Line Tubing Technical Support and Service

We provide comprehensive technical support and service for our Control Line Tubing products. Our team of experts are available to provide you with guidance and advice on the best practices for using our products and troubleshooting any issues you may have. Our technical support staff are also available to answer any questions you may have about our products.
We also offer a full range of maintenance and repair services for all of our Control Line Tubing products. From routine maintenance to comprehensive repairs, our knowledgeable technicians are here to ensure your products are functioning correctly and efficiently. We strive to provide you with the highest quality service and support possible.
